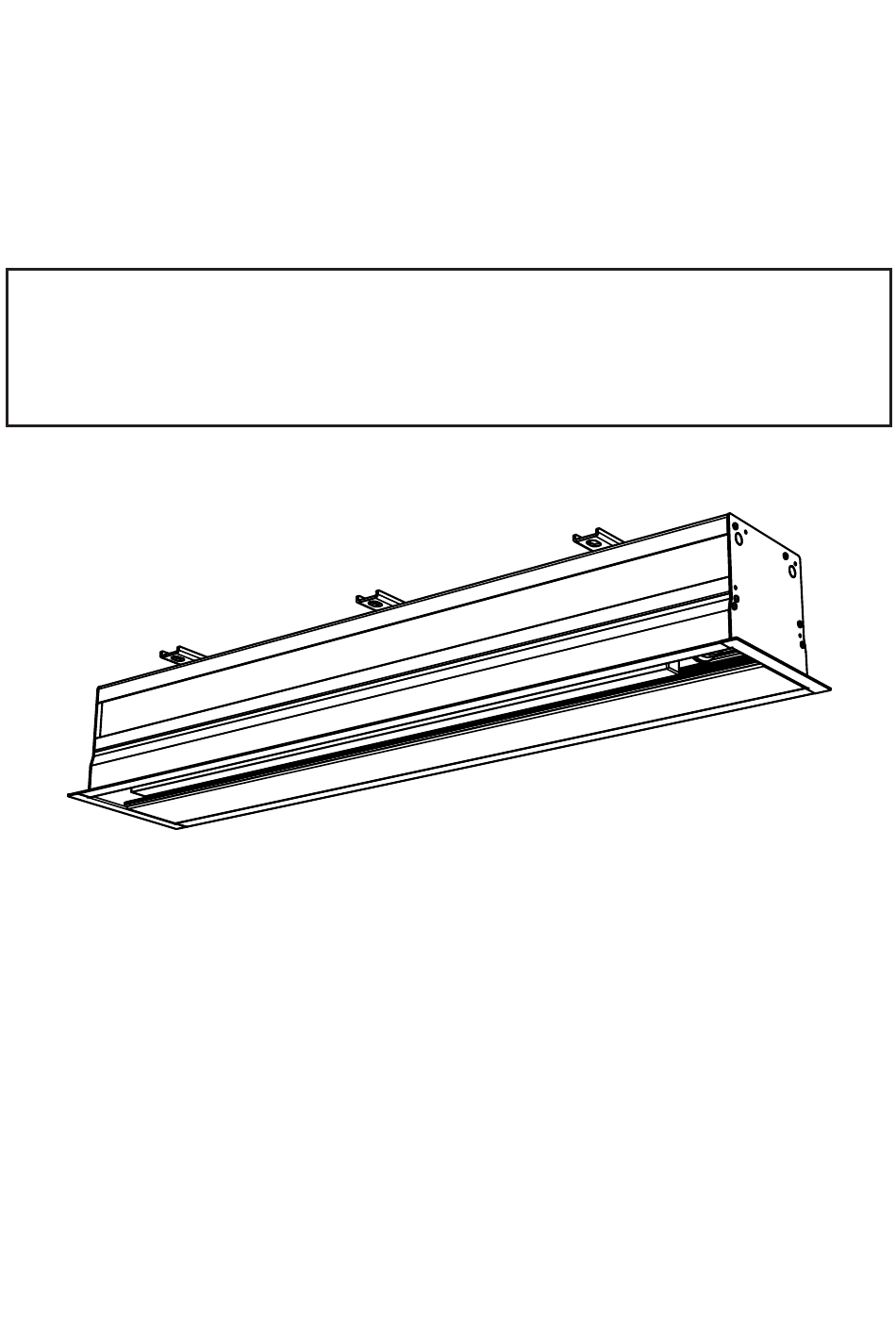

- Page 1 04 nov 2015, 14:11 Freja Designed by Checked by Approved by Martin Mellerhav Made in Sweden...
- Page 2 Please read through the manual completely before installation and usage. Tack för att ni valt en Euroscreen som en del i er AV-installation. Vi ® hoppas den kan ge er många timmar av underhållning och/eller utbildning, beroende på...
- Page 3 For the warranty to remain valid from draper Europe the motors has to be installed and controlled cor- rectly. To ensure this we recommend the use of the ”Euroscreen Control Box” (Art. 210730). If independent relay boxes are used it will be the installers responsibility to ensure that the following...
- Page 4 Assembly / Montering EN: The Euroscreen ® Freja case is intended to be mounted in the ceiling with threaded rod (has to be ordered seperately). Keep the screen horizontal at all times during transport and installation. The case is prepared with at least six fastening points (see fig1).
- Page 5 Adjusting the limits / Ställa gränslägen EN: The following applies when the motor is mounted to the left from the audience perspective (standard). The screen is set at its outer limits when delivered. The upper limit shall never be set higher and the down limit never be set lower.
- Page 6 Removing the lid / Ta bort locket The construction of the lid’s locking mechanism is shown in fig 6 - 8. There is one locking plate at each end of the lid. The locking plate is slightly spring loaded and needs to be pressed down to be moved.
- Page 7 ning Tensioning / Trådspän EN: To keep the surface flat you may need to adjust the tensioning as the surface will change with time and temperature. This is done with the tensioning screw marked in fig 9. It is adjustable with 1/6 turn increments. Only adjust it in a single increment at a time! 1.
- Page 8 Conformity of regulations ® Draper Europe AB manufactures AV equipment within the brand Euroscreen . These products are controlled and certified by the below listed regulations. REACH Registration, evaluation, authorisation and limitation of chemicals. Regulation (EC) No 1907/2006 of the European Parliament and of the European Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).
