Euroscreen Connect C1520 Dimension Manual

Connect
Surface
The screen fabric has a matt
white surface which provides
a 180º viewing angle.
Available Formats
Nordic Format, height>width,
H>W
with extra height that gives
additional flexibility. No black
NORDIC
borders.
The screen format is 1:1. No
1 : 1
black borders.
SQUARE
The screen has 5 cm wide
4 : 3
black borders. The format of
VIDEO
the viewing area is 4:3.
The screen has 5 cm wide
16 : 9
black borders. The format of
WIDE
the viewing area is 16:9.
Connect is a basic compact screen which is very easy to install. The case is made
of steel and painted white. It can be mounted either on the wall or in the ceiling
and is attached to the wall/ceiling with one screw at each end of the case. The
screen is operated manually.

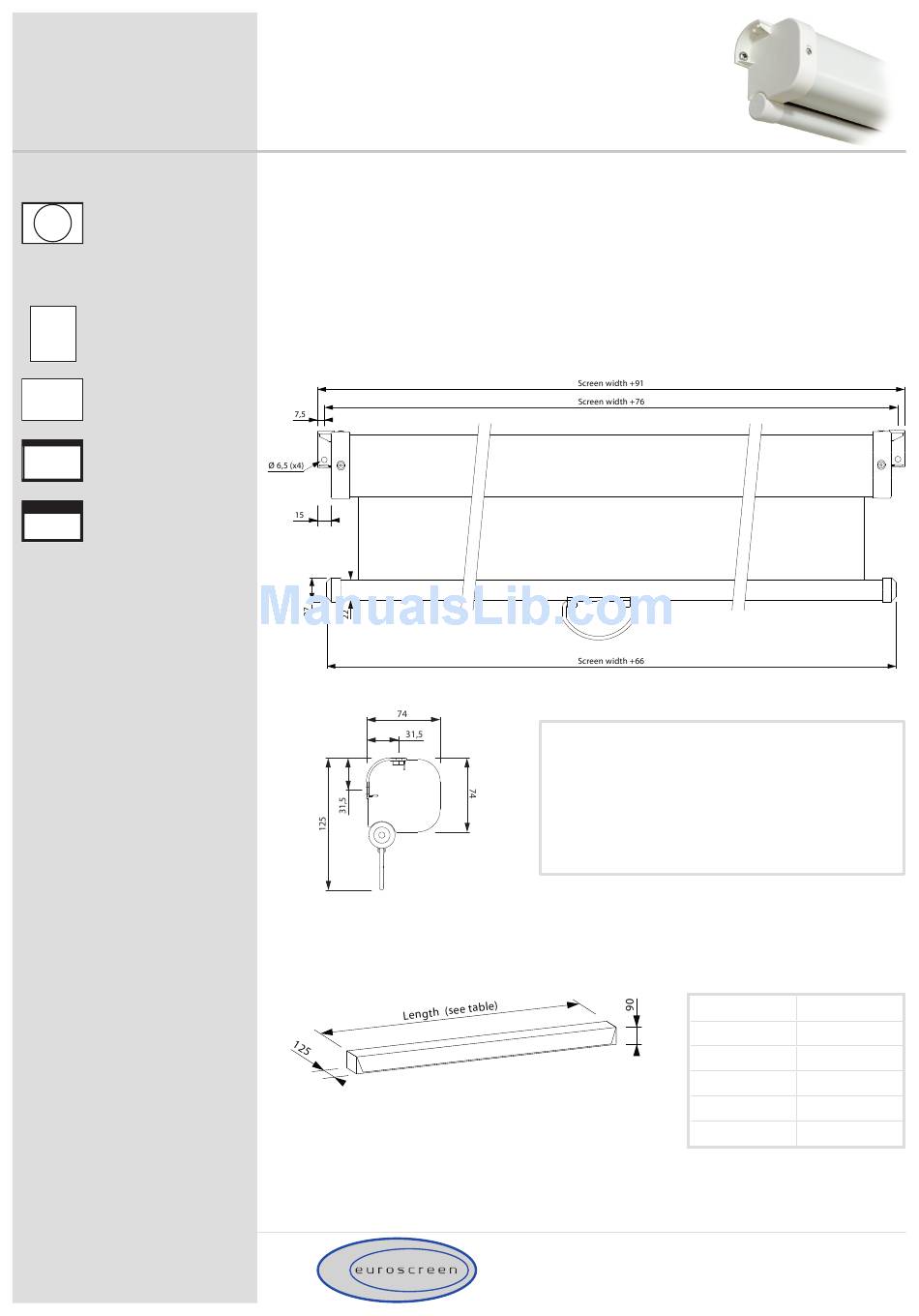

Screen Dimensions
Packaging Dimensions
All dimensions in this document are in mm
Example – Connect Dimensions
Model: C2217-V
Screen width: 2200mm
Total width: 2200mm + 91mm = 2291mm
Width between mounting holes:
2200mm + 76mm = 2276mm
Bar width: 2200mm + 66mm = 2266mm
Bjurab Sweden AB
Kristinebergsvägen 22
®
SE-302 41 Halmstad
Sweden
Screen width Box length
1250 1440
1400 & 1500 1690
1600 1890
1800 & 2000 2190
2200 & 2400 2590
