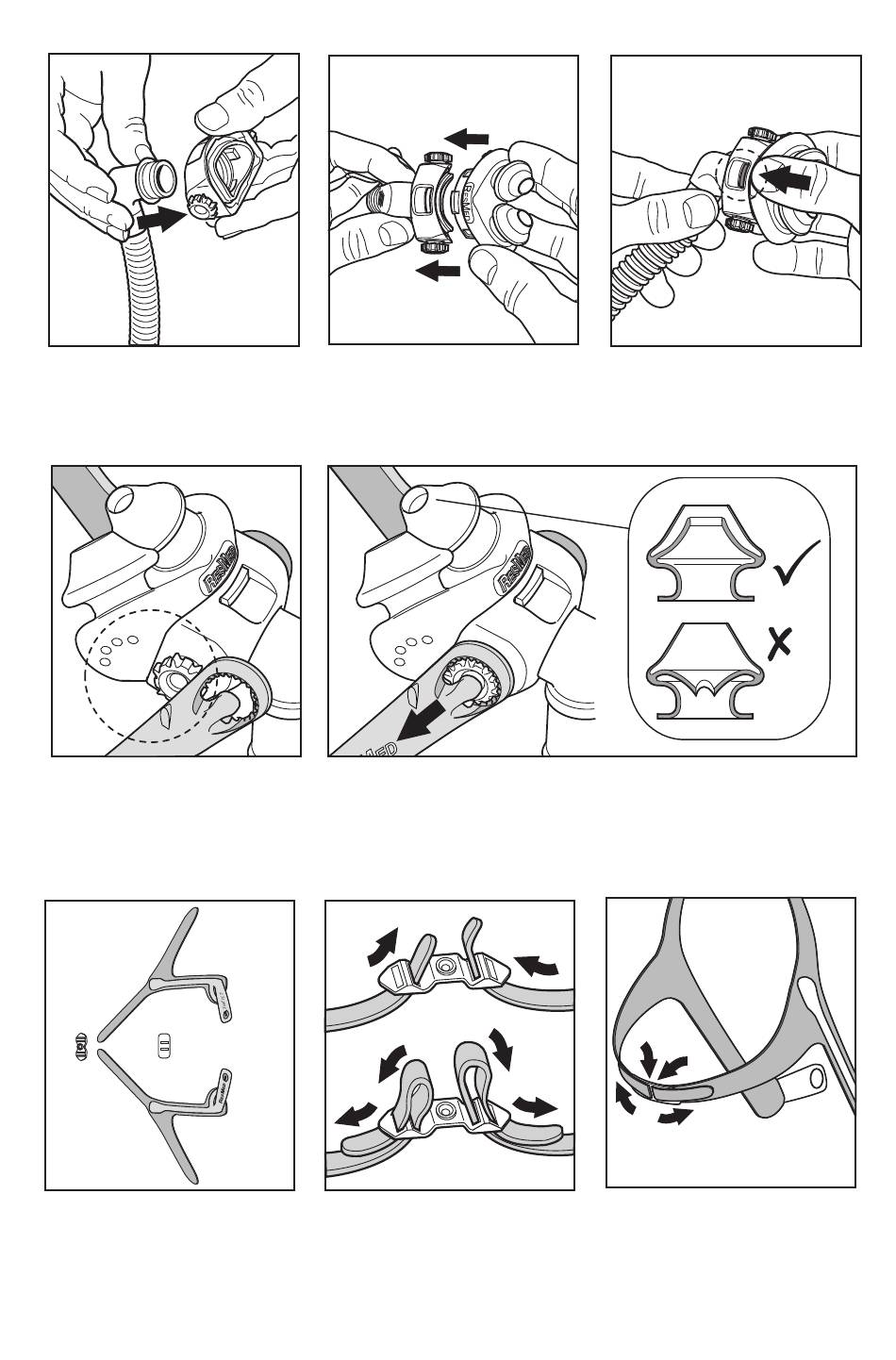

Reassembling your Swift LT
1
Insert elbow into frame.
4
Check positioning markers
on pillows and headgear
are on the same side.

Reassembling the headgear

Lay out the headgear as
shown, writing facing
upwards.
2
Align pillows with frame.
5
Slide left and right headgear stability arms onto frame.
Ensure inner wall of pillows is in correct position.
If not, squeeze pillow sides to release inner walls.
A
B
(A) Thread the top straps
through the top buckle,
then (B) back over to
secure.
6
3
Push pillows firmly into
frame. Ensure top and
bottom retention tabs slot
into place.
A
B
(A) Thread both backstraps
through the back buckle
(Velcro™ facing outwards),
then (B) fold back over to
secure.
