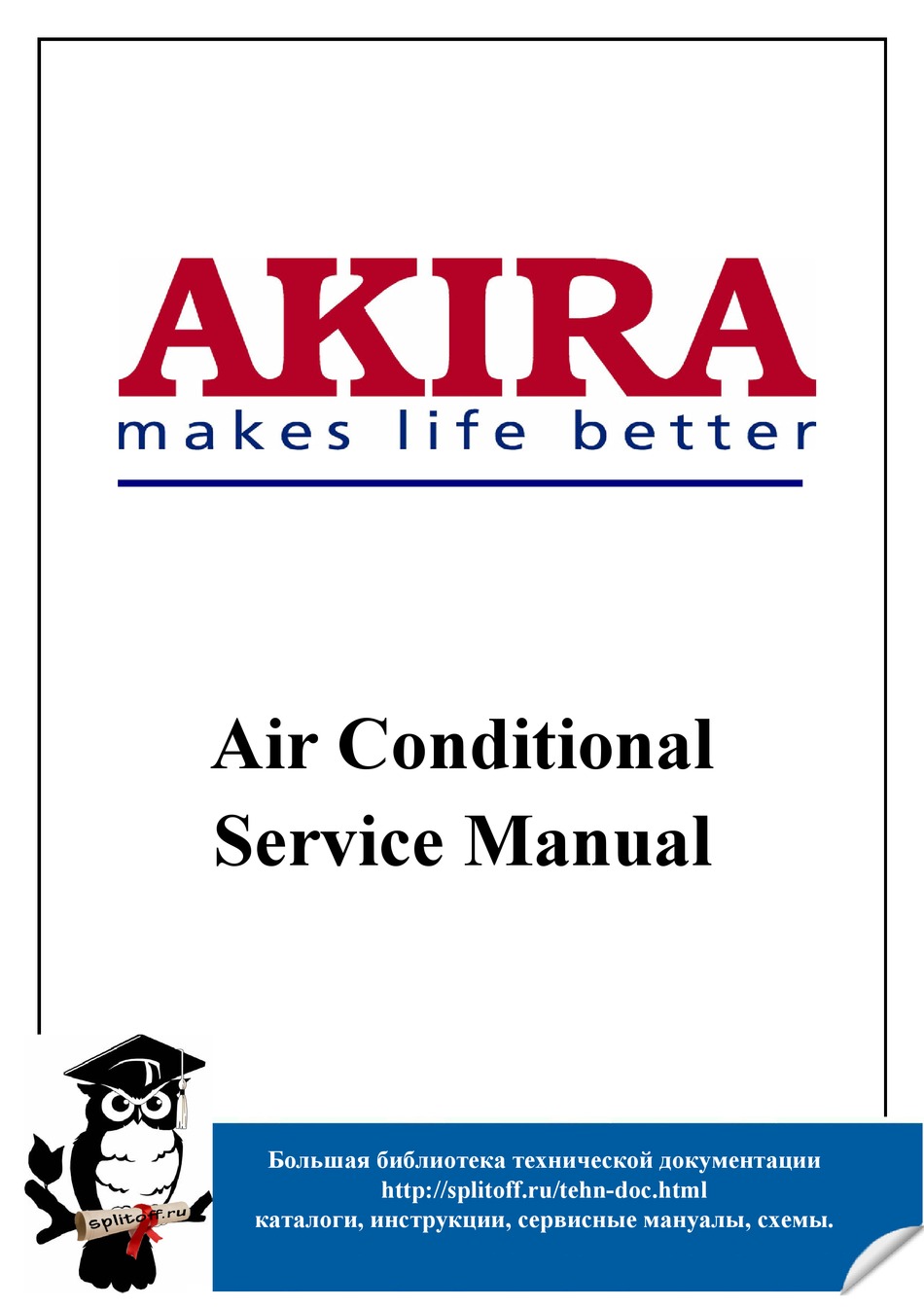

- Page 1 Air Conditional Service Manual http://splitoff.ru/tehn-doc.html...
- Page 2 Model: AC-FR30HK Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS........................... 4 FUNCTION DETAILS..........................6 EXPLODED VIEW & PART LIST......................14 REFRIGERATION DIAGRAM......................18 WIRING DIAGRAM ..........................19 Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 4: Specifications
Evaporator Copper and Aluminum Fin Condenser Copper and Aluminum Fin Features LCD Wireless Remote Controller LCD Display Washable Filter 24 Hours Timer 3 Speed Control Vertical Auto Swing Louver Horizontal Auto Swing Louver Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 5 Outdoor Unit 832x702x380 Net Weight (Kg) Indoor Unit Outdoor Unit Packing Dimensions Indoor Unit 660x1890x420 WxHxD(mm) Outdoor Unit 980x780x420 Gross Weight (Kg) Indoor Unit Outdoor Unit Loading Capacity (40’/40’ HC) 72/80 Approvals CCEE Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 6: Function Details
Swing/Lock button for 5 seconds and buzzer sounds once. Note: LOCK function only for E-type floor standing 4. MODE button A/C operates according to the following circle while pressing this button : Cool Heat(only for heat pump type) Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 7 In this mode, temperature and fan speed are automatically set based on the actual room temperature. Operation mode and temperature are determined by indoor temperature according to the following table: Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 8 Press it once, the vertical adjustment Uncomfortable louver swings to change vertical airflow because of direction. Press it again, swings stops. unsuitable flow For horizontal airflow direction, please direction. refer to the previous page for details. Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 9 5 seconds delay for starting electrical heater. If electrical heater pauses because indoor pipe temperature is more than 48℃, it starts again only while indoor pipe is below 43℃. Cold wind prevention is canceled automatically after electrical heater start. Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 10 48℃, the system retreats from overheat protection and operates normally. If indoor pipe temperature is over 63℃ when A/C operates for 1 minutes in heat mode, buzzer sounds 4 times, LCD displays protection code E2 Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 11 26℃ automatically. The compressor operates according to the following chart: Temperature drop Compressor on Set temperature+1℃ Compressor off Compressor on Set temperature-1℃ Compressor off Temperature rise Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 12 If indoor pipe temperature is below 48℃, the system retreats from overheating protection and operates normally. If indoor pipe temperature is over 63℃ when A/C operates for 1 minutes in heat mode, buzzer sounds 4 times and A/C stalls. Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 13 Set temperature-2℃ Low fan Set temperature-3℃ High fan High fan Temperature rise 4. FAN MODE Indoor fan motor operates according to setting mode, airflow direction can be adjusted, compressor and outdoor fan motor stall. Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 14: Exploded View & Part List
EXPLODED VIEW AND PART LIST INDOOR UNIT Model No: AC-FR30HK : http://splitoff.ru/tehn-doc.html Version 1.0... - Page 15 Evaporator deferent pipe 81303857 Volute 1007122 Fan motor 1402282 Electrical heater assembly 814047 Centrifugal fan 1402155 Air inpour annulus 13031108 Air filter 12043006 Filter left retainer 11023012 Filter right retainer 11023013 Nether panel 1006547 Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 16 OUTDOOR UNIT Model No: AC-FR30HK : http://splitoff.ru/tehn-doc.html Version 1.0...
- Page 17 Terminal cover 2109236 Compressor (GD Toshiba) 1304340 Capillary assembly 81303787 4- valve assembly 81303530 Inspiratory pipe assembly 81303290 Liquid outlet pipe 813035 Transition pipe 13033038 3-valve assembly 8130914 2-valve assembly 8130918 Compressor capacitor 14113044 Clapboard 12033035 Model No: AC-FR30HK Version 1.0...
-
Page 18: Refrigeration Diagram
Compressor Indoor fan motor R22 filter Capillary 2-way valve Capillary R22 connector R22 connecting pipe One way check valve Outdoor unit Indoor unit R22 flowing direction at cooling R22 flowing direction at heating Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 19: Wiring Diagram
WIRING DIAGRAM Indoor Unit Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 20 Outdoor Unit Model No: AC-FR30HK Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 21 http://splitoff.ru/tehn-doc.html...
