Summary of Contents for akira AC-F30HG
-

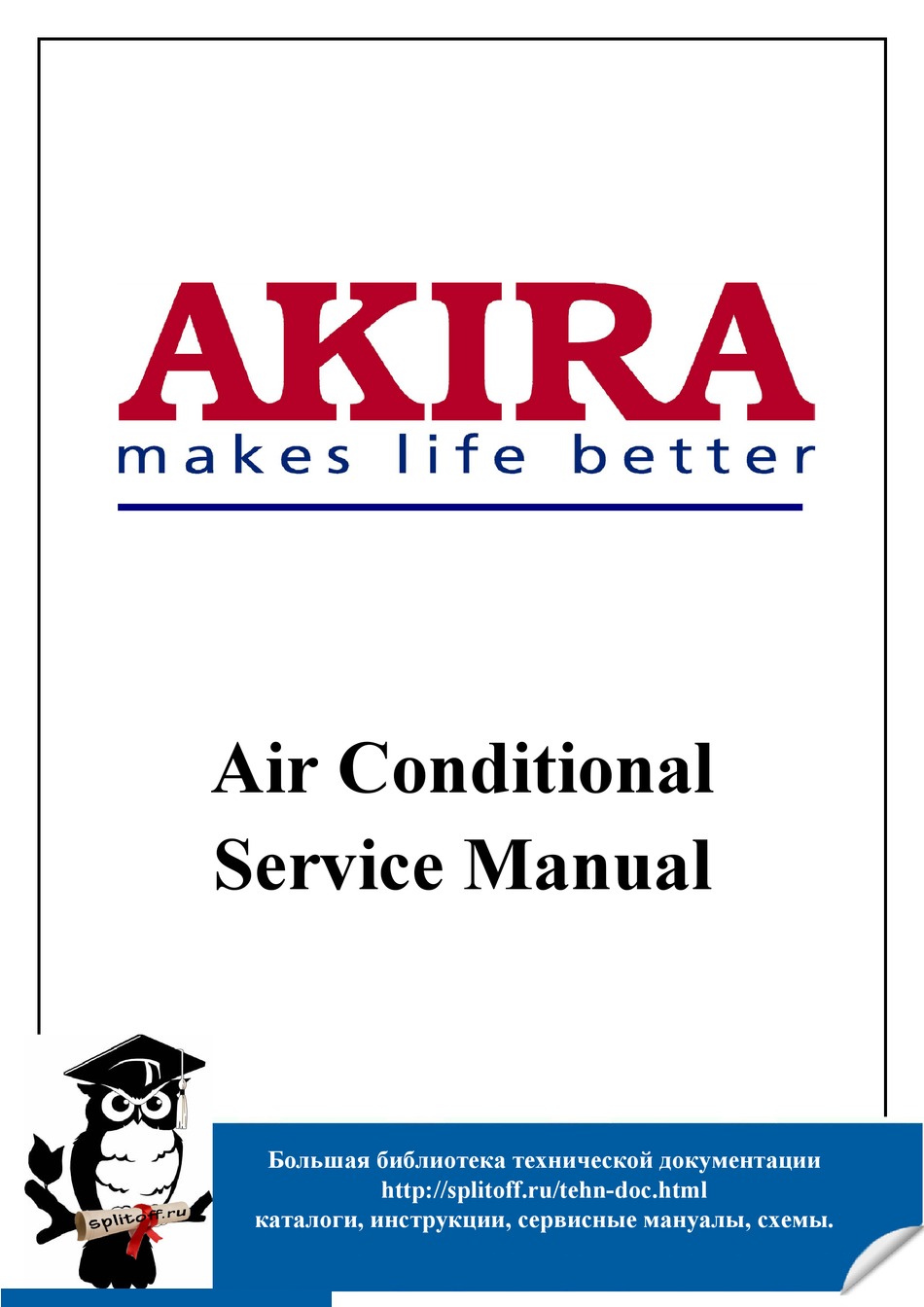

Page 1: Service Manual
Air Conditional Service Manual http://splitoff.ru/tehn-doc.html... - Page 2 Model: AC-F30HG Model No:AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS ........................... 4 OUTLINE & DIMENSIONS......................6 EXPLODED VIEW & PART LIST ....................8 INSTALLATION GUIDE....................... 13 CIRCUIT DIAGRAM........................28 PCB FUNCTION MANUAL ......................29 Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 4: Specifications
Working area (mm x mm) 763 x 430 Swing motor SM016 Input power (W) speed (r/min) Fuse (A) Controllor 3.15A Transformer 0.2A Noise (dB(A)) Dimension (width-depth-height)mm 540 x 300 x 1750 Net weight (kg) Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 5 Noise dB(A) Dimension (mm) (Width-height-depth) 950 x 840 x 412 Net weight (Kg) Refrigerant charge (kg) R22 2.5 Outer diameter Liquid pipe Φ 3/8” Gas pipe Φ 5/8” Standard length Max distance Height Length Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 6: Outline & Dimensions
Left side Rear side Front Right knock-out hole Grille Controller Front panel Filter Air intake grille Gas pipe Liquid pipe Drainage hose Left knock-out hole Rear right knock-out hole Rear left knock-out hole Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 7: Outline And Dimensions
OUTLINE AND DIMENSIONS OUTDOOR UNIT Handle Gas valve assy Wire hole Liquid valve assy Grille Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 8: Exploded View & Part List
EXPLOSIVE VIEW AND PARTS LIST INDOOR PANEL Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 9 Drainage Pipe 05235433 Breakwater 01364210 Water Tray Support 01274210 Assistant Heater Assy 32004202 Temperature Limiter 65 46010505 Fuse 99 10A 46010355 Fuse 98 (G4A01098C) 46010302 Electric Heater 850W 32014007 Electric Box Assy 01404211 Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 10 Light Picture Plastic Pipe 05230022 Remote Controler Y512 Power Cable 40020290 Connect Cable 40020419 Power Cable Signal 40032147 Signal 40032139 Room Sensor Tube Sensor 4 Core Sensor 39000171 17 Core Connect cable 40030056 Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 11: Outdoor Unit
OUTDOOR UNIT Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 12 AC Contactor 3TF4211 44010205 3TF4111-1RMO Terminal Board T6C0A 42011230 Over Current Protector 46020108 UO-10-9.0A AC Relay VC15-3A1B- 44020305 AC220 Velometer 30117001 Motor Support 01705252 Motor LW60B 15015205 Axial Flow Fan 10335253 Room Sensor 39000219 Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 13: Installation Guide
Make sure the suspension bolt pitch can hold 4 times of the indoor units’s weight, otherwise, you should strengthen the suspension bolt pitch. Note: Keep enough distance from the kitchen. The appliance shall not install in the laundry. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 14 Ceiling opening and suspension bolt (M10) pitch dimension. Note Installation is possible with a ceiling dimension of 890 (marked with * can be 910), but the ceiling-panel overlapping dimension must be 20mm or more. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 15: Indoor Unit Installation
Remove the washer fixing plate used for preventing the washer from falling and tighten the upper nut. Remove the paper pad for installation Warning: Tighten the nut to prevent the unit from falling. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 16 70 ~ 75N.m KF(R)-120TW/B Add 30g The maximum length for refrigerant piping is 25 meters, when the length exceeds 10 meters, you should charge additional (refrigerant as shown in following for per-meter added). Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 17 Install the drainage-raising pipe at a height of less than 280 mm. Install the drainage-raising pipe at a right angle to the indoor unit and no more than 300 mm from the unit. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 18 When electric wiring is finished, check drainage flow during cooling operation. Method of adding water Warning: Before obtaining access to terminals, all supply circuits must be disconnected. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 19 After wiring, tighten it with clamp and fix the control box lid (1),(2). • Heating and cooling connect the rubber wire (5-cords) to the power supply terminal board in properly. • Cooling connect the rubber wire (3-cords) to the power supply terminal board properly. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 20 Adjust the panel by turning it to the arrowed direction in Fig.4 so that the ceiling opening is completely covered. Tighten the screws until the thickness of the sealing material between the panel and the indoor unit body is reduced to 5 8 mm. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 21 (Fig.4) Precautions Improper screwing of the screws may cause the troubles shown in Fig.5. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 22 After fixing, be sure no gap left between the ceiling and the panel. Wiring of the decoration panel. Connect the joints for swing flap motor lead wire (at 2 places) installed on the panel (Refer to Fig.7). Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 23: Selecting Installation Site
When the air conditioner is heating or defrosting, drain water of the outdoor unit to an appropriate place with the drain hose. Fixing method: Fix the outdoor drainage hose head in the hole of the chassis, then connect the drainage hose with the mouth of drainage pipe. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 24: Connecting The Pipe
Break through the hole for wires and put on rubber bush. Pull all wires through the rubber bush. Connect the outdoor unit according to the “WIRING DIAGAM” of outdoor unit.Make sure to wire firmly. Tighten the wires with clamp and clasp. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 25 For cooling/heating type: Connect the rubber wire (5-cords ) to the power supply terminal coard (5p) properly. Connect the other wires properly. Do not pull the wire when fixing it with wire clamp and clasp. Do not let the wire too loose in the outdoor unit. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 26: Test Operation
On stopping you can press the “AUTO” button on cover NO until it is in “AUTO” mode. The air conditioner select from COOL, HEAT, DRY, FAN modes automatically. ii. On operating, press the “AUTO” button, the air conditioner will stop. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 27 Volume of refrigerant charge in the system is not clear. additional refrigerant charge been made? Note to the installer Be sure to instruct the customer how to operate the system and show him/her the attached operation manual. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 28: Circuit Diagram
CIRCUIT DIAGRAM Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 29: Pcb Function Manual
The condenser temperature of the outdoor unit (shorten form is T The ambient temperature of the outdoor unit (shorten form is T The temperature of gas output from the compressor (shorten form is T output Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 30 C, keep running the old mode; In the heating mode, the range of T is 16 C ~30 In the heating mode, the valve will be electroless in 2 min after the unit is turned off. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 31 When the indoor unit is stop or runs in low speed or compressor in stop, or T C, or T in ≥ C, or T C, the electrical heater stop and will restart after 2min. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 32 The unit is run when timer for turn off is acted, the unit is stop, when it is time to turn off. The distance of setting twice is 0.5hour, and the range time is 0.5~24 hour. Model No: AC-F30HG Version 1.0...
-
Page 33: Other Function
10 min, and detect T ≥ C, running indicate light turn off, controller runs in set mode. When protecting of avoid freezing, button is not shielded. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 34 C, the outdoor unit fan motor startups. If T ≥ 100 C, the indoor unit fan motor automatically turn to high speed; If T ≤ 48 C, the indoor unit fan motor turn to old set speed. Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 35 Auto button: When the unit is in stop state, after press this button, the unit runs in auto mode; when the unit is in running state, after press this button, the unit turns off; Model No: AC-F30HG Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 36 Auto-restart function: Memory content: mode, swing, set temperature, set speed. The unit can restart automatically according to memorizing previous state after break electricity, compressor will 3min delay in first restart. http://splitoff.ru/tehn-doc.html Model No: AC-F30HG Version 1.0...
