Air Conditioner
Service Manual
http://splitoff.ru/tehn-doc.html
,
,
,
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-S13CEGV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for akira AC-S13CEGV1

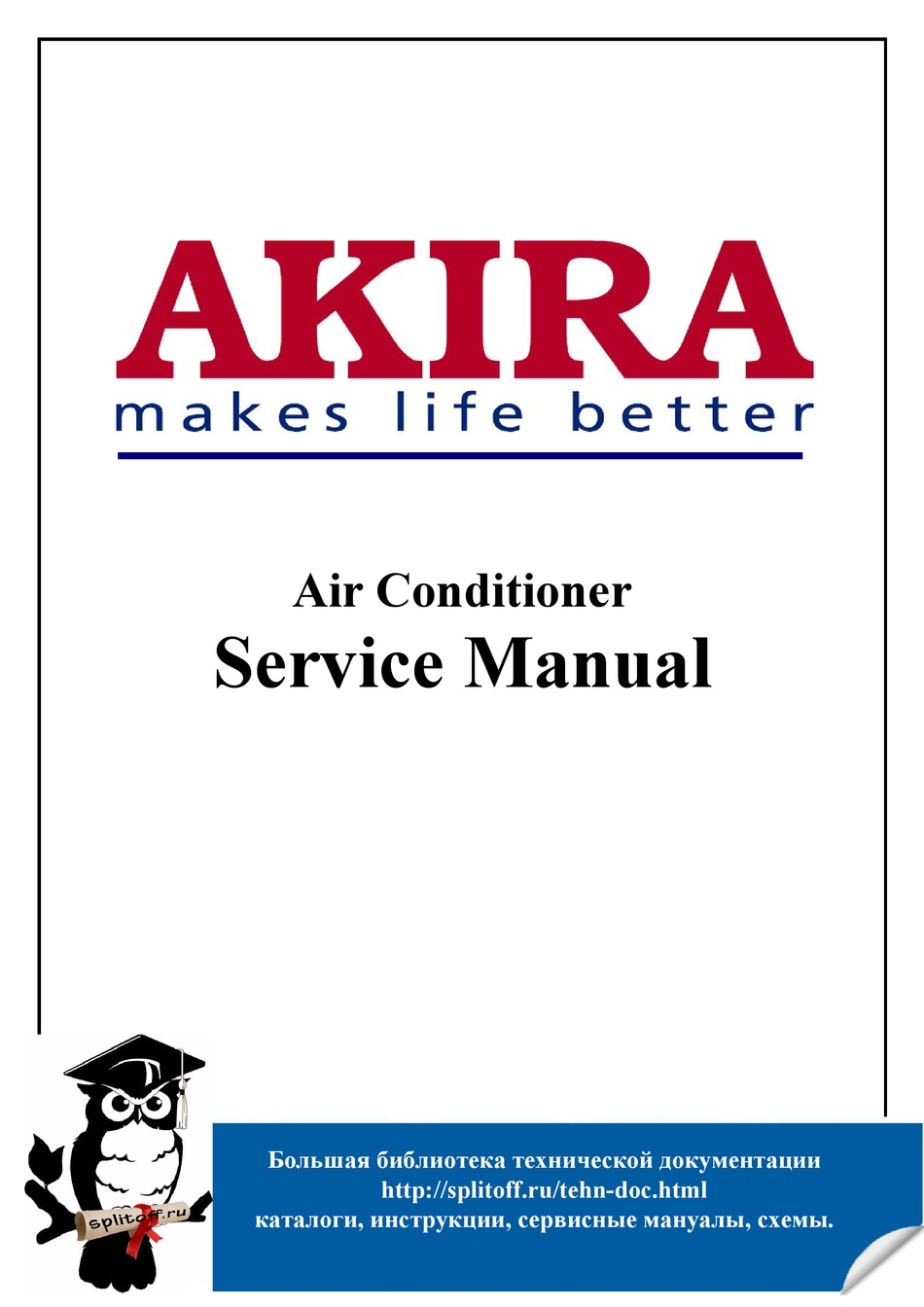

  • Page 1 Air Conditioner Service Manual http://splitoff.ru/tehn-doc.html...
  • Page 2 MODEL: AC-S13CEGV1 Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 3: Table Of Contents

    CONTENTS TECHNICAL SPECIFICATION......................4 PARTS NAME ............................5 DISASSEMBLY PROCEDURES OF INDOOR UNIT ................6 DISASSEMBLY PROCEDURES OF OUTDOOR UNIT ..............11 FAILURE AND ANALYSIS ........................15 EXPLODED VIEW OF INDOOR UNIT....................18 PART LIST ............................. 19 EXPLODED VIEW OF OUTDOOR UNIT................... 20 PART LIST .............................
  • Page 4: Technical Specification

    TECHNICAL SPECIFICATION Content AC-S13CEGV1 Function Cooling Power supply 1Ph 220-240V- 50Hz Capacity (W) 3500 Rated input power (W) 1050 Rated current (A) 4.87 Dehumidifying volume (L/h) C.O.P/ EER (W/W) 3.33 Fan speed (r/min)(H/M/L) 1090/1010/920 Output power (W) Fan type-piece Cross flow fan-1 Φ...
  • Page 5: Parts Name

    PARTS NAME Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 6: Disassembly Procedures Of Indoor Unit

    DISASSEMBLY PROCEDURES OF INDOOR UNIT Disassemble the front panel. Pull the panel open. Firstly, unscrew the screw fixing the top cover of the electric box and remove the top cover. Then, pull away the connection terminal. Pull the panel outward with force along the groove fixing the panel of the panel body to remove the as shown in Fig A.
  • Page 7 Disassemble the panel board Open the 3 screw covers at the panel board and screw off 5 screws. Pull out the movable latch at the panel board with hand and then pull it backwards to disassemble the panel board as shown in Fig A-3 Fig A-3 Disassemble the water tray Screw off the fixing screws fixing the water tray with a screwdriver, and pull out the terminal board of...
  • Page 8 Disassemble electric box Remove the grounding wire of the evaporator, and remove the temperature senor for the pipe. Remove the connection lines for the indoor motor. Screw off the screws fixing the electric box with a screwdriver. Remove the electric box as shown in Fid A-6 Fig A-6 Disassemble evaporator The lower rear clamp plate can be removed by just screwing off one screw with a screwdriver.
  • Page 9 Disassemble motor Screw off the two screws fixing the motor pressure plate with a screwdriver and remove the pressure plate. Screw off the three fixing screws at the axle sleeve and remove the motor as shown in Fig A-10, A-11. Fig A-10 Fig A-11 Model No.: AC-S13CEGVI.doc...
  • Page 10 Disassemble cross flow fan Screw off one screw fixing the bearing rubber gasket with a screwdriver and remove the bearing rubber gasket. In this case, the cross flow fan can be removed as shown in Fig A-12. Fig A-12 uxiliary electric heater (Note: only existing in cooling /heating units) Screw off 2 screws fixing the auxiliary electric...
  • Page 11: Disassembly Procedures Of Outdoor Unit

    DISASSEMBLE PROCEDURES OF OUTDOOR UNIT Disassemble the top cover Screw off one screw fixing the handle with a screwdriver and remove the handle after pushing downward with force. Screw off three screws around the top cover and pull upward to remove the top cover as shown in Fig B Fig B Remove the net cover Screw off 4 taping screws at the rear sideboard, and the valve frame bottom plate and condenser...
  • Page 12 Disassemble electric device installation board Screw off the 3 screws fixing the electric device installation board, and pull out the inserting contacts for leads of compressor and fan motor, and remove the electric device installation board as shown in Fig B-3. Fig B-3 isassemble right side plate assembly Screw off the 5 screws at the rear side pla...
  • Page 13 Disassemble motor and motor support Screw off the 4 taping screws fixing the motor and remove the motor. Screw out the 2 taping screws and remove the motor support by pulling upwards as shown in Fig B-6 Fig B-6 Disassemble 4-way valve(Only existing in cooling /heating unit) Screw off the fixing nuts for the fixing the solenoids of 4-way valve and remove the solenoid.
  • Page 14 Disassemble big and small valves Screw off the 2 screw bolts fixing the big valve and solder off the soldering point connecting the big valve and the gas returning pipe. Remove the big valve. (Remarks: It is recommended to wrap the big valve with wet gauze completely when soldering off the soldering points to prevent the valve body from being damaged by high temperature).
  • Page 15: Failure And Analysis

    FAILURE AND ANALYSIS Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 16 Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 17 Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 18: Exploded View Of Indoor Unit

    EXPLODED VIEW OF INDOOR UNIT Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 19: Part List

    PART LIST Part Description Part No Wall-Mounting Frame 01252384 Pipe Clamp 26112425 Frame Hook 26272421 Rear Case 22202037 Evaporator Ass’y 01032082 Cross Flow Fan 10352405 Ring of Bearing 76712015 Left Motor Clamp 261124281 Drain Pipe 05232411 Water Tray 20182034 Motor MP24CA 15212106 Swing link 105824393...
  • Page 20: Exploded View Of Outdoor Unit

    EXPLODED VIEW OF OUTDOOR UNIT Model No.: AC-S13CEGVI.doc Version: 1.0 : http://splitoff.ru/tehn-doc.html...
  • Page 21: Part List

    PART LIST Part Description Part No Valve 1/2" 07100147 Valve 1/4 07100024 Big Handle 26233433 Right Side Plate Ass’y 01302004 Capillary Ass’y 03003349 Isolation Washer D 70410525 Wire Clamp 71010103 Terminal Board (3M) T386A 42011241 Electric Box 01403117 Capacitor CBB65 30uF/450V 33000018 Capacitor Clamp 02143401...
  • Page 22: Circuit Diagram

    C C C I I I R R R C C C U U U I I I T T T DIAGRAM Model No.: AC-S13CEGVI.doc Model No.: AC-S13CEGVI.doc Version: 1.0 Version: 1.0...
  • Page 23 http://splitoff.ru/tehn-doc.html...
