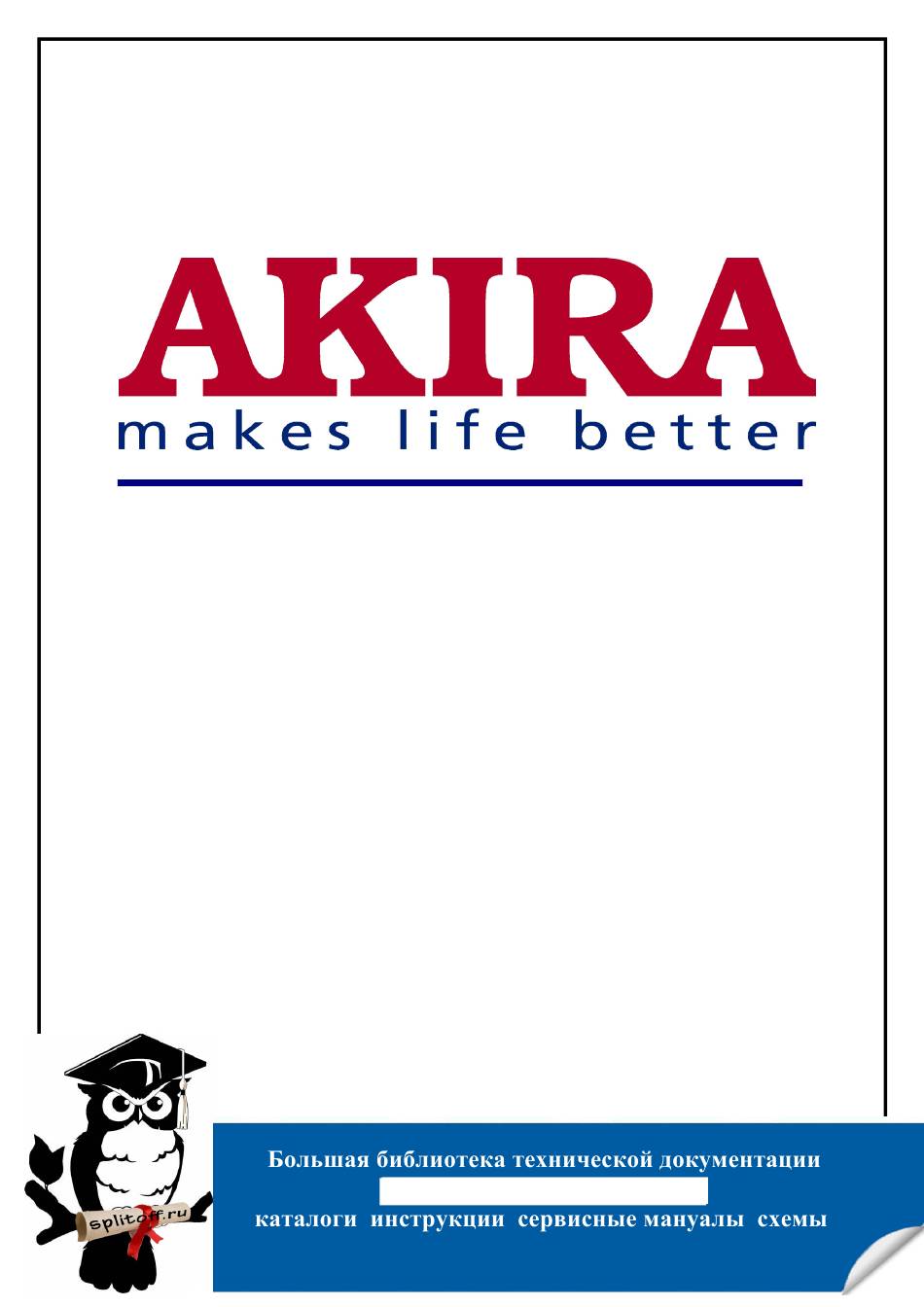

- Page 1 Air Conditional Service Manual https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 2 Model: AC-S10HKA Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 3: Table Of Contents
FEATURES .............................. 6 OPERATING RANGE ..........................8 REMOTE CONTROLLER ........................10 REFRIGERATION CYCLE........................13 OPERATION DETAILS......................... 15 INSTALLATION............................ 25 SERVICE..............................37 TROUBLE SHOOTING ........................45 EXPLODED VIEW AND PART LIST ....................52 WIRING DIAGRAM ..........................56 Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 4: Specifications
Copper and Aluminum Fin Condenser Copper and Aluminum Fin Features LCD Wireless Remote Controller Removable and Washable Panel Washable PP Filter Active Charcoal Filter Optional Electrostatic Filter Optional HEPA Filter Optional LTC Filter Optional 24 Hours Timer Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 5 Outdoor Unit 755x530x252 Net Weight (Kg) Indoor Unit Outdoor Unit Packing Dimensions WxHxD Indoor Unit 830x310x240 (mm) Outdoor Unit 890x580x350 Gross Weight (Kg) Indoor Unit 10.5 Outdoor Unit 34.5 Loading Capacity 245/290 (40’/40’ HC) Approvals Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 6: Features
Press UP button once, the set temperature is increased by 1℃. DOWN Automatically switches the appliance ON at preset time intervals, ensuring a TIMER comfortable environment before you return home, or switches OFF the appliance automatically when you sleep without wasting electricity. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 7 When the power supply restores after its failure, the machine will start to work Auto -restart automatically with the previous setting parameters. Strong cooling when you just come into your room and want to cool the room as soon SUPER as possible. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 8: Operating Range
15m and the maximum elevation difference between indoor and outdoor units are 5m. If the refrigerant piping is longer than 5m,additional refrigerant charge 20g/m for gas pipe is advisable. Indoor unit Pipe length is 15 meters Max Indoor unit Outdoor unit Curled tube for returning water Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 9 Outside diameter of the refrigerant piping is as following. Models OD of liquid pipe (Small pipe) OD of gas pipe (Large pipe) Cooling only & heat pump Φ 6mm or ¼ inch Φ 9.53mm or 3/8 inch Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 10: Remote Controller
REMOTE CONTROLLER The remote controller transmits signals to the system. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 11: Mode Button
Used to adjust the preset room temperature. Used to adjust time in TIMER mode. 5. SWING BUTTON Press to adjust airflow direction. 6. SMART BUTTON Used to enter fuzzy logic operation directly, regardless of the unit is on or off. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 12: Sleep Button
(Fast cooling operates at high fan speed with 18℃ setting temperature automatically) Indication symbols on LCD: Signal transmit. Auto fan speed Cooling indicator Super indicator High fan speed Dry indicator Smart indicator Medium fan speed Fan only indicator Sleep indicator Low fan speed Heating indicator Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 13: Refrigeration Cycle
REFRIGERATION CYCLE 1. Cooling only appliance Indoor unit evaporator liquid side gas side Outdoor unit 3-way valve 2-way valve accumulator compressor capillary condenser Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 14 2. Heat pump Indoor unit evaporator liquid side gas side Outdoor unit 3-way valve 2-way valve check valve accumulator compressor capillary reverse valve condenser heating cooling defrost Flow of refrigerant Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 15: Operation Details
OFF, and when the indoor pipe temperature falls below 49℃, the outdoor fan motor recovers to ON. When the indoor pipe temperature exceeds 63℃, the appliance will be turned OFF with 4 beeps of buzzer and cannot recover automatically. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 16: Airflow Direction Control
26℃ automatically with the AUTO FAN speed. When selecting the COOLING mode operation, the appliance will operate according to the setting by the remote controller and the operation diagram is as following: Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 17: Dry Mode Operation
℃.The compressor OFF when temperature is the setting temperature minus 1℃. The setting temperature can only be adjusted by 2℃ up and down. When the appliance operates at DRY mode, the indoor motor speed is LOW. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 18 6. COLD AIR PREVENTIVE SYSTEM (ONLY AVAILABLE FOR HEAT PUMP) This system is intended to prevent cold air from being discharged during HEATING operation. The indoor fan motor speed will be controlled as following. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 19: Auto Fan Speed
When the Auto Fan Speed is selected in COOLING or HEATING operation, the indoor fan motor speed is automatically controlled by the intake air temperature and the preset temperature. The operation procedure of COOLING is as following. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 20 Set temp. Set temp.-1 Set temp.-2 Set temp.-3 Intake air temp. Indoor fan Indoor fan Medium High High Medium motor speed motor speed Indoor pipe temperature rises Indoor pipe temperature rises Indoor pipe temperature falls Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 21: Indoor Fan Speed Control
2 beeps; if the unit with auto restart function, it will discharge the auto restart function after the buzzer 3 beeps. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 22 During the defrost operation, the indoor fan motor is controlled by Cold Air Preventive System. The HEATING and defrosting operation is alternated as following. Switch ON Heating Heating Heating Min 50 mins Min 50 mins Min 50 mins Defrosting Max 10 mins Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 23: Timer Mode Operation
TIMER button again, the timer mode is selected and the yellow LED indicator on the indoor unit lights up. The TIMER mode can be cancelled by pressing the TIMER button again on the remote controller. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 24: Sleep Mode Operation
When selecting HEATING operation with SLEEP mode, the setting temperature will be decreased by 3℃during successive 3 hours later. The operation will stop in 8 hours. The operation diagram is as following. Max 8 hours 1 hour 2 hours 3 hours Sleep start Sleep stop Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 25: Installation
The meeting point of the extended line is the center of the hole. Drill the piping hole at either the right or the left and the hole should be slightly slant to the outdoor side. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 26: Piping And Drainage Of Indoor Unit
Use the accessory piping kit or the pipes purchased locally. Measure the distance between the indoor and the outdoor units. Cut the pipes a little longer than measured distance. Cut the cable a 1.5m longer than the pipe length. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 27 Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 28 Hook the indoor unit onto the upper portion of installation plate. (Engage the two hooks of the rear top of the indoor unit with the upper edge of the installation plate.) Ensure the hooks are properly seated on the installation plate by moving it in left and right. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 29 Gas Side (φ10 or 3/8 inch) 3.5 kg.m Gas Side(φ12 or 1/2 inch) 5.5 kg.m Gas Side(φ16 or 5/8 inch) 7.5 kg.m Gas Side(φ19 or 3/4 inch) 10.0 kg.m Wrap the insulation material around the connecting portion. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 30: Connecting Pipings And The Cable To Outdoor Unit
Align the center of the piping and sufficiently tighten the flare nut with fingers. Finally, tighten the flare nut with torque wrench until the wrench clicks. When tightening the flare nut with torque wrench, ensure the direction for tightening follows the arrows on the wrench. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 31 To remove the grille, pull the lower left and right side of the grille toward you (slightly titled) and lift it straight upward (Two tabs on the top inside edge of the grille are clear of their slots). Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 32 In case of the outdoor unit is installed below position of the indoor unit Tape the piping, drainage hose and connecting cable from down to up. Form the piping gathered by taping along the exterior wall and fix it onto the wall by saddle or equivalent. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 33 To open the valve, turn the valve spindle of 2-way valve counter-clockwise approximate 90° and hold it there for 5 seconds, then close it. Caution: Do not leak the gas in the air during air purging. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 34 If there is no leakage found, open 2-way again, turn the valve spindle counter-clockwise until it stops. If there is leakage found, re-tighten the connecting portion with wrench. If the leakage persists, locate a leakage and repair it until leakage ceases. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 35 Connect the manifold gauge to the service port of 3-way valve. Measure the pressure. Keep it for 5~10 minutes. Ensure if the pressure indicated on the gauge is as same as that of measured at the first time. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 36 The additional gas for air purging has been charged in the outdoor unit. However, if the flare connections have not been done correctly and gas leaks a gas cylinder and the charge set will be needed. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 37: Service
Be sure to use a torque wrench to tighten the service port cap (after using the service port),so that it prevents the gas leakage from the refrigeration cycle. Caution: Do not leak the gas in the air during air purging. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 38 If the gas leakage does not stop when the piping connections are tightened, repair the location of the leakage, discharge all of the gas through the service port, and then recharge with the specified amount of gas from a gas cylinder. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 39 Open the low-pressure valve on the charge set slightly to purge air from the charge hose. Set the 2-way valve to the closed position. Operate the air conditioner at the cooling cycle and stop it when the gauge indicates 1kg/cm Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 40 2-way valve approximately 45°for 3 seconds, then closing it for 1 minute. Repeat 3 times. After purging the air, use a torque wrench to tighten the flare nut on the 2-way valve. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 41 Confirm that both the 2-way and 3-way valves are set to the back seat. Connect the charge set to the 3-way valve’s service port. Leave the valve on the charge set closed. Connect the charge hose with the push pin to the service port. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 42: Evacuation (All Amount Of Refrigerant Leaked)
(approximately 5 minutes after turning off the vacuum pump). Disconnect the charge hose from the vacuum pump. If the vacuum pump oil becomes dirty or depleted, replenish as needed. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 43: Gas Charging (After Evacuation)
If the system has been charged with liquid refrigerant while operating the air conditioner before disconnecting the hose. Mount the valve caps and service port cap. Use torque wrench to tighten the service port cap to a torque of 1.8kg.m. Be sure to check for gas leakage. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 44 Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 45: Troubleshooting
Value of electric current during operation Excessive amount of operation refrigerant Measure gas side Inefficient compressor Pressure from the Gas side pressure Insufficient refrigerant Service port of the 3-way valve Clogged strainer or capillary tube Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 46: Diagnosis Methods Of A Malfunction Of A Compressor
The difference between high pressure and low pressure becomes almost zero. Locked Electric current reaches a high level abnormally, and the value exceeds compressor the limit of an ammeter. In some cases, a breaker turns OFF. The compressor has a humming sound. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 47 The running capacitor is broken Replace running capacitor OLP of compressor trips Wait for one hour or so Compressor winding shorted or Replace compressor broken Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 48 Replace transformer 17VAC 5. Checking procedure of control circuit Note: Do not check indoor and outdoor units at the same time. Be sure to check them one by one. Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 49 Is the fuse down? Replace the transformer with Replace the fuse and varister Check the electric circuit on a new one. with new ones the outdoor unit Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 50 Push the ON/OFF button P.C.B.assembly on the remote controller. When the signal is received, does the voltage change? Replace the display P.C.B. assembly with a new one. Replace the control P.C.B. assembly with a new one https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html Model No: AC-S10HKA Version 1.0...
- Page 51 Is the measured value approximately 17.0 V AC? Replace the control P.C.B. with a new one. Is the fuse breakdown? Replace the transformer Replace the fuse and varister with a new one. with a new one. https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html Model No: AC-S10HKA Version 1.0...
-
Page 52: Exploded View And Part List
EXPLODED VIEW AND PART LIST INDOOR UNIT https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html Model No: AC-S10HKA Version 1.0... - Page 53 Pipe Assembly 13032974 Ring A 1203178 Bearing Indoor Fan Motor 1402153 Electric Box Cover 2109106 Electric Box 1005107 Control PCB 81409181 Transformer 814052 Remote Controller 1401394-63 Remote Controller 81401135-63 Thermistor 1411366 Display PCB 814093 Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 54 OUTDOOR UNIT Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 55: Outdoor Unit
Right Side Plate 810032 Valve Fixing Plate 811092 Terminal Cover 821021 3 Way Valve Assembly 8130917 2 Way Valve Assembly 8130916 4 Way Valve 141187 4 Way Valve Coil 1411458 Capillary Tube Assembly 8130324 Thermistor 1411989 Model No: AC-S10HKA Version 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 56: Wiring Diagram
WIRING DIAGRAM Indoor Unit https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html Model No: AC-S10HKA Version 1.0... - Page 57 Outdoor Unit https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html Model No: AC-S10HKA Version 1.0...
- Page 58 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
