Summary of Contents for akira AC-FR30CM

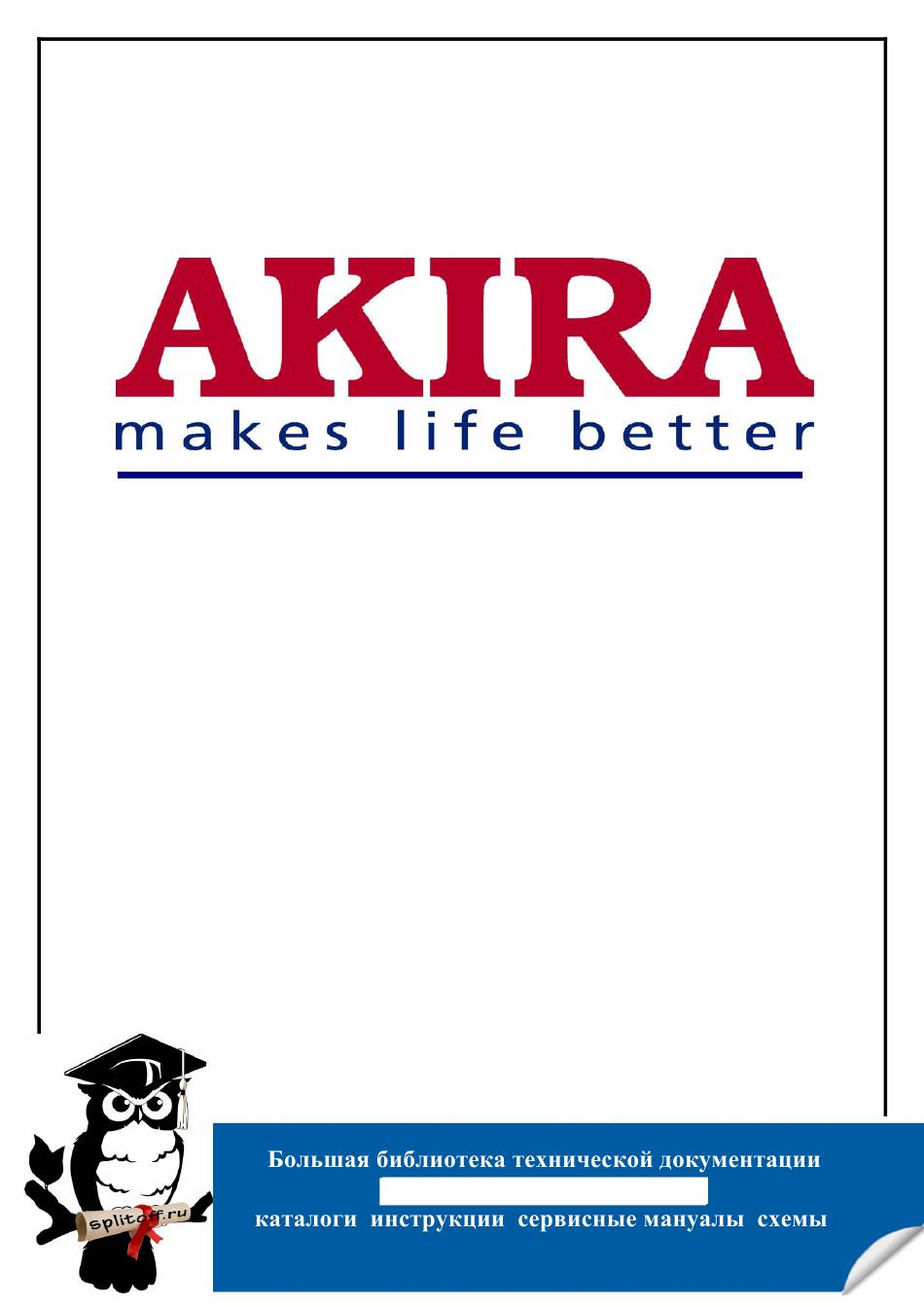

- Page 1 Air Conditional Service Manual https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 2 -2 - MODEL: AC-FR30CM Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 3 -3 - CONTENTS SPECIFICATION............................. 4 INSTALLATION INSTRUCTION ......................6 EXPLODED VIEW AND PART LIST ....................20 CIRCUIT DIAGRAM ..........................24 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 4: Specification
1000 Indoor noise level dB(A) Dimension (w x h x d) 500 x 1665 x 273 Indoor unit Packing (w x h x d) 585 x 1805 x 380 Net /Gross weight 46 /57 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 5 Max. refrigerant pipe length pipe Max. difference in level Connecting wiring Plug type Thermostat type Electronic control Operation temp 17-30 Ambient temp 18-45 Application area 40~56 Qty per 20’ & 40’ Fcl Pieces 43 /87 /97 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 6: Installation Instruction
Select a place that is easy to connect indoor unit’s pipe and electric wires. iii. Avoid a place where combustible gas may leak or stay. Keep it in mind that water may drain out of the outdoor unit while in “Heat” mode. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 7 Try to make the air outlet vertical to wind direction if it is known in the season you use the system. In directions A, B, C leave open two of the three directions. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 8: Installation
Before installing, please check the available accessories according to the list given below. Accessories for installing Part name Illustrations Installing board (for wall mounting) 3.9 x 25 screw (for fixing the board) Plain washer Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 9 (Btu/h) 20000~30000 30000~55000 Liquid side size Diam: 9.53mm Diam: 12.7mm Gas side size Diam: 16mm Diam: 19mm If there is any difference between the above table and packing list, the packing list shall prevail. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 10 Dismounting the air-inlet grid Please take off the air-inlet grid before connecting the pipes /wires. Pull down the two knobs on the grid, take off the two screws, then the air-inlet grid goes free. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 11 Be careful while hanging the unit because the center of gravity of the unit is not centralized. Do not make the angle of inclination more than 45 degrees while shipping. (Avoid horizontal storage). d. Be sure the electric insulation work is well done if installed on metal ceiling /wall. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 12: Refrigerant Pipe
(please keep them care fully). Please connect the refrigerant pipe according to the manual, the pipe-jointing nut should be screw tightly and no leakage. Note: you need two wrenches to make balance. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 13 Caution in handling the packed valve Open the valve stem until it hits against the stopper. Do not try to open it further. Securely tighten the valve stem cap with a spanner or the link. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 14 Check and make sure there is no leakage by soap-water or leakage-checker after connecting. Be sure the connecting joint on the in door side is insulated. Use two wrenches to connecting the pipe. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 15 After the evacuation is complete, fully close the handle Lo of the manifold valve and stop the operation of the vacuum pump. Make evacuation for 15 minutes or more and check that the compound meter indicates – 76cmHg (-10x10 Pa). Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 16: Drain Pipe
Outdoor unit Remove the electric parts cover from the outdoor unit. Connect the connective cables to the terminals as identified with their respective matched numbers on the terminal block of indoor and outdoor units. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 17 Unscrew the maintenance board. Pull it down as the signal shown. (Be careful not to scratch the crust.) Caution Wrong wiring connections may cause some electrical parts to malfunction. The air conditioner must be grounded well. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 18 Connect the grounded wire to both indoor and outdoor units. This table is just an on-site wire-connecting example. The length of the power wire and connecting-wire which connects the indoor unit to the outdoor unit. (The figure given below shows a suitable length). Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 19 3. Check if all the functions works well while testing the air conditioner. Especially check whether the drainage of indoor unit is smooth or not. 4. Press the manual switch button again till the operation indicator turns dark after finishing the test operation and the unit stops operation. Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 20: Exploded View And Part List
-20 - EXPLODED VIEW & PART LIST Indoor unit 2 2.1 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 21 E-part box cover Fan motor Centrifugal fan Volute shell Wind inlet guide Indoor temp sensor Formaldehyde cleaner Air filter Grille Air cleaner holder Remote controller Holder for remote controller Copper nut, TLM-B02 Copper nut, TLM-D04 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 22 -22 - Outdoor Unit Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
- Page 23 Washer for wire joint Clamp for wiring Compressor capacitor Capacitor clamp Separating board Chassis Front right clapboard Compressor Liquid valve assy Liquid pipe valve Gas valve assy Gas pipe valve Copper nut, TLM-B02 Copper nut, TLM-D04 Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
-
Page 24: Circuit Diagram
-24 - CIRCUIT DIAGRAM OUTDOOR UNIT Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... -
Page 25: Indoor Unit
-25 - INDOOR UNIT Model No.: AC-FR30CM Version: 1.0 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html... - Page 26 https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html...
