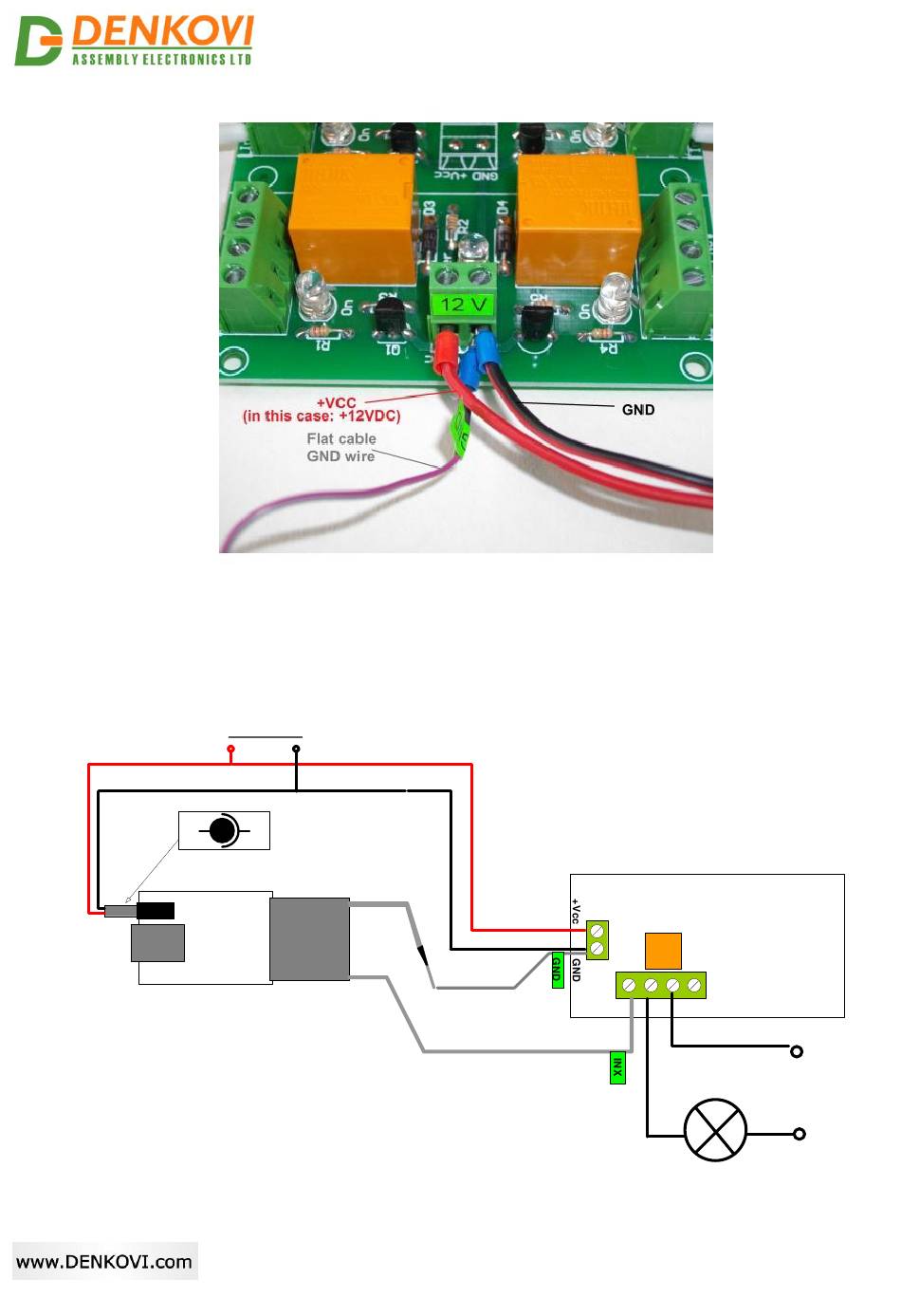

Figure 12.10. Connect the +Vcc and GND wires into the relay board power supply screw
terminal as it is shown on the image above.
6.1. Single power supply. You can supply the kit with single power supply source. In this case it
is 12VDC. If you have 24V relay board version, then you must use 24VDC single power
supply source (DAEnetIP2 v2 accept from 7.5V - 25V)
Power source
+12VDC
GND
-
+
Relay Board
IP Controller power
jack
+12VDC
RJ45
FLAT
Relay
RIBBON
CABLE
GND
IP Controler
GND From Flat
IN
NO C NC
Ribbon Cable
~120VAC
Figure 12.11. Single power supply source.
- 40 -
