Denkovi DAEnetIP2 v2 User Manual page 18

6.6. SNMP Settings
6.6.1. SNMP Agent
These settings let you configure the SNMPv1 (Simple Network Management Protocol) (Version
1) access to the DAEnetIP2 v2:
 Agent Port - UDP port number the SNMP agent receives requests on (default port is 161).
The port must be 161 or in the range from 1025 up to 65535;
SNMP: Change of cfgSNMPport.0
 Read-only Community - community string for client‟s authentication, used in read
operations (max 12 symbols);
SNMP: cfgReadOnlyPassword.0
 Read-write Community - community string for client‟s authentication, used in read/write
operations (max 12 symbols);
SNMP: cfgReadOnlyPassword.0
 Access to IP Configuration - if disabled, there is an access only to the I/O ports of the
module;
SNMP: Change its bit in cfgMode.0

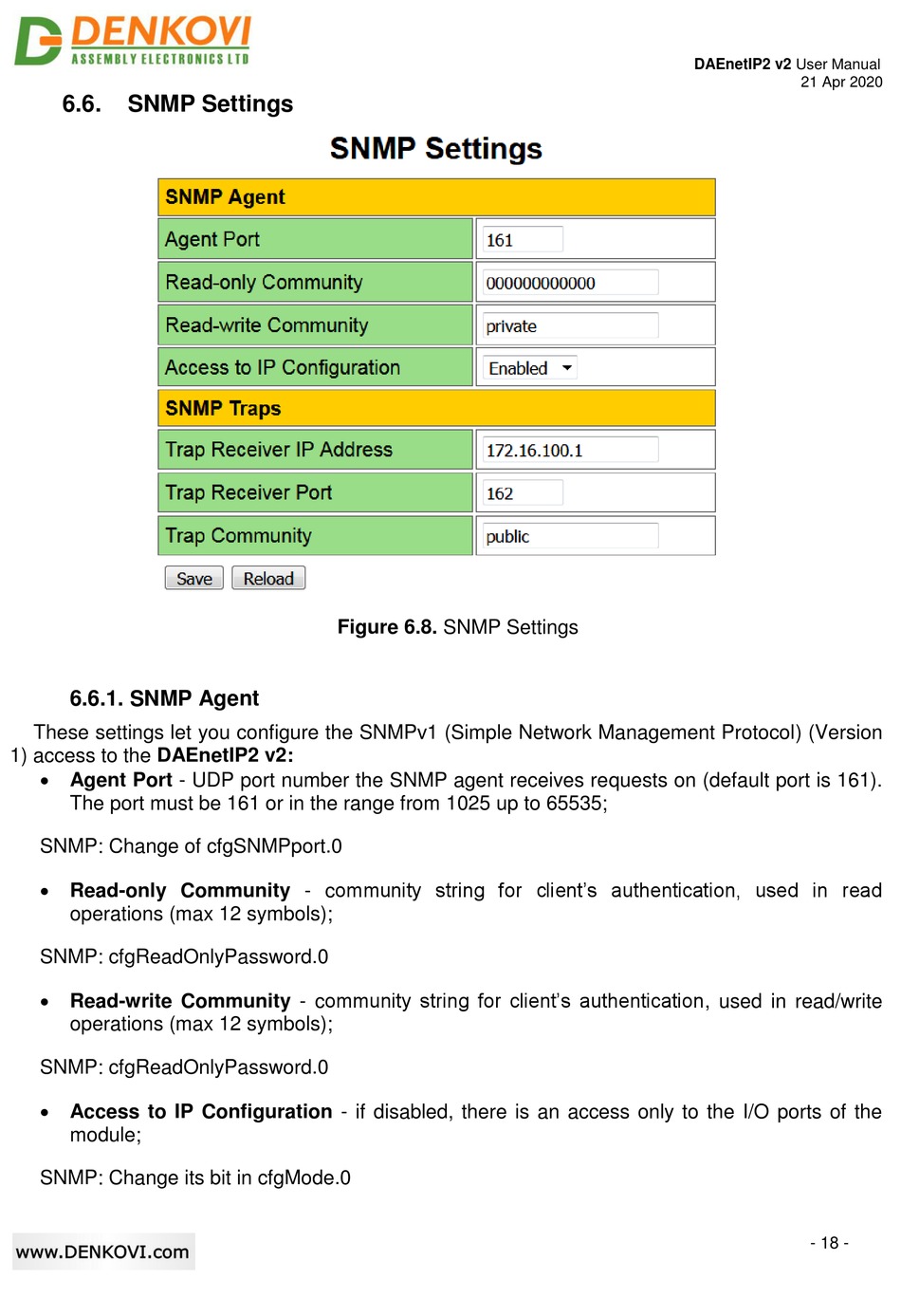

Figure 6.8. SNMP Settings
DAEnetIP2 v2 User Manual
21 Apr 2020
- 18 -
