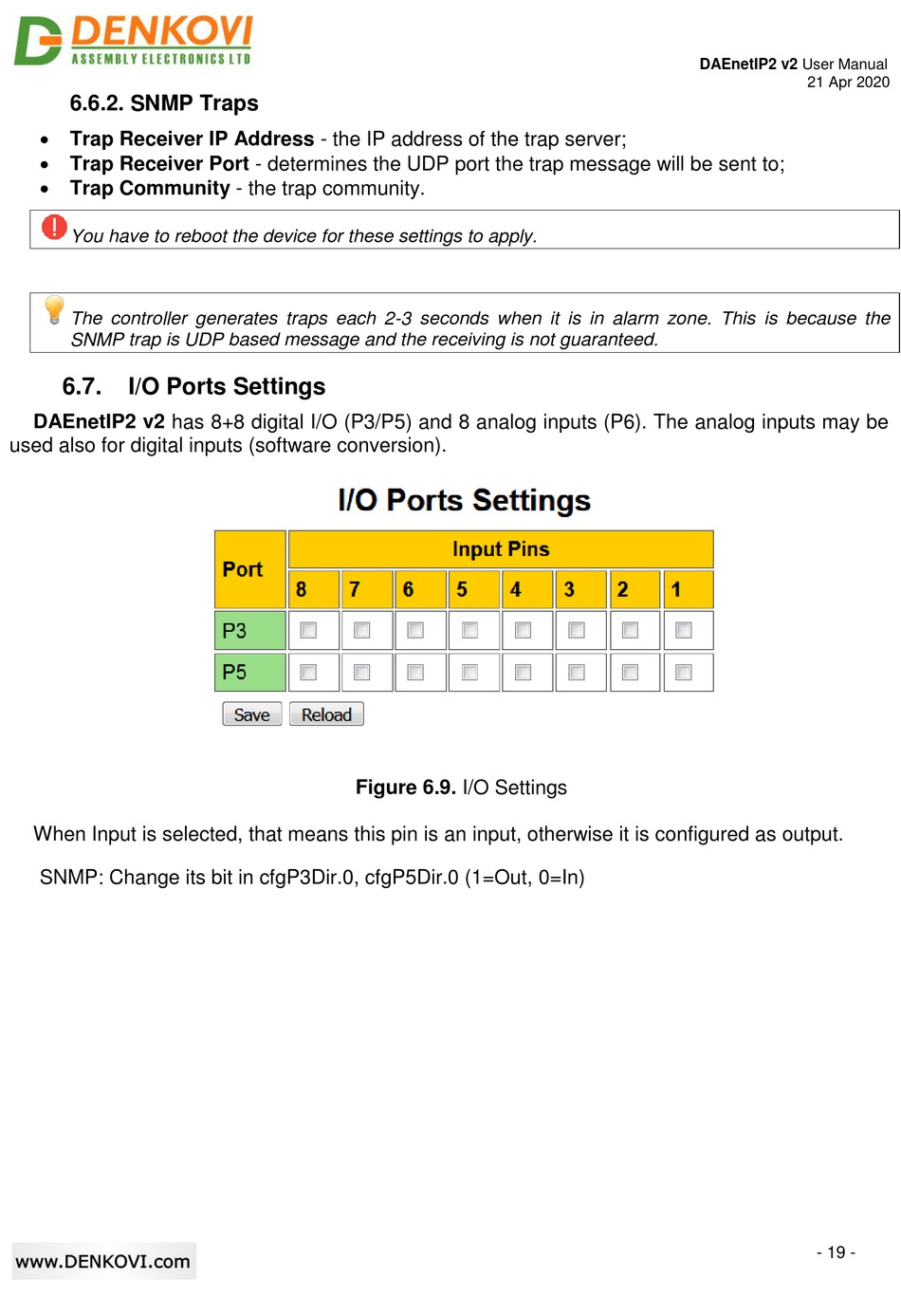

Denkovi DAEnetIP2 v2 User Manual page 19

6.6.2. SNMP Traps
 Trap Receiver IP Address - the IP address of the trap server;
 Trap Receiver Port - determines the UDP port the trap message will be sent to;
 Trap Community - the trap community.
You have to reboot the device for these settings to apply.
The controller generates traps each 2-3 seconds when it is in alarm zone. This is because the
SNMP trap is UDP based message and the receiving is not guaranteed.
6.7. I/O Ports Settings
DAEnetIP2 v2 has 8+8 digital I/O (P3/P5) and 8 analog inputs (P6). The analog inputs may be
used also for digital inputs (software conversion).
When Input is selected, that means this pin is an input, otherwise it is configured as output.
SNMP: Change its bit in cfgP3Dir.0, cfgP5Dir.0 (1=Out, 0=In)
Figure 6.9. I/O Settings
