Balanced Body Konnector Installing

Installing the Balanced Body
The Konnector is compatible with Balanced Body Studio
Reformers with wooden risers and removable shoulder rests
ONLY. If you aren't sure whether this system will work with your
equipment, please contact Balanced Body at 1-800-PILATES (US
and Canada), or +1-916-388-2838 (all other countries).
To view the installation podcast, please visit
www.pilates.com/instructions
TOOLS REQUIRED (NOT INCLUDED):
» 7/16" wrench or socket (recommended)
PARTS LIST (INCLUDED):
ITEM
Konnector Rope
Konnector Riser Assembly
2-3/4" Allen bolts
1/4" Flat Washer
1/4" Fender Washer
Tri-Loops (Grey)
Tri-Loops (Black) with pulleys
Hair Guard
1/4-20x3/8" Button head screw
1/4-20 Nylock nut
5/32" Allen wrench
3/16" Allen wrench
1/4-20x1-1/2" Flat head screw
Twist Lock™ Shoulder Post
Twist Lock Flanged Cap
Left Pulley Bracket Assembly
Right Pulley Bracket Assembly
Bolt/Washer/Nut Assembly
1 2
WARNING: Using the existing shoulder posts with a Konnector
system can cause the loops to fall off the posts during use
which may cause injury.
REMOVE POST AND SHOULDER BRACKETS
1. Unthread each post from the shoulder rest bracket by hand
and completely remove them from the shoulder rest bracket.
You will no longer need them. Remove the shoulder rest
bracket from the carriage. Repeat on the other side.
2. Using the provided Allen wrench, remove the two flat head
screws as shown in Figure A. Replace these two removed
PART NO. QTY
screws with the two flat head screws (1/4"-20 x 1-1/2" long)
210-054 1
707-257 2
GEN8032 4
GEN9204 6
GEN9952 2
210-053 2
210-052 2
616-187 1
GEN9943 4
GEN9021 4
GEN9282 1
GEN9280 1

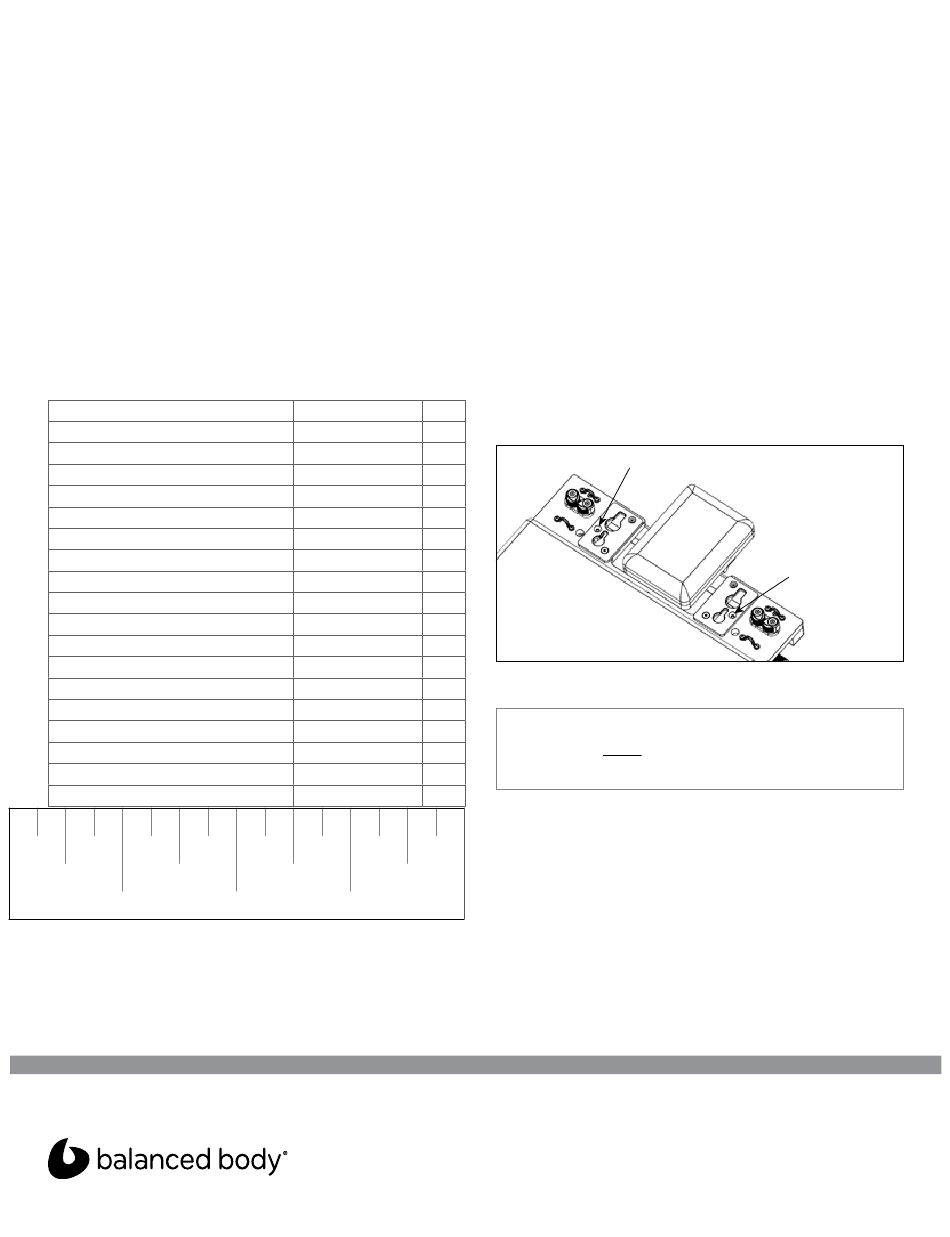

Figure A
GEN7313 2
616-400 2
616-401 2
N/A 1
N/A 1
N/A 2
provided.
3 4
Konnector
®
WARNING: If you are only using some of the loops, the
unused loops MUST be stored on the flanged shoulder
posts.
™
Contact Us
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
400-317 | 04.04.17
