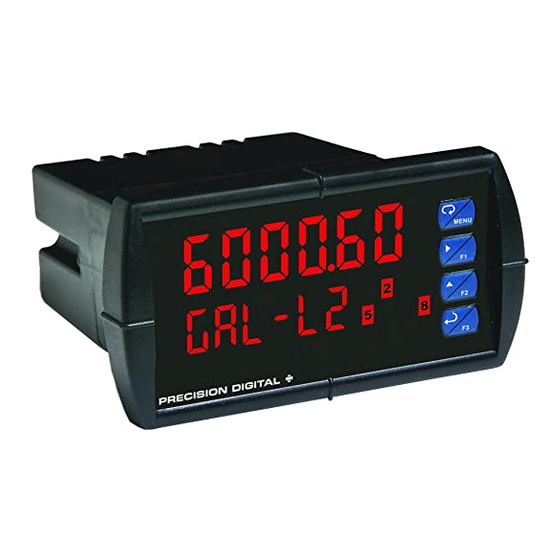

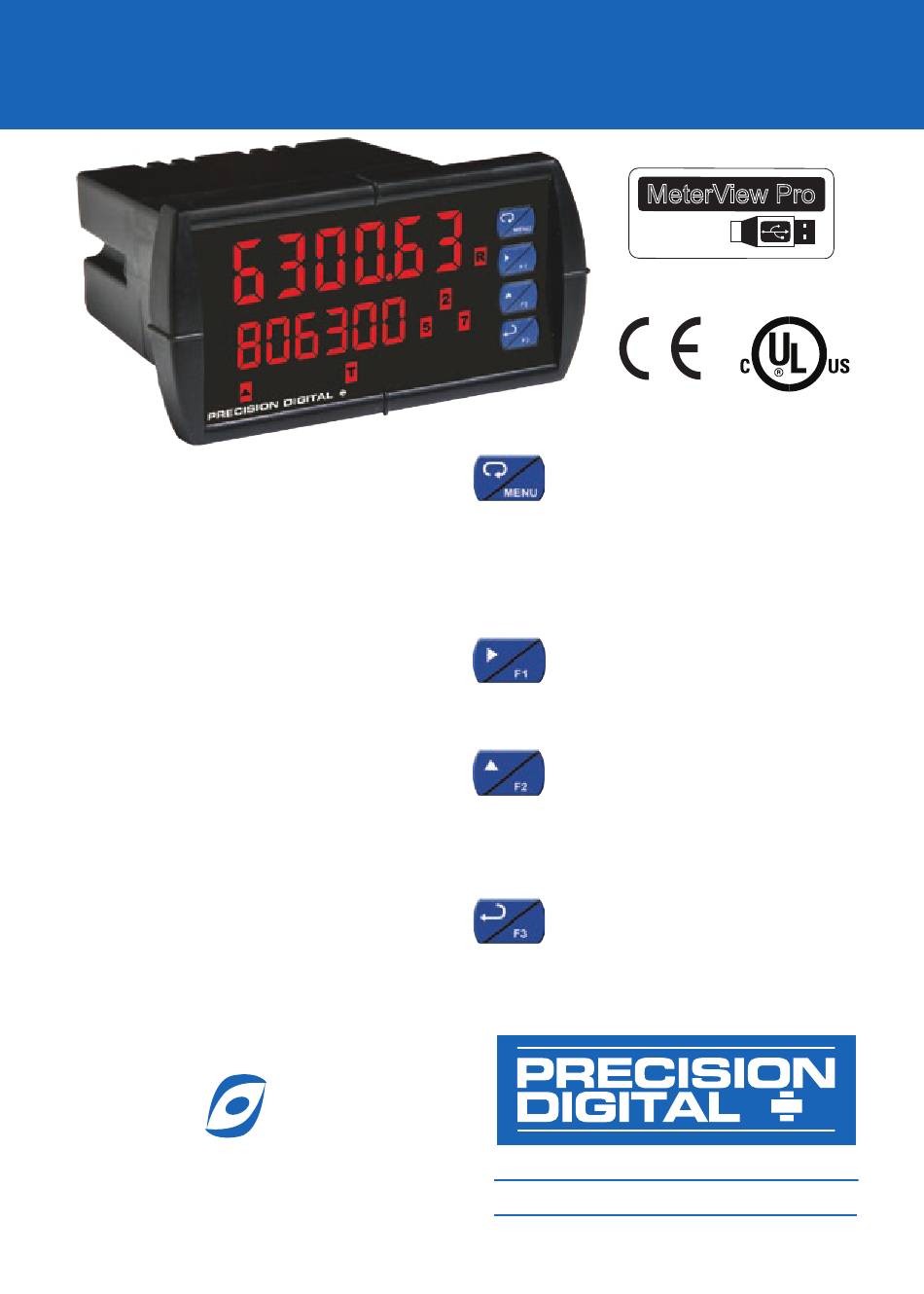

ProVu PD6300 Pulse Input Rate/Totalizer
Thank you for your purchase of the
ProVu PD6300 rate/totalizer.
This quick start guide will briefly
describe some of the common setup
procedures for this meter.
This guide includes:
Installing MeterView Pro......................
For additional information about the
ProVu PD6300 rate/totalizer not covered
in this quick start guide, please consult
the instruction manual included on the
CD or available at
P
R
© 2016 Precision Digital Corporation.
.
All rights reserved
Quick Start Guide
www.predig.com.
V
U
S
ERIES
Menu Button - Use this button to
access Programming Mode and to
return to Run Mode.
Note: If you think you have made a mistake while
programming the meter, use this button to
return the meter to Run Mode without saving.
Right/F1 Button - Use this button to
2
change the selected digit while input-
3
ting a numeric value in Programming Mode.
4
6
Up/F2 Button - Use this button to
7
increment the selected digit while
8
inputting a numeric value in Programming
Mode.
Enter/F3 Button - Use this button to
access or accept a menu item while
in Programming Mode.
®
233 South Street
Hopkinton MA 01748-2208 USA
Tel. (508) 655-7300 www.predig.com
MeterView Pro
USB Install

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProVu Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Precision Digital Corporation ProVu Series

Summary of Contents for Precision Digital Corporation ProVu Series

  • Page 1: Table Of Contents

    Programming Mode. CD or available at www.predig.com. ® ERIES 233 South Street Hopkinton MA 01748-2208 USA © 2016 Precision Digital Corporation. All rights reserved Tel. (508) 655-7300 www.predig.com...

  • Page 2: Installing Meterview Pro

    ProVu PD6300 Rate/Totalizer Quick Start Guide Installing MeterView ® The meter can be programmed using MeterView Pro. This software can be installed on any Microsoft® Windows® (2000/XP/Vista/7/8/10) computer by connecting to the meter’s onboard USB. The meter is powered by the USB connection, so there is no need to wire anything prior to programming the meter.

  • Page 3: Basic Wiring For Provu Meter

    ProVu PD6300 Rate/Totalizer Quick Start Guide Basic Wiring for ProVu Meter The connectors label, affixed to the top of the meter, shows the location of all available con- nectors. Connect your wires to the provided connectors and plug into the meter as indicated. Pulse Input Wiring 4-20 mA Output Wiring Wiring for a flowmeter powered by an internal...

  • Page 4: Program Pulse Input And Totalizer

    ProVu PD6300 Rate/Totalizer Quick Start Guide Program Pulse Input and Totalizer Program the ProVu meter to accept a pulse input and display a value. The flowmeter you are using in your facility will have a K-Factor assigned to it by the manufacturer. This is either notated on the flowmeter itself or somewhere in the instruction manual included with the flowmeter.
  • Page 5 ProVu PD6300 Rate/Totalizer Quick Start Guide Press Press to ac- ProG InCAL access the cess the (Program) menu. (Input Calibration) menu. Press to ac- Press until the FActor cess the desired decimal (K-Factor) menu. point location for This is where you will enter the K-Factor your K-Factor is displayed and press provided by your flowmeter manufacturer.

  • Page 6: Program Relays For Automatic Reset

    ProVu PD6300 Rate/Totalizer Quick Start Guide Program Relays for Automatic Reset Program the ProVu meter to turn on the relays at programmable set points and turn off the relays at reset points. Note: Only relays assigned to (Rate) will require a reset point value. If the set point is higher than rate the reset point, the relay will be a high alarm.

  • Page 7: Program 4-20 Ma Analog Output

    ProVu PD6300 Rate/Totalizer Quick Start Guide to change Press to access which digit is (Relay Set Point) menu. selected and increment the digit. Press when done. Press to access to change (Relay Re- which digit is set Point) menu. selected and Note: The reset menu will only be displayed is the to increment the selected digit.

  • Page 8: Return Meter To Factory Defaults

    ProVu PD6300 Rate/Totalizer Quick Start Guide The default value of Press to access (4.000 mA) 04. 0 00 Out 1 (Output should be sufficient 1) menu. This is the for most applications. Press to accept. output signal which represents Press to access to change dis 1...

This manual is also suitable for:

Provu pd6300
