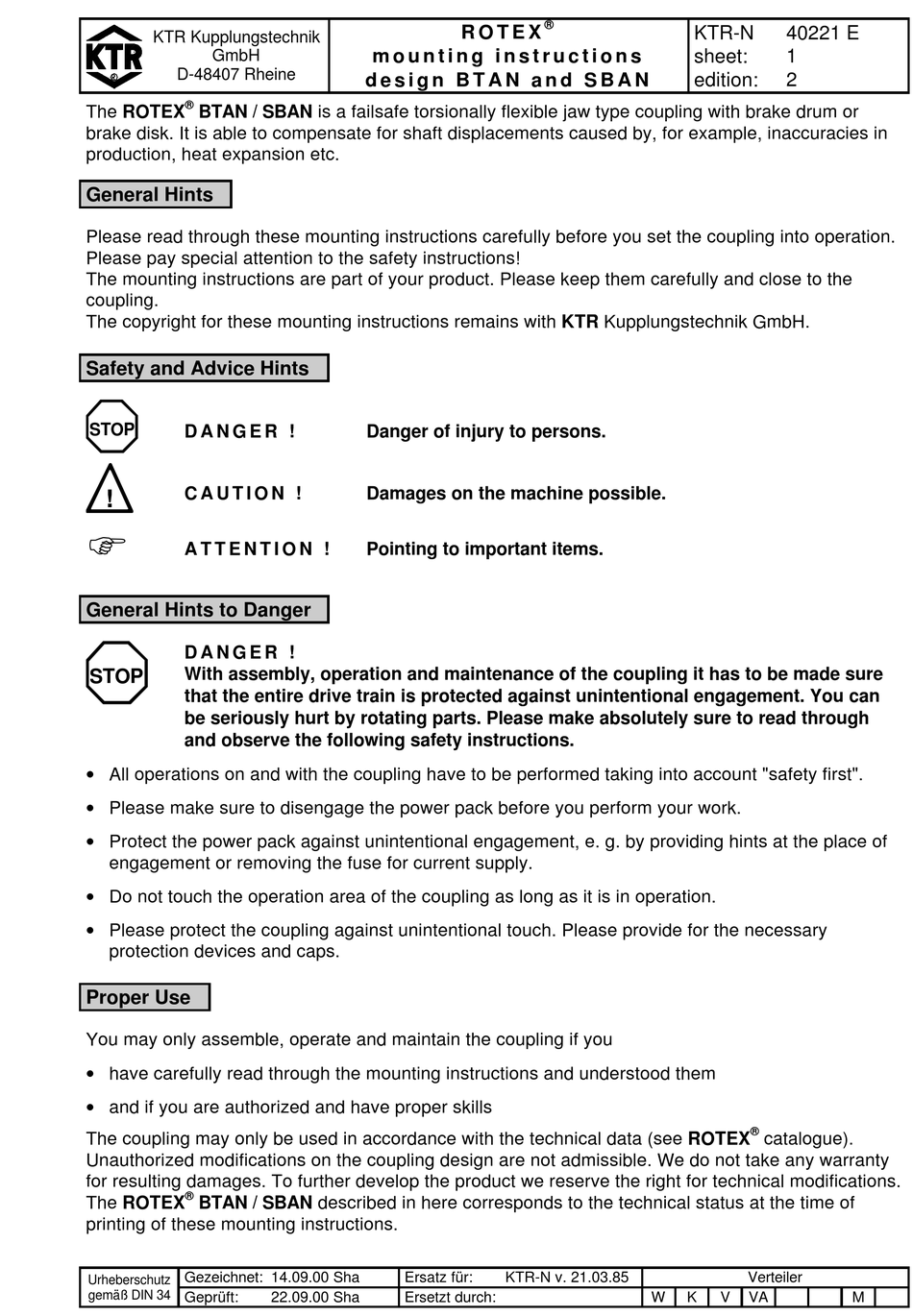

KTR ROTEX BTAN Mounting Instructions

KTR Kupplungstechnik
GmbH
D-48407 Rheine
®
The ROTEX BTAN / SBAN is a failsafe torsionally flexible jaw type coupling with brake drum or
brake disk. It is able to compensate for shaft displacements caused by, for example, inaccuracies in
production, heat expansion etc.
General Hints
Please read through these mounting instructions carefully before you set the coupling into operation.
Please pay special attention to the safety instructions!
The mounting instructions are part of your product. Please keep them carefully and close to the
coupling.
The copyright for these mounting instructions remains with KTR Kupplungstechnik GmbH.
Safety and Advice Hints
STOP
D A N G E R !
C A U T I O N !
!
F
A T T E N T I O N !
General Hints to Danger
D A N G E R !
With assembly, operation and maintenance of the coupling it has to be made sure
STOP
that the entire drive train is protected against unintentional engagement. You can
be seriously hurt by rotating parts. Please make absolutely sure to read through
and observe the following safety instructions.
• All operations on and with the coupling have to be performed taking into account "safety first".
• Please make sure to disengage the power pack before you perform your work.
• Protect the power pack against unintentional engagement, e. g. by providing hints at the place of
engagement or removing the fuse for current supply.
• Do not touch the operation area of the coupling as long as it is in operation.
• Please protect the coupling against unintentional touch. Please provide for the necessary
protection devices and caps.
Proper Use
You may only assemble, operate and maintain the coupling if you
• have carefully read through the mounting instructions and understood them
• and if you are authorized and have proper skills
The coupling may only be used in accordance with the technical data (see ROTEX
Unauthorized modifications on the coupling design are not admissible. We do not take any warranty
for resulting damages. To further develop the product we reserve the right for technical modifications.
®
The ROTEX BTAN / SBAN described in here corresponds to the technical status at the time of
printing of these mounting instructions.
Gezeichnet: 14.09.00 Sha
Urheberschutz
gemäß DIN 34 Geprüft:
m o u n t i n g i n s t r u c t i o n s
d e s i g n B T A N a n d S B A N
Danger of injury to persons.
Damages on the machine possible.
Pointing to important items.
Ersatz für:
22.09.00 Sha Ersetzt durch:
®
R O T E X
KTR-N v. 21.03.85
KTR-N 40221 E
sheet: 1
edition: 2
®
catalogue).
