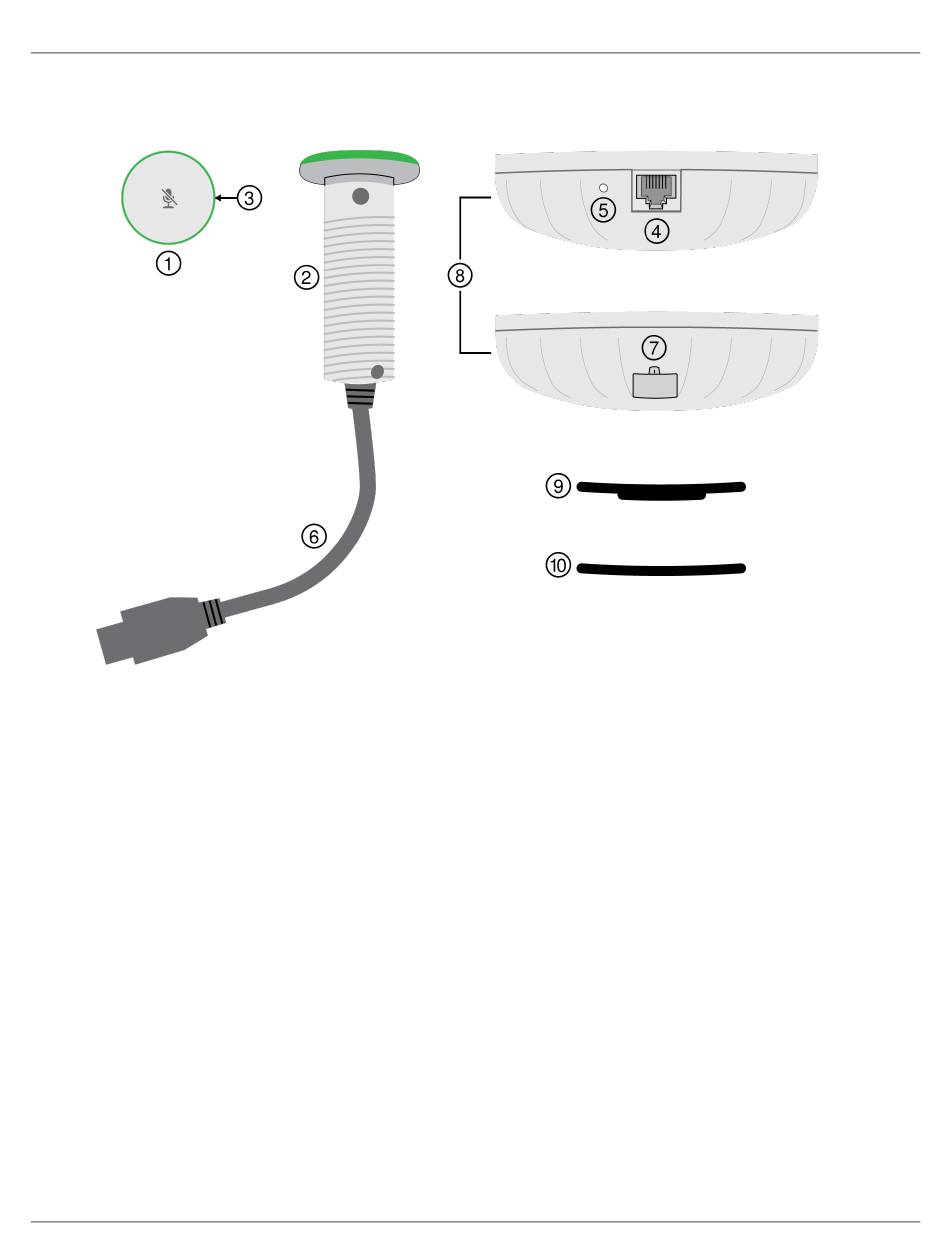

MXA Network Mute Button Parts

1. Mute button
Press to mute connected devices. Toggle, push-to-talk, and push-to-mute modes are also available.
2. Mute button tube
Insert into the hole on the table.
3. Light ring
Open the mute button in Designer to control color and brightness.
4. Network port
Connect a Cat5e (or better) cable supplying Power over Ethernet (PoE) here.
5. Reset button
◦ Network reset (press for 4-8 seconds): Resets all Shure control IP settings to factory defaults.
◦ Full factory reset (press for more than 8 seconds): Resets all network and configuration settings to the factory de­
faults.
6. Power cable
Connect to the 8-pin power connector on the base.
7. Power cable connector
