INSTALLING ThE UNIT

1
1. Find the optimal position downstream from the air handler. Ensure location in
duct has enough room for the mounting plate. It is recommended for maximum
effectiveness that the unit be placed as close to the air handler as possible.
PLEASE NOTE: The illustrations are shown installing an activTek INDUCT 10000.
procedures shown in this manual apply to both units, unless otherwise indicated.

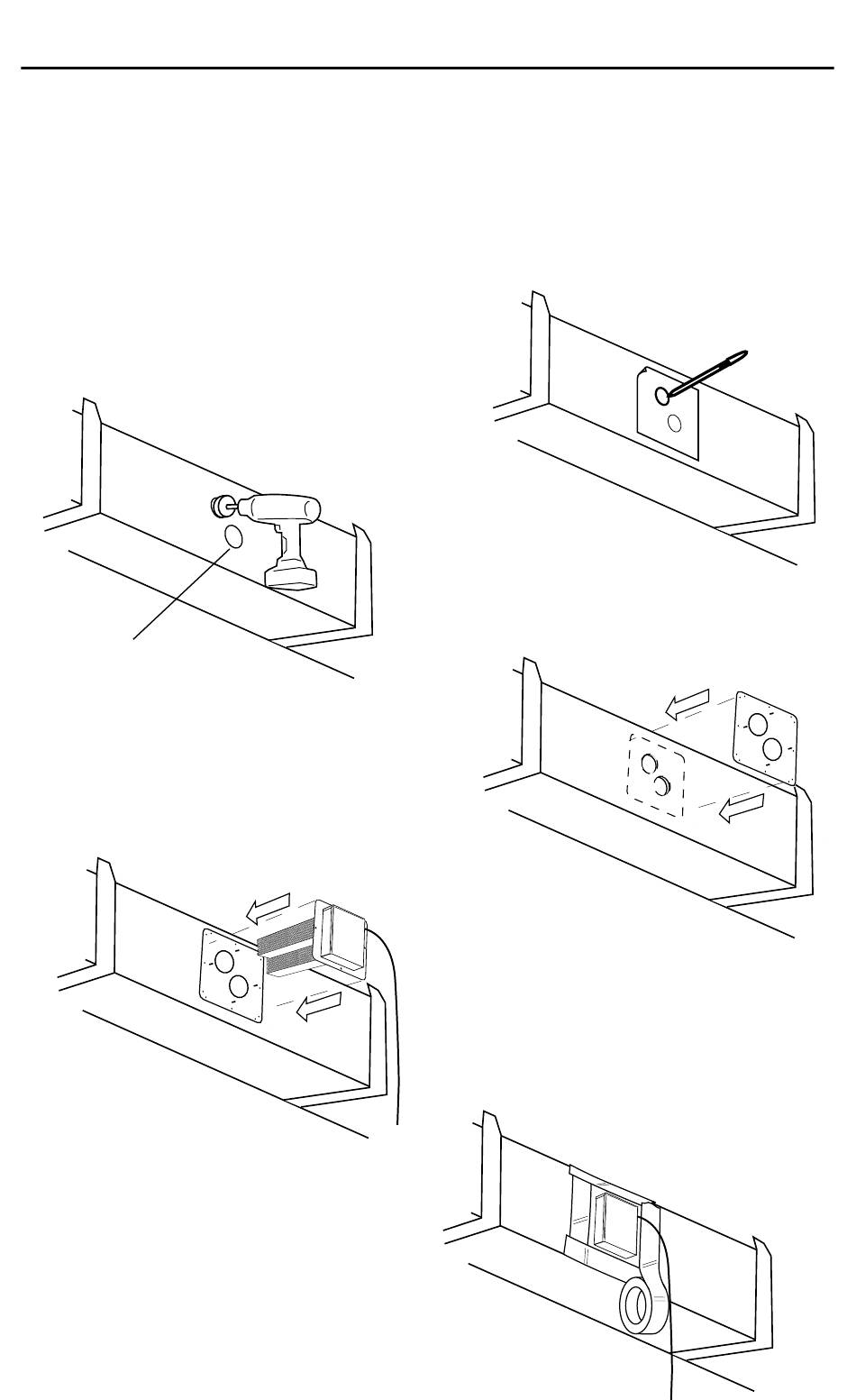

2
2. Using the appropriate template
included, mark location for
installation.
Cut the second hole for
activTek INDUCT 10000 only.
4
4. Place the mounting plate squarely
into place and fasten to ductwork
with sheet metal screws.
6
6. Unit may be taped with
aluminum HVAC tape to
provide complete seal.
6
3
3. Using a 4" (4 inch) hole saw, cut
opening(s) into ductwork.
5
5. Move ballast assembly to
location and secure to
ductwork with the four (4)
wing nuts provided.
The
