ORQA FPV.ONE User Manual

Hide thumbs Also See for FPV.ONE:
Table of Contents

Advertisement

Quick Links

FPV VIDEO GOGGLES
FPV.ONE
User Manual
Rev. 1.6 | September 2020.
Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPV.ONE and is the answer not in the manual?

Questions and answers

Related Manuals for ORQA FPV.ONE

Summary of Contents for ORQA FPV.ONE

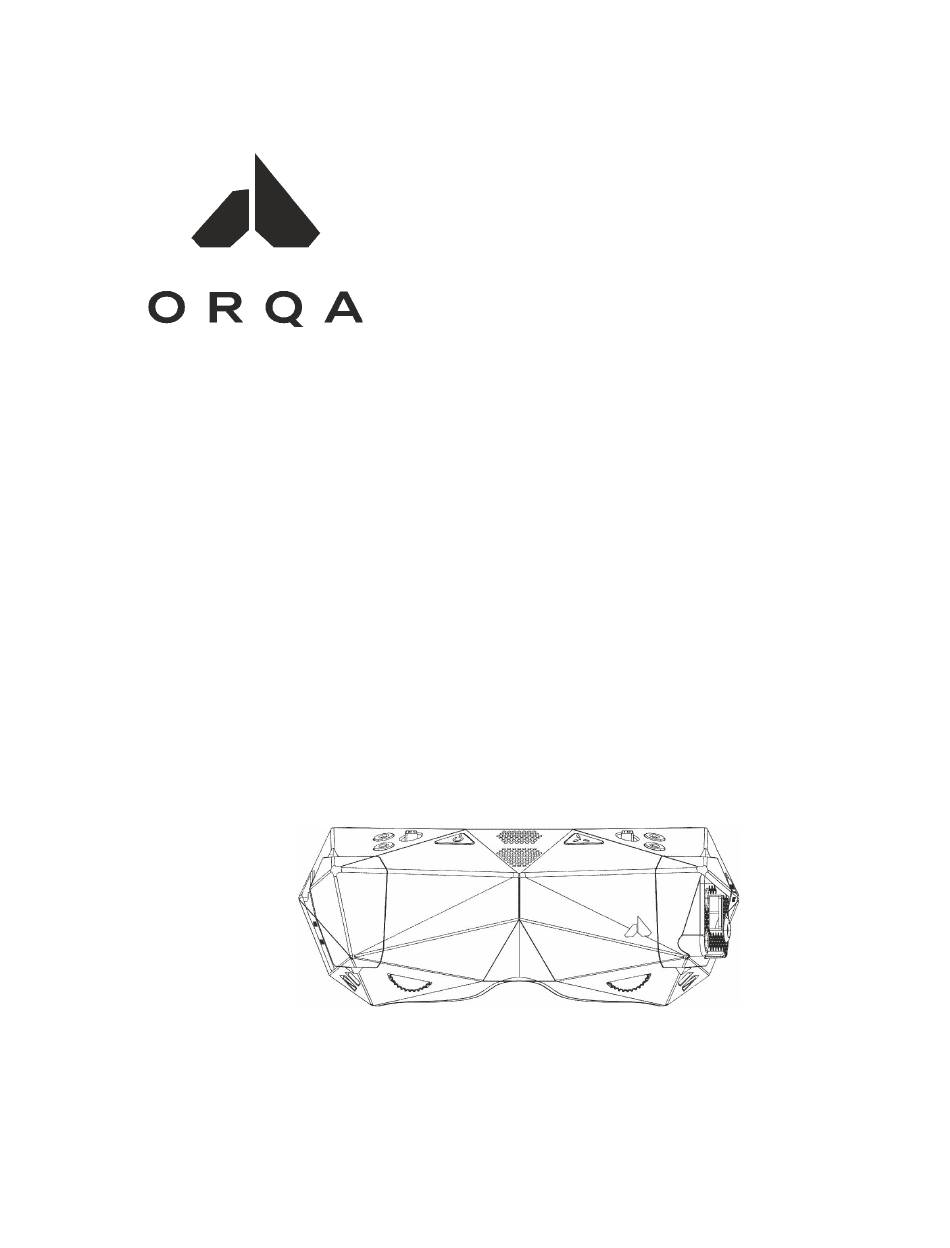

  • Page 1 FPV VIDEO GOGGLES FPV.ONE User Manual Rev. 1.6 | September 2020. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 2: Table Of Contents

    CONTROLLING THE GOGGLES NAVIGATING THE MENUS RECEIVER SETTINGS INPUT SOURCE IMAGE SETTINGS STAND BY FEATURES BATTERY ABOUT VIDEO PLAYBACK BOOT SCREEN LOGO CONNECTIONS PINOUT ORQA ORIGINAL BATTERY CHARGING THE BATTERY TECHNICAL SPECIFICATIONS Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 3: Package Contents

    PACKAGE CONTENTS Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 4 GETTING TO KNOW THE GOGGLES Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 5 Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 6 GETTING TO KNOW THE GOGGLES Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 7: Controlling The Goggles

    Channel Up Press the Channel Up Button to change the receiver channel up Additionally, long press this button to change the receiver band. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 8: Navigating The Menus

    To exit the sub-menu you can press the main joystick in the left direction ( ) or you can use the back button. Changes will be saved only if the menu is closed before turning the goggles off. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 9: Receiver Settings

    A long press on the CHANNEL UP or CHANNEL DOWN buttons changes the band on the receiver module. This feature is only available only in rapidFIRE mode. Above function is only available outside of main menu.  Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 10 Additionally, by entering the channel table in the menu you can select the desired frequency of the RapidFire receiver module. Please note that RapidFire firmware must be updated to at least version 1.3. to have the full functionallity with the Orqa goggles. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 11: Input Source

    If an HDMI source with an unsupported signal is connected, the “Unsupported HDMI Input” message will appear on-screen. Automatic setting priority 1. HDMI 2. AV in 3. RX Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 12: Image Settings

    100% of the screen. The RESET TO DEFAULT setting is used to reset all the parameters of the image to their factory-set values. PIP Image settings are not functional when HDMI is input source. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 13: Stand By

    Once the goggles are put back on, they will automatically turn back on. Please note that the Stand-by function will turn off only the micro displays and the receiver installed in the main receiver bay. The rest of the system will stay powered on. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 14: Features

    FEATURES FPV.ONE goggles are equipped with various features and settings for a better overall user experience. The ​ H EAD TRACKER feature uses goggles’ integrated IMU to track the movement of the pilots’ head. This feature requires the IMU to be reset every time this feature is used.
  • Page 15 (can be used only outside the main menu). Left joystick Up and down- brightness ● Left and right-contrast ● Right joystick Up and down- Luminescence ● Right and left-Color ● Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 16: Battery

    (or percentage) will be displayed in red color on the screen. The audible alarm will be repeated every 60 seconds. To turn the Low battery alarm on, change the setting to ON. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 17: About

    To revert all the settings to the factory settings, depress the ​ F actory reset item on the menu. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 18 Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 19: Dvr

    To start recording, press the “DVR Quick Record” button on the top side of the goggles. The button is marked with the red dot. DVR starts recording instantly from the input that is shown on the screen. During the DVR Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 20 Card in order to free some space for the current recording. Please note that the “Auto Delete” function will delete only the files created by the Orqa DVR system. All other files that might be present on the micro SD card will not be deleted.
  • Page 21 To adjust the audio recording level of the receiver installed in the receiver bay, press on the “Receiver Volume” menu item and then move the main joystick right-left to increase-decrease the value. Once set, press the Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 22 2 seconds. The SD card must be inside and if there is a video signal at the moment of inserting the SD card it will start again after a few seconds. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 23: Video Playback

    By pressing the right-hand joystick up or down, the video playback speed can be adjusted. For example, to play the video in slow motion, press the Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 24 Seek right ⇦​ Seek left ⇧​ Faster video speed ⇩​ Slower video speed Pause/resume ⬤​ Please note that the system will only recognize and display the files created by the goggles’ DVR. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 25: Boot Screen Logo

    BOOT SCREEN LOGO After the goggles have been powered up, the Orqa logo will appear by default. It is possible to change the default Orqa logo screen with your custom image. To use the custom boot screen image, you must prepare the image...

  • Page 26: Connections Pinout

    CONNECTIONS PINOUT Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.

  • Page 27: Orqa Original Battery

    6.0 and 10.0 VDC. The best way to power your goggles is to use the supplied Orqa Original Battery. The Orqa Original Battery holds two 18500 Li-ion cells inside connected in 2S configuration. The battery case features the battery fuel gauge. To check the actual battery charge level, press and hold the button on top of the battery.

  • Page 28: Charging The Battery

    CHARGING THE BATTERY The Orqa Original Battery should be recharged once the battery voltage is low. To charge the battery you will need the battery charger with the Li-ion or Li-Po charging profile. The best way to recharge the battery is the “balance charge”...

  • Page 29: Technical Specifications

    1280x960, 50/60fps, H.264, mp4 ▪ Standard receiver bay High power ▪ Secondary bay for additional modules 3.3V, SDIO, UART ▪ Weight (without battery) 232g ▪ Dimensions 177 x 99 x 72 mm Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
  • Page 30 WARRANTY WARNING! Any damage done to the product caused by the attempt to open, disassemble or modify it will void the warranty. Orqa FPV.ONE User Manual, Rev.1.6 ©2020. Orqa Ltd.
