TFP296
Page 2 of 8
Components
-
1 Frame
-
2 Button
3 -
Sealing Assembly
4 -
Bulb
5 -
Compression Screw
6 - De ector
*
-
7 Ejection Spring
*
Temperature rating is indicated
on De ector or adjacent to ori ce
seat on Frame.
1-9/16"
(39,7 mm)
**
Pipe thread connections per
ISO 7-1 can be provided on
special request.
HORIZONTAL SIDEWALL SPRINKLER
5.6 K-FACTOR, 1/2 INCH NPT
Components
DEFLECTOR
-
1 Frame
-
2 Button
3 -
Sealing Assembly
4 -
Bulb
5 -
Compression Screw
6 - De ector *
-
7 Ejection Spring
*
Temperature rating is indicated
on De ector or adjacent to ori ce
seat on Frame.
7/16" (11,1 mm)
1-1/2"
(38,1 mm)
**
Pipe thread connections per
ISO 7-1 can be provided on
special request.
HORIZONTAL SIDEWALL SPRINKLER
8.0 K-FACTOR, 3/4 INCH NPT
DEFLECTOR
HAT
*
6
7/16" (11,1 mm)
CENTERLINE
OF SPRINKLER
(11,1 mm)
WATERWAY
NOMINAL
MAKE-IN
(38,1 mm)
7/16"
(11,1 mm)

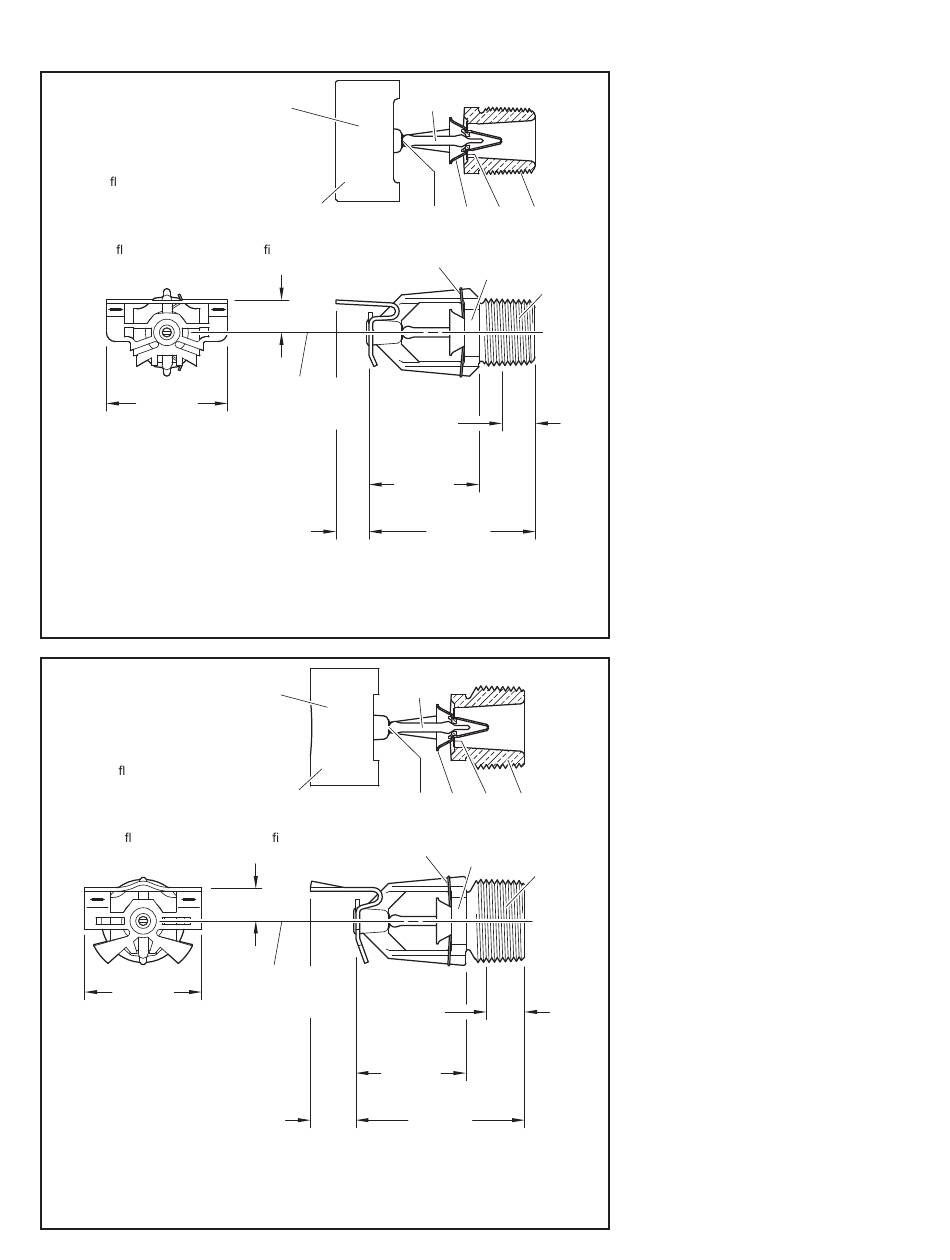

FIGURE 1
SERIES TY-FRB (TY3332)
EXTENDED COVERAGE
HAT
*
6
CENTERLINE
1/2"
OF SPRINKLER
(12,7 mm)
WATERWAY
NOMINAL
MAKE-IN
1-1/2"
(38,1 mm)
9/16"
(14,3 mm)
FIGURE 2
SERIES TY-FRB (TY4332)
EXTENDED COVERAGE
4
5 2 3 1
WRENCH
7
FLATS
**
1/2"
NPT
7/16"
1-1/2"
2-3/16"
(55,6 mm)
4
5 3
2 1
WRENCH
7 **
3/4"
FLATS
NPT
2-1/4"
(57,2 mm)
Technical
Data
Approvals
UL and C-UL Listed
FM and NYC Approved
(Refer to Table A for complete approval infor-
mation including corrosion resistant status,
as well as the Design Criteria section per-
taining to special design considerations.)
Maximum Working Pressure
Refer to Table B.
Discharge Coefficient
K=5.6 gpm/psi 1/2 (80,6 lpm/bar
K=8.0 gpm/psi 1/2 (115,2 lpm/bar
Temperature Ratings
Refer to Table A.
Finishes
Sprinkler: Refer to Table E.
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . Brass/Copper
Button . . . . . . . . . . . . . . . . . . . . . . Brass/Copper
Sealing Assembly . . Beryllium Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . Copper

Operation

The glass bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and water to flow.
Design
Criteria
TYCO Series TY-FRB 5.6 and 8.0
K-factor Extended Coverage Horizon-
tal Sidewall Sprinklers Quick and Stan-
dard Response (Light Hazard) must be
installed and utilized in Light Hazard
Occupancies, under smooth ceilings
as outlined in the appliable installation
standard recognized by the Approval
Agency (e.g., UL recognizes NFPA 13,
and FM recognize the FM Loss Preven-
tion Data Sheets). Only the Style 10,
20, 30, or 40 Recessed Escutcheon, as
applicable, is to be used for recessed
installations.
