Installation

The Series TY-FRB, 5.6 K-factor, Hori-
zontal and Vertical Sidewall Sprinklers
must be installed in accordance with
this section.
General Instructions
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 in.
(1,6 mm) for the 135°F (57°C) to
3/32 in. (2,4 mm) for the 286°F (141°C)
temperature ratings.
A leak tight 1/2 in. NPT sprinkler joint
should be obtained with a torque of
7 to 14 lb-ft (9,5 to 19,0 N·m). Higher
levels of torque may distort the sprin-
kler and cause leakage or impairment
of the sprinkler.
Do not attempt to make-up for insuf-
ficient adjustment in the escutcheon
plate by under-or over-tightening the
sprinkler. Readjust the position of the
sprinkler fitting to suit.
Series TY-FRB Horizontal and
Vertical Sidewall Sprinkler
Installation
The Series TY-FRB Horizontal and
Vertical Sidewall Sprinklers must be
installed in accordance with the fol-
lowing instructions.
Step 1. Horizontal sidewall sprinklers
are to be installed in the horizontal
position with their centerline of water-
way perpendicular to the back wall and
parallel to the ceiling. The word "TOP"
on the Deflector is to face towards the
ceiling.
Vertical sidewall sprinklers are to be
installed in the pendent or upright
position with the arrow on the Deflec-
tor pointing away from the wall.
Step 2. With pipe thread sealant
applied to the pipe threads, hand
tighten the sprinkler into the sprinkler
fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
6 Sprinkler Wrench (Ref. Figure 5), With
reference to Figure 1 or 2, the W-Type
6 Sprinkler Wrench is to be applied to
the wrench flats.
* **
Temperature Pipe thread
rating is connections
indicated on per ISO 7-1 can
De ector. be provided on
special request.
ESCUTCHEON
PLATE SEATING
1/2"
SURFACE
NPT
2-3/16"
(55,6 mm)
1-1/2"
(38,1 mm)
SHOWN
PENDENT

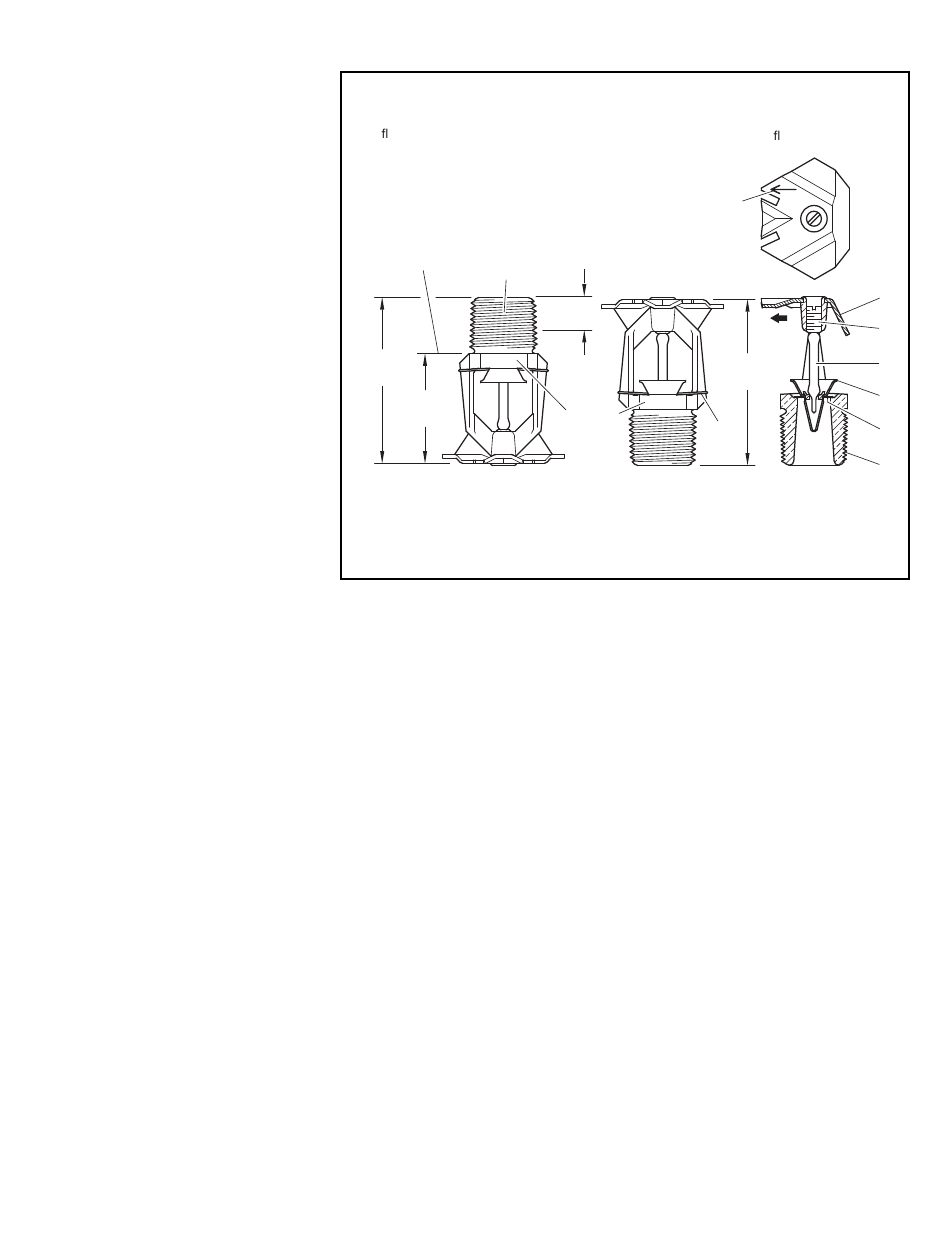

5.6 K-FACTOR QUICK RESPONSE
SERIES TY-FRB VERTICAL SIDEWALL (TY3431) SPRINKLERS
Series TY-FRB Recessed
Horizontal Sidewall Sprinkler
Installation
The Series TY-FRB Recessed Horizon-
tal Sidewall Sprinklers must be installed
in accordance with this section.
Step A. Recessed horizontal sidewall
sprinklers are to be installed in the hori-
zontal position with their centerline of
waterway perpendicular to the back
wall and parallel to the ceiling. The
word "TOP" on the Deflector is to face
towards the ceiling.
Step B. After installing the Style 10 or
20 Mounting Plate over the sprinkler
threads, hand tighten the sprinkler into
the sprinkler fitting.
Step C. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
7 Recessed Sprinkler Wrench (Ref.
Figure 6). With reference to Figure
1, the W-Type 7 Recessed Sprinkler
Wrench is to be applied to the sprin-
kler wrench flats.
Step D. After the ceiling has been
installed or the finish coat has been
applied, slide on the Style 10 or 20
Closure over the Series TY-FRB Sprin-
kler and push the Closure over the
Mounting Plate until its flange comes
in contact with the ceiling.
-
1 Frame
-
2 Button
3 -
Sealing
Assembly
ARROW MUST
POINT AWAY
FROM AND BE
7/16"
PERPENDICULAR
(11,1 mm)
TO THE BACK
NOMINAL
**
WALL SURFACE
MAKE-IN
WRENCH
FLATS
SHOWN
UPRIGHT
FIGURE 2
Care and
Maintenance
The Series TY-FRB, 5.6 K-factor, Hori-
zontal and Vertical Sidewall Sprinklers
must be maintained and serviced in
accordance with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Absence of an escutcheon, which is
used to cover a clearance hole, may
delay the time to sprinkler operation in
a fire situation.
Sprinklers that are found to be leaking
or exhibiting visible signs of corrosion
must be replaced.
Automatic sprinklers must never be
painted, plated, coated or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Care must be exercised to avoid
damage to the sprinklers before,
during, and after installation. Spriklers
TFP176
Page 3 of 6
4 - 7 -
Bulb Ejection
5 -
Spring
Compression
Screw
6 - De ector
*
*
6
5
FLOW
2-3/16" 4
(55,6 mm)
2
7
3
1
CROSS
SECTION
