MOUNTING
SURFACE
CLOSURE
SERIES
TY-FRB
MOUNTING
PLATE
1-1/4" (31,8 mm)
3/4" (19,1 mm)

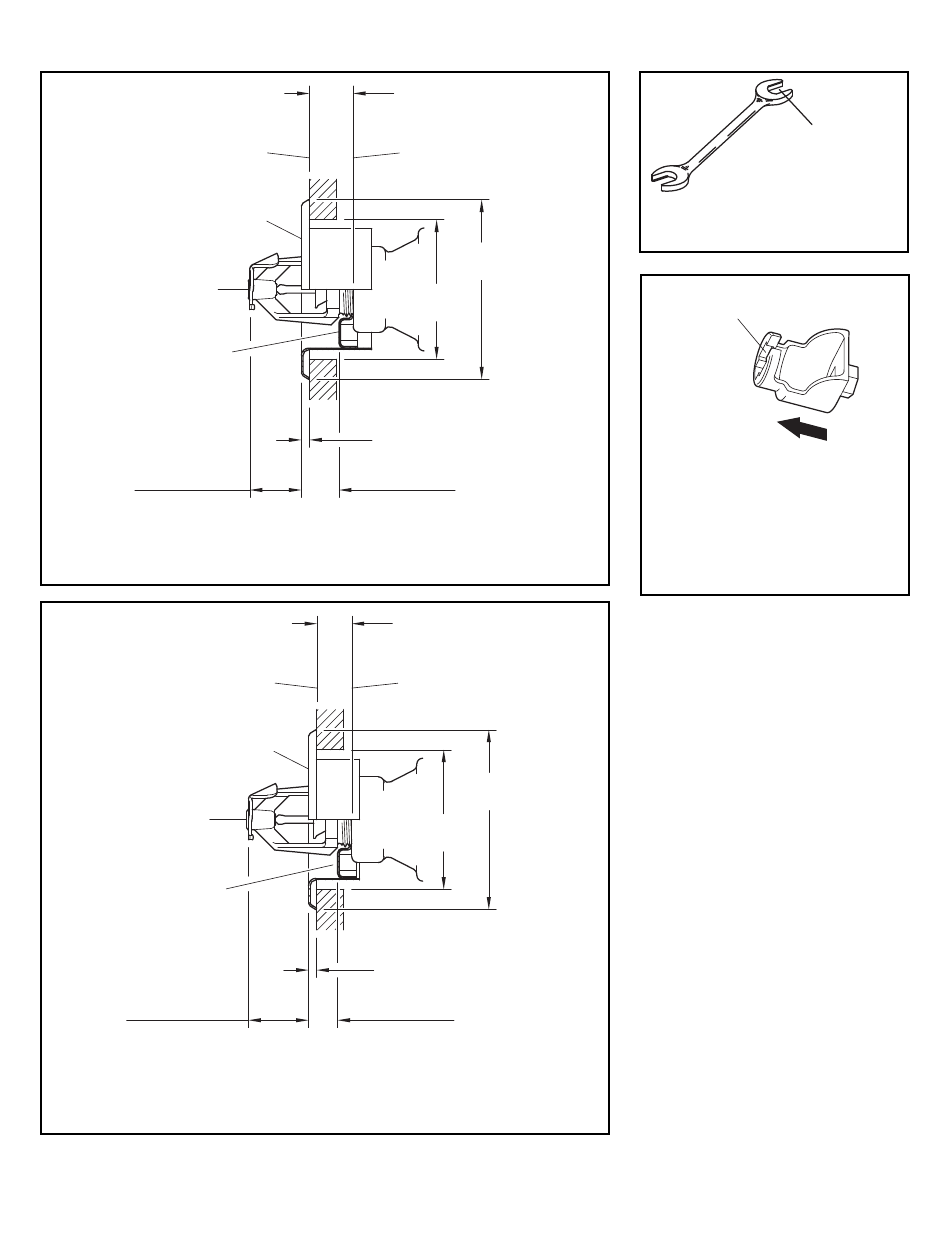

SERIES TY-FRB RECESSED HORIZONTAL SIDEWALL SPRINKLER
WITH TWO-PIECE 3/4 INCH TOTAL ADJUSTMENT
STYLE 10 RECESSED ESCUTCHEON
MOUNTING
SURFACE
CLOSURE
SERIES
TY-FRB
MOUNTING
PLATE
1-1/4" (31,8 mm)
1" (25,4 mm)
SERIES TY-FRB RECESSED HORIZONTAL SIDEWALL SPRINKLER
WITH TWO-PIECE 1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON
5/8±1/4"
(15,9±6,4 mm)
FACE OF
SPRINKLER
FITTING
2-7/8" DIA.
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/8"
(3,2 mm)
3/4" (19,1 mm)
1/4" (6,4 mm)
FIGURE 3
1/2±1/8"
(12,7±3,2 mm)
FACE OF
SPRINKLER
FITTING
2-7/8" DIA.
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/8"
(3,2 mm)
1/2" (12,7 mm)
1/4" (6,4 mm)
FIGURE 4
WRENCH RECESS
(END "A" USED FOR
1/2" NPT MODELS)
FIGURE 5
W-TYPE 6
SPRINKLER WRENCH
WRENCH
RECESS
PUSH WRENCH
IN TO ENSURE
ENGAGEMENT
WITH SPRINKLER
WRENCHING AREA
FIGURE 6
W-TYPE 7 RECESSED
SPRINKLER WRENCH
