Connection and Operation
●

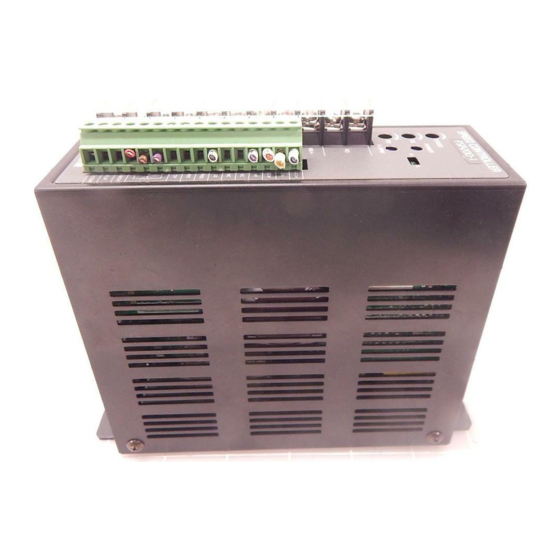

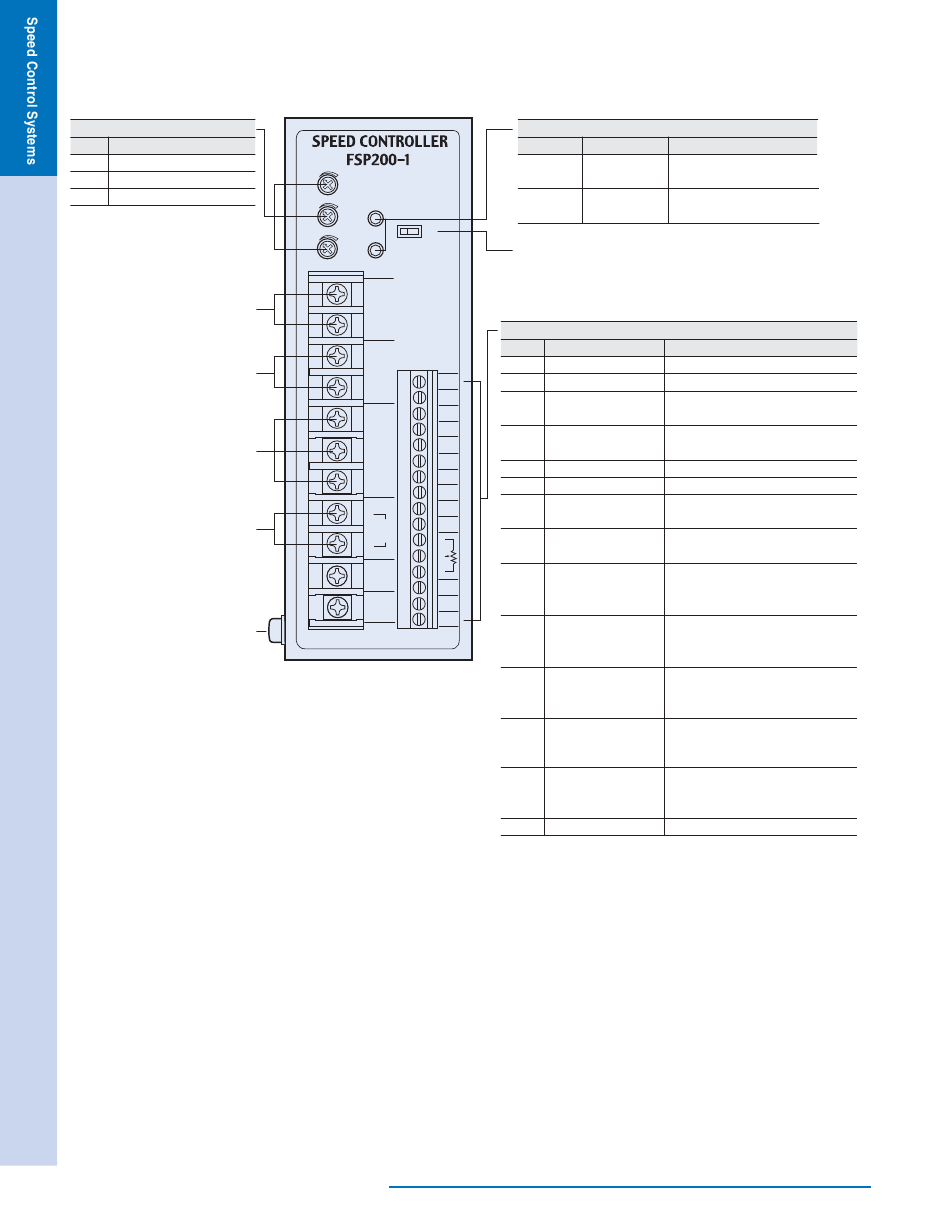

Names and Functions of Speed Controller Parts
Internal Potentiometer
Display Function
SPEED Internal Speed Potentiometer
SS Acceleration Time Potentiometer
SD Deceleration Time Potentiometer
Regeneration Unit Terminals
Electromagnetic Brake Terminals
Motor Connection Terminals
Power Connection Terminals
Protective Earth Terminals
●The speed controller shown above uses a single-phase 100/115 VAC power supply input.
B-150
ORIENTAL MOTOR GENERAL CATALOG 2009/2010
SPEED
POWER
SS
L
H
Switch
SD
Set the switch to "H" if the cable between the motor and speed controller is
ALARM
less than 10 m (32.8 ft.) in length. Set it to "L" if the cable length exceeds
10 m (32.8 ft.).
RG
Display
MB+
I-COM
CW
I-COM
MB-
CW
CCW
CCW
U
MO
MO
NC
V
NC
NC
SD
W
NC
FREE
RST
SD
L
100/ TP
115V
~
H
FREE
N
M
L
NC
RST
S-MON
ALM
FG
O-COM
TP
ORIENTAL MOTOR
H, M, L
S-MON
ALM
O-COM
Features B-138 / System Configuration B-139
LED Display
Display Function Lighting Condition
Turns on (green)
POWER Power Indicator
while power is being supplied.
Turns on (red) or blinks when
ALARM Alarm Indicator
protective function is activated.
Input/Output Signal Terminals Block
Signal Name
Ground Terminal for Input Signals Ground terminal for input signals
Clockwise Direction Input Clockwise direction/stop switching input signal
Counterclockwise Counterclockwise direction/stop
Direction Input switching input signal
Speed Setting Internal/external speed setting
Switching Input switching input
−
−
Instantaneous stop/deceleration stop
Slow Down Input
switching input
Electromagnetic Brake Electromagnetic brake releases/locks
Release Input switching input
This input functions as the Alarm-RESET
Alarm Reset Input
input when a speed controller protective
functions is activated.
This input is used to connect the lead wire
Thermal Signal Input
of the regeneration unit's internal thermal
protector.
These are connected for speed control by
the external speed potentiometer or
Speed Setting Input
external DC voltage.
This output is used to monitor the motor
speed. Pulse signals at a rate of 12 pulses
Speed Monitor Output
per rotation of the motor output shaft.
When the protective function is activated,
this output is set to OFF and the motor
Alarm Output
stops.
Ground Terminal for Output Signals Ground terminal for output signals
