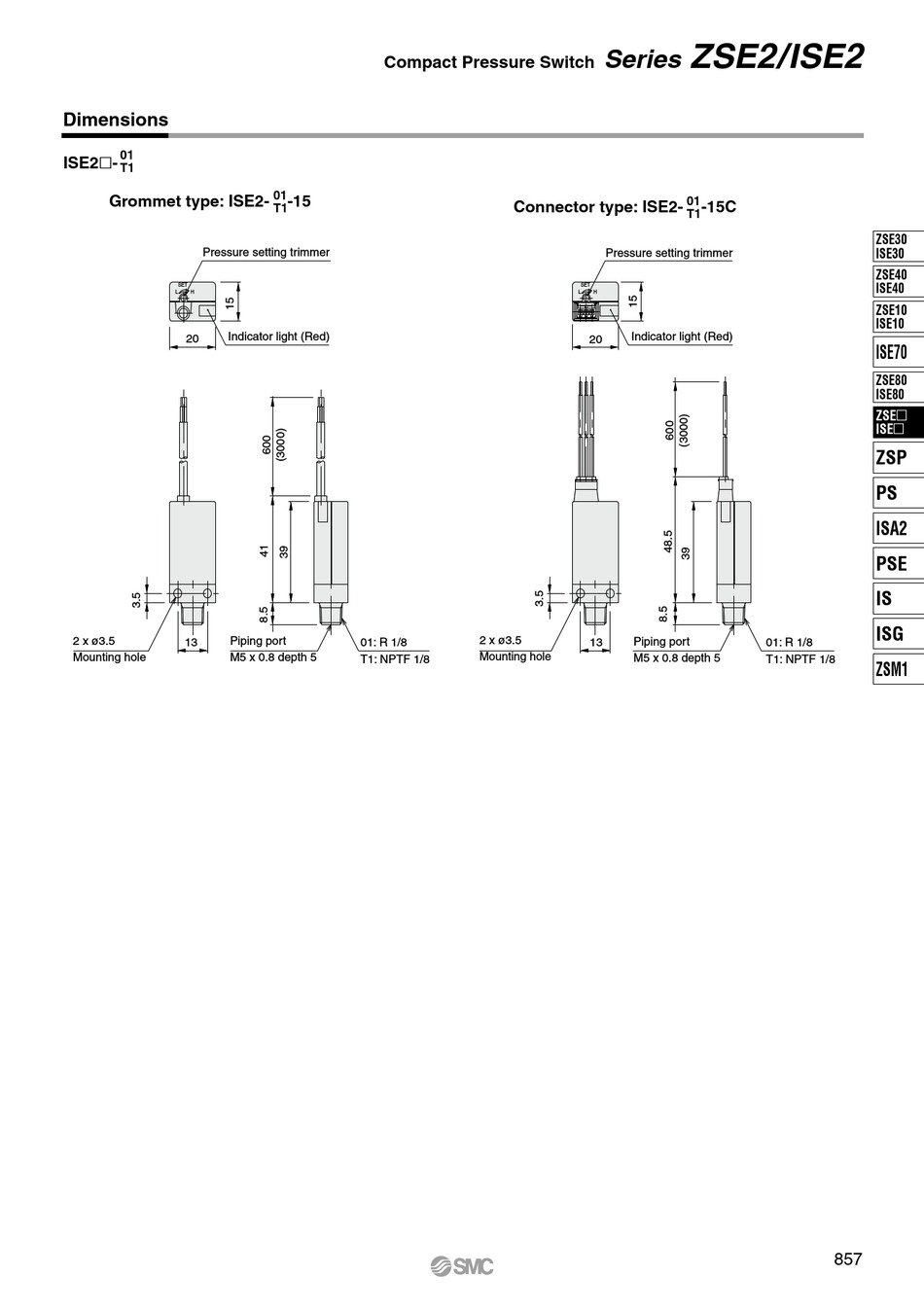

Dimensions
01
ISE2-
T1
Grommet type: ISE2-
Pressure setting trimmer
SET
L H
Indicator light (Red)
20
2 x ø3.5 Piping port
13
Mounting hole
M5 x 0.8 depth 5
Compact Pressure Switch
01
-15
T1
01: R 1/8
T1: NPTF 1/8
Series
Connector type: ISE2-
Pressure setting trimmer
SET
L H
Indicator light (Red)
20
2 x ø3.5
Piping port
13
Mounting hole
M5 x 0.8 depth 5
ZSE2/ISE2
01
-15C
T1
01: R 1/8
T1: NPTF 1/8
857
ZSE30
ISE30
ZSE40
ISE40
ZSE10
ISE10
ISE70
ZSE80
ISE80
ZSE ZSE
ISE ISE
ZSP
PS
ISA2
PSE
IS
ISG
ZSM1
