Compact Pressure Switch
Series
Operating pressure range/
Setting pressure range
Positive
pressure
Vacuum
01 Single mounting R
T1
Single mounting NPTF
0X W/suction filter (Mounting on ZX unit) M5 x 0.8
0XY W/suction filter (Mounting on ZX unit) M6 x 1 (Option)
Base mounting (Mounting on ZR unit)
0R
Note 2) Single mounting type: M5 x 0.8 (female) threaded.
852

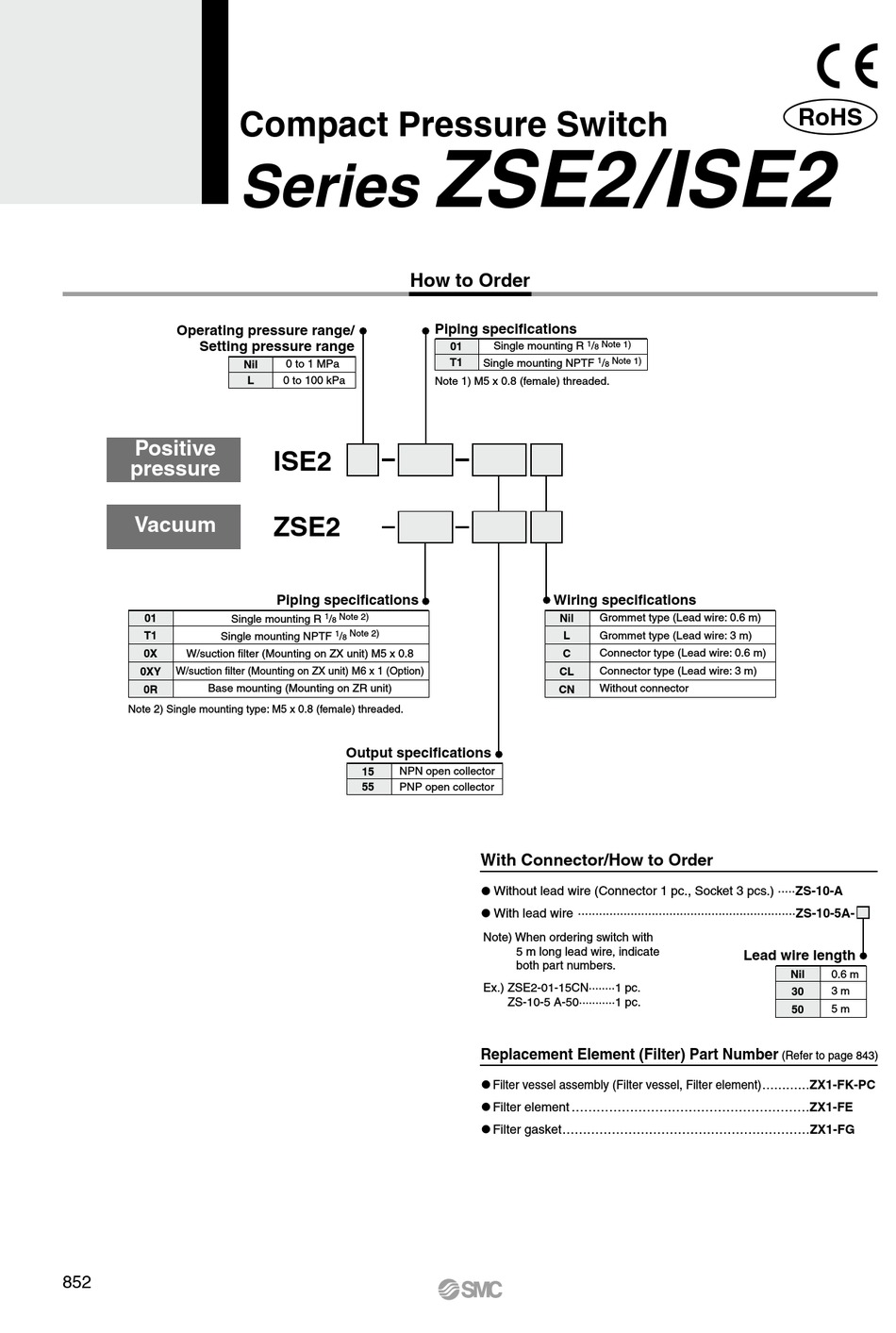

How to Order

Nil 0 to 1 MPa
L 0 to 100 kPa
ISE2
ZSE2
Piping specifications
1 Note 2)
/
8
Note 2)
1
/
8
Output specifications
15 NPN open collector
55
PNP open collector
ZSE2/ISE2
Piping specifications
1 Note 1)
01 Single mounting R /
8
T1 1
Single mounting NPTF /
8
Note 1) M5 x 0.8 (female) threaded.
Wiring specifications
Grommet type (Lead wire: 0.6 m)
Nil
L Grommet type (Lead wire: 3 m)
C Connector type (Lead wire: 0.6 m)
CL Connector type (Lead wire: 3 m)
Without connector
CN
With Connector/How to Order
Without lead wire (Connector 1 pc., Socket 3 pcs.) ·····ZS-10-A
With lead wire ······························································ZS-10-5A-
Note) When ordering switch with
5 m long lead wire, indicate
both part numbers.
Ex.) ZSE2-01-15CN········1 pc.
ZS-10-5 A-50···········1 pc.
Replacement Element (Filter) Part Number
Filter vessel assembly (Filter vessel, Filter element) ............ZX1-FK-PC

Filter element .........................................................ZX1-FE

Filter gasket............................................................ZX1-FG

Note 1)
Lead wire length
(Refer to page 843)
RoHS
Nil 0.6 m
30 3 m
50 5 m
