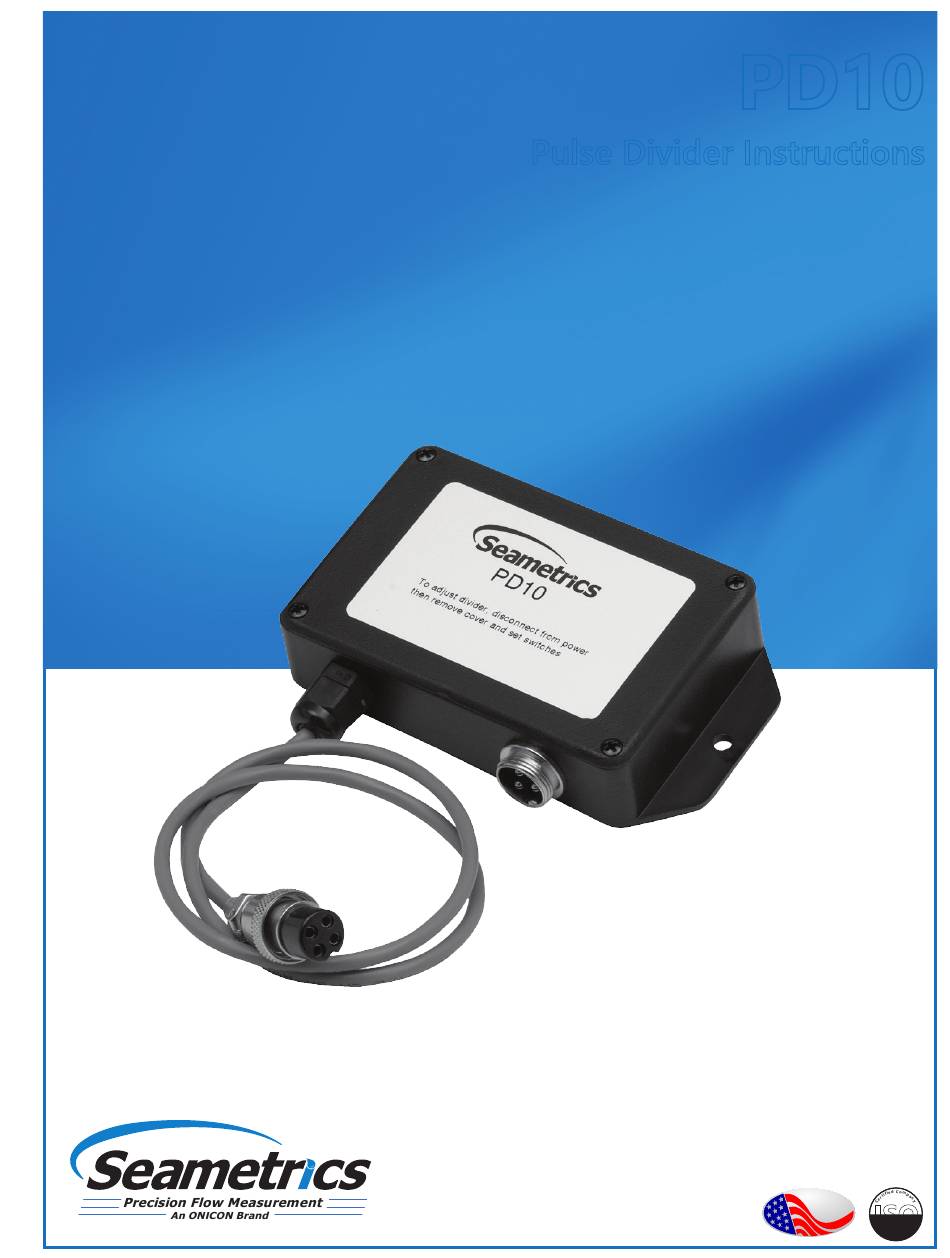

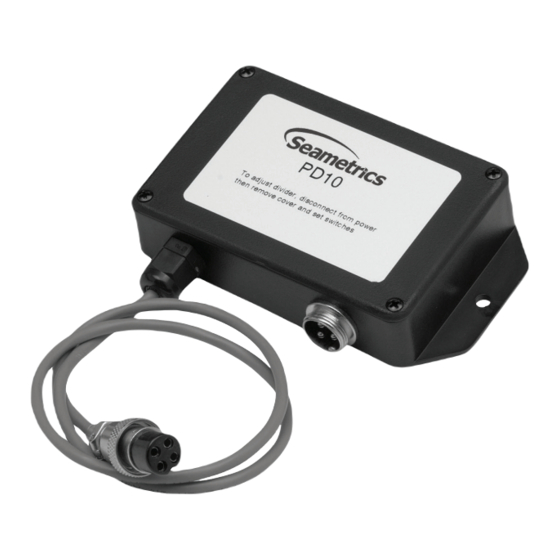

- Page 1 PD10 Pulse Divider Instructions PROUDLY MADE IN THE 9001...
-
Page 2: Table Of Contents
Power Source.................................Page 4 Connections and Settings PD10W/LMI Pump ...............................Page 5 PD10W/Non-LMI Pump ............................Page 5 Settings ....................................Page 5 Troubleshooting Problem ...................................Page 6 Probable Causes ................................Page 6 Things to Try ..................................Page 6 Warranty Seametrics Limited Warranty ..........................Page 7 Seametrics • 253.872.0284 Page 2 seametrics.com... -
Page 3: General Information
Each time the divider has received the set number The PD10 is mounted by attaching it to the metering pump of pulses from the meter, it puts out one pulse to stroke the with the included double-backed, pressure-sensitive tape. -
Page 4: Specifications
Output Connection Pump connector on 24 inch lead Environmental NEMA 4X, IP66 * Specifications subject to change. Please consult our web site for current data (seametrics.com) Mounting Power Source The PD10 is mounted by attaching it to the metering pump Power for the PD10 can be supplied by the metering with the included double-backed, pressure-sensitive tape. -
Page 5: Connections And Settings
The input connector on the control mates with any three- to the unit by removing the connector from the pump pin Seametrics connector. (Meters or flow sensors to be or unplugging the power adapter. used with a PD10W should be ordered with Seametrics connectors.) -
Page 6: Troubleshooting
Check or tighten threaded locking ring (LMI) Pump doesn't supply power to the PD10 Check pump manual, add power supply PD10 set to large number or all zeros Check rotary switches, especially for leading zeros. Pump strokes continually Pump not set for external pacing... -
Page 7: Seametrics Limited Warranty
CONSEQUENTIAL DAMAGE CAUSED BY THE USE OR MISUSE OF, OR INABILITY TO USE THE PRODUCTS, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SEAMETRICS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST SEAMETRICS BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SEAMETRICS AND CAUSING THE ALLEGED DAMAGE. - Page 8 Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-65200031r.2.0-20180405 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com 4/5/2017...
