Summary of Contents for Seametrics PD10

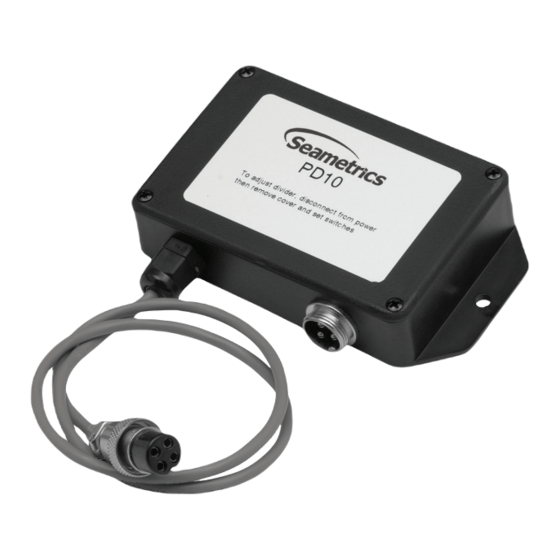

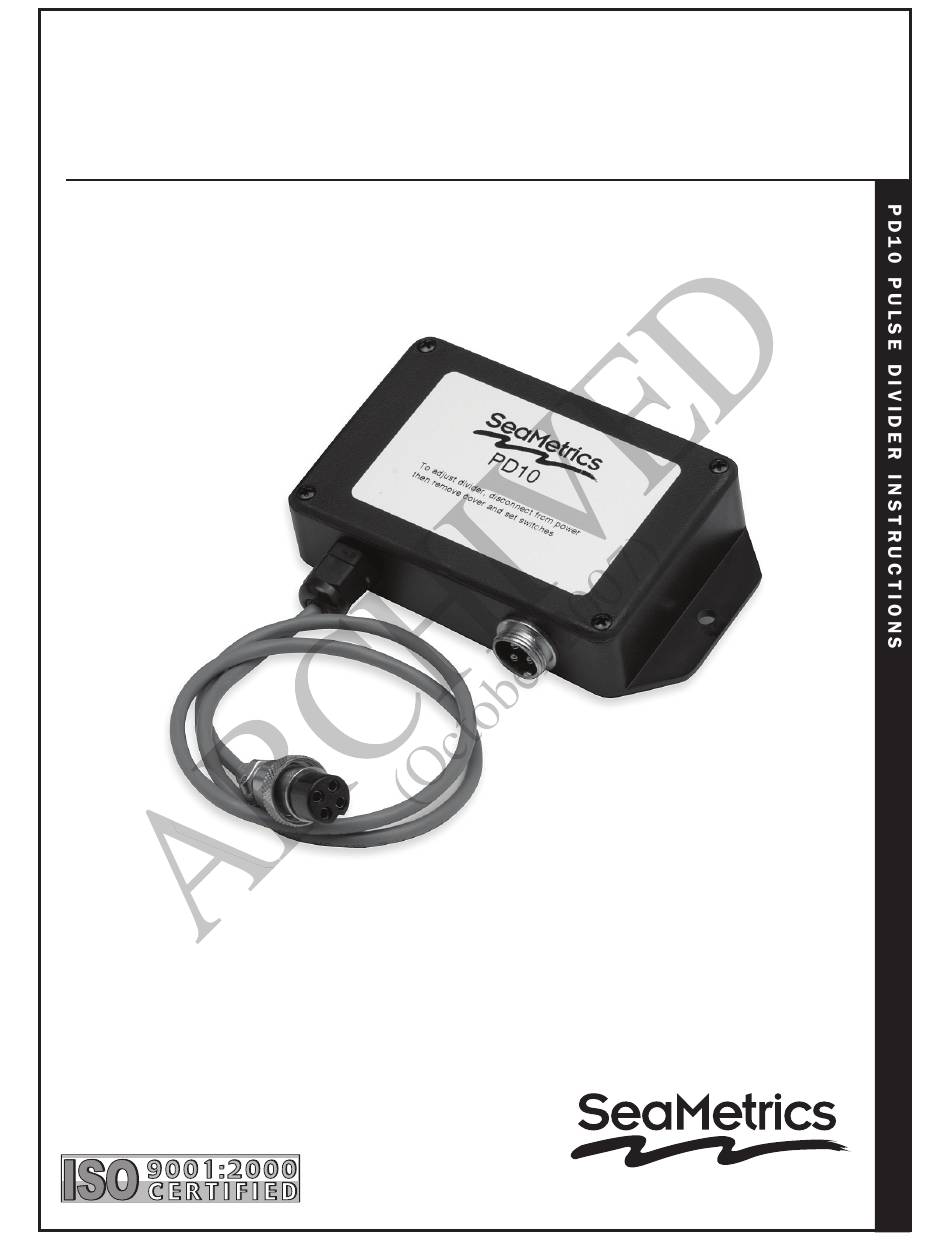

- Page 1 PD10 PULSE DIVIDER InStRUctIonS The Leader in Flow Meter Value...
- Page 2 Each time the divider has received the set number of pulses from the meter, it puts out one pulse to stroke the pump. Power for the PD10 can be supplied by the metering pump if The PD10 is also useful in boiler and cooling tower feed the pump has a sensor power supply.
- Page 3 The 24" pigtail that extends from the PD10W connects to an LMI metering pump and is connected as shown. The input connector on the control mates with any three-pin SeaMetrics connector. (Meters or flow sensors to be used with a PD10W should be ordered with SeaMetrics connectors.) PD10W/LMI Pump...
- Page 4 Check or tighten threaded locking ring (LMI) Pump doesn’t supply power to the PD10 Check pump manual, add power supply PD10 set to large number or all zeroes Check rotary switches, esp. for leading zeroes Pump strokes continually Pump not set for external pacing...
