Summary of Contents for SystemAir DVP Series

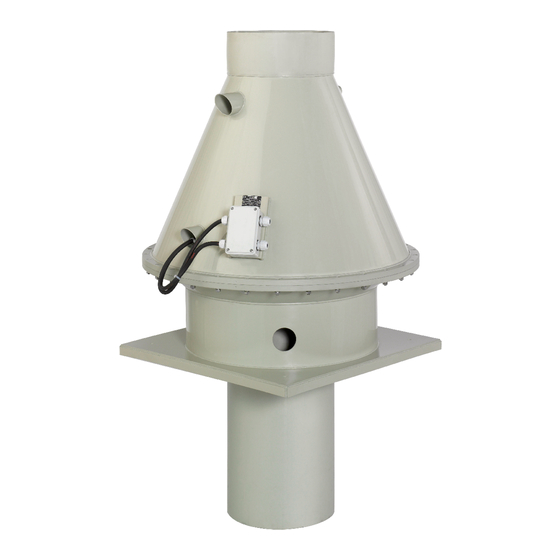

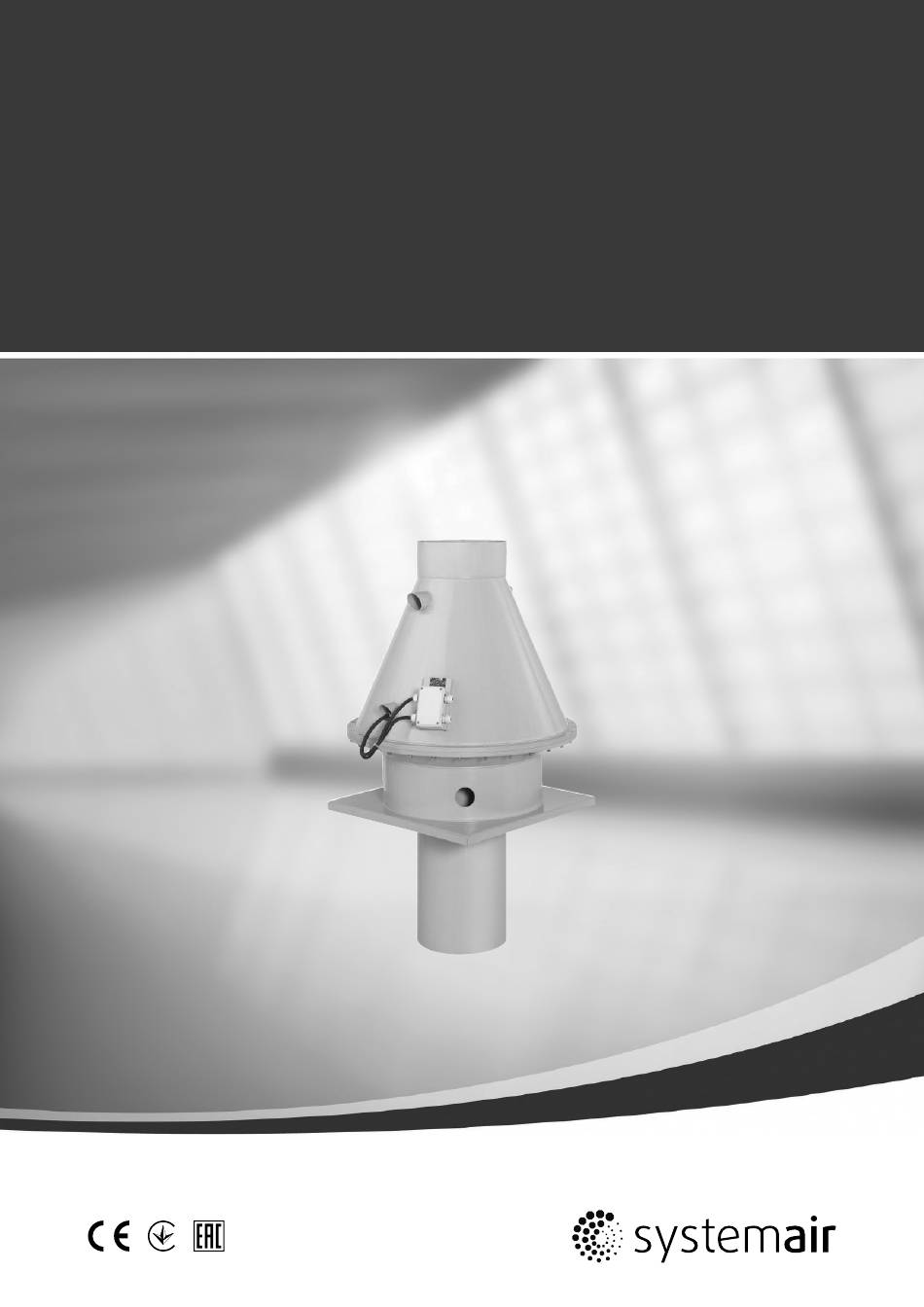

- Page 1 Roof fan plastic Installation and Operating Instructions Document in original language | · 002...
- Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. | 002...
-
Page 3: Table Of Contents
Contents General information .........1 Notice symbols ........1 1.1.1 Instruction symbols.....1 Important safety information ......1 Personnel ..........1 Personal protective equipment....2 5 rules of electrical safety ......2 Warranty ............2 Delivery, transport, storage .......2 Description ............4 Dimension ..........4 Technical data ........5 Chemical components ......5 Intended use .........5 Incorrect use ........5 Name plate and type key ........6... -
Page 5: General Information
General information | General information Notice symbols Danger Caution Hazard with a low risk Direct hazard Failure to comply with this warning may lead to Failure to comply with this warning will lead moderate injuries. directly to death or to serious injury. Important Warning Hazard with risk of damage to objects... -
Page 6: Personal Protective Equipment
Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this document. The maintenance plan must be created by the operator, see section 12.2 Maintenance, page 12. - Page 7 Delivery, transport, storage | Unpacking Warning When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc. ♦ Unpack the fan carefully. ♦ Check the fan for obvious transport damage. ♦ Only remove the packaging shortly before assembly. Transport Safety information Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction.
-
Page 8: Description
| Description Description Motor ventilation air inlet Motor ventilation air outlet Drain in horizontal position Drain in vertical position Dimension Table 2 Dimensions [mm] ØC ØD ØE ØF ØM DVP 200DD2–4 1065 4x10 DVP 250DD2–4 4x12 DVP 315D4–8 1161 4x12 DVP 400D4–8 1134 4x14... -
Page 9: Technical Data
Description | Technical data Max. ambient temperature [°C] Max. temperature of transported air [°C] see data sheet, available in our online catalogue. Sound pressure [dB] Voltage, current, frequency, enclosure class, weight see name plate of the fan The motor data can be found on the name plate of the motor, or in the technical documents of the motor manufacturer. -
Page 10: Name Plate And Type Key
| Name plate and type key Name plate and type key Type designation made in France/UE Production number Execution Impeller speed Type : DVP 400D4-8L Poids total/ Air volume Total weight: Pressure N°fab/Fab number : V14172 71 Kgs Input power Execution : EXE 3 Max. -
Page 11: Accessories
Accessories | Accessories Note: For details of the accessories, please check our online catalog or contact Systemair. Table 4 Accessories Back draft damper VKS-DVP Inlet flange ASF-DVP ASS-DVP Flexible inlet connection Flat roof socket Slanting roof socket Note: If the degree of inclination is higher than 5°, a SDS (Slanting roof socket) has to be used. -
Page 12: Installation Positions
♦ Potentially, the fans may become charged with static control input. electricity. If this represents a risk, please contact Systemair. Protective grounding wire The protective grounding must have a cross-section equal to or greater than that of the phase conductor. -
Page 13: Protecting The Motor
Commissioning | Low speed connection High speed connection Protecting the motor Important Damage to motor due to overcurrent, overload or short circiut. ♦ Lead-out temperature monitors must be integrated in the control circuit in such a way that, if a fault occurs, the motor cannot switch on again automatically after it has cooled down. -
Page 14: Operation
12.1 Troubleshooting Table 5 Troubleshooting Remedy Problem Possible causes Rebalancing by a specialist company if possible, Impeller imbalance otherwise contact Systemair. Soiling on the impeller Clean carefully, rebalance Material decomposition on the impeller due to aggressive Contact Systemair material conveyed. - Page 15 Improve cooling. Electronics/motor Check if the correct fan is used for your application. Overloaded motor overheated Ambient temperature too high Check if the correct fan is used for your application. Note: For all other damage/defects, please contact Systemair. | 002...
-
Page 16: Maintenance
Check the flexible connectors for damage. See normal operating conditions Spare parts ♦ Use original spare parts from Systemair only. ♦ When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate. Cleaning 13.1 Safety information ♦... -
Page 17: Procedure
♦ Disassemble the fan into its components. ♦ Separate the parts according to: • reusable material • material groups to be disposed of (metal, plastics, electrical parts, etc.) EU Declaration of conformity The manufacturer: Systemair GmbH Seehöfer Straße 45 97944 Boxberg Germany Product designation: Roof fans Type designation: DVS;... - Page 18 | Commissioning Report Description: Article no.: Manufacturing order no.: Installer Company: Contact person: Company address: Tel. no.: Email: Operator (Place of installation) Company: Contact person: Company address: Tel. no.: Email: Type of connection □ □ Directly to mains □ □ 0-10 V signal (EC motor) □...
- Page 19 Commissioning Report | Current L3 [A]: Differential pressure [Pa]*: *For single-phase fans, fill in line “Current L1 [A]” *Δ- Pressure between suction-side and discharge of the fan If an air flow measurement is not possible, this value can be calculated using the following formula: Flow speed [m/s] Duct cross-section [m²] Air volume [m³/s]:...
- Page 20 Systemair GmbH Seehöfer Str. 45 97944 Boxberg Germany Tel.: +49 (0)7930/9272-0 Fax: +49 (0)7930/9273-92 info@systemair.de www.systemair.de...
