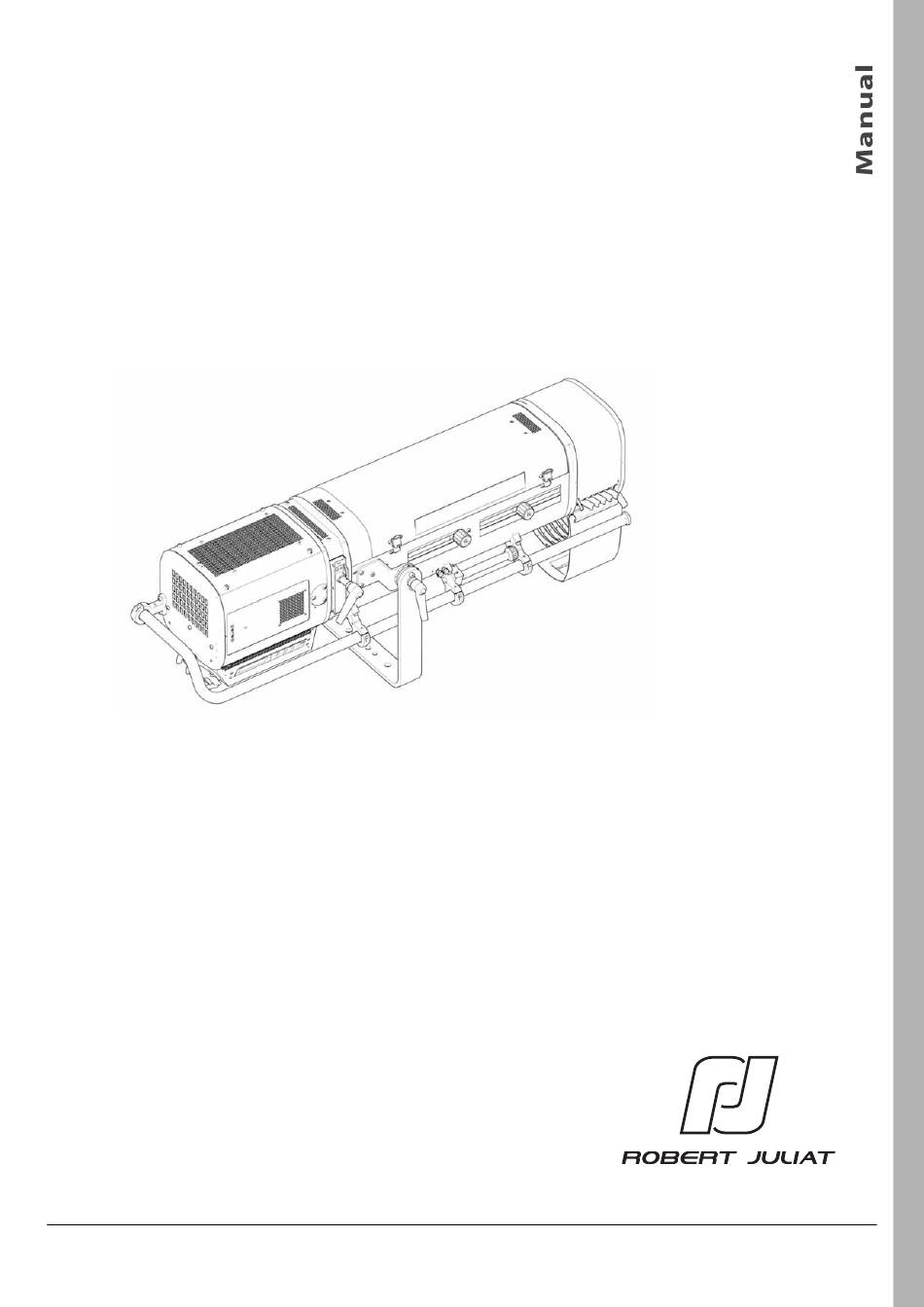

RJ NET
FOR COMPACT FOLLOWSPOT RANGE
DMX-CONTROL OF MOTORISED DIMMER
Product version :
- "LUCY" 1449 : V3

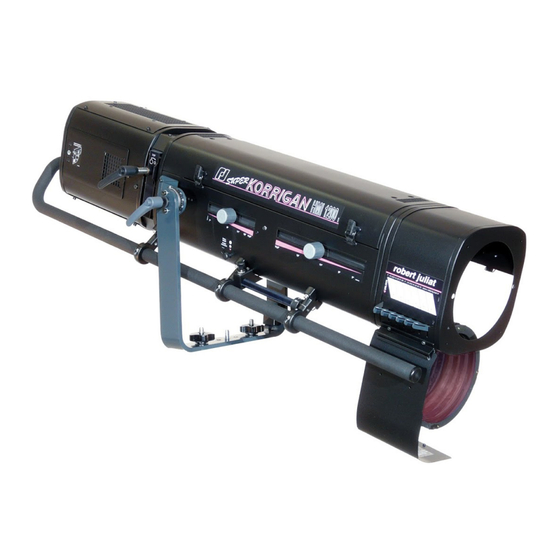

- "SUPER KORRIGAN" 1149 : V3
- 'FLO" 1459 : V3
- "VICTOR" 1159 : V4
Software version :
- Dimmer card : V1-03
- Control Board card : V1-06
VALIDATION : 01/01/10
DN40974701
Robert Juliat S.A.S. Route de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr
Robert Juliat U.S.A.
48 Capital Drive, Wallingford, CT 06492
SHUTTER AND LAMP IGNITION
-
phone : (203) 294 0481 - fax : (203) 294 0482 - info@robertjuliatamerica.com
•
1149B - SUPER KORRIGAN
•
1449B - LUCY
•
1159B - VICTOR
•
1459B - FLO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robert Juliat RJ NET SUPER KORRIGAN
Summary of Contents for Robert Juliat RJ NET SUPER KORRIGAN
- Page 1 VALIDATION : 01/01/10 DN40974701 Robert Juliat S.A.S. Route de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr Robert Juliat U.S.A. 48 Capital Drive, Wallingford, CT 06492...
-
Page 2: Table Of Contents
5.1.7 Shutter limit stop ......................13 5.2 Analyse ............................13 5.3 Spare parts ..........................14 6 Troubleshooting ..........................14 Robert Juliat reserve the right to change or alter any of the items detailed in this document, to increase or improve manufacturing techniques without prior notice. -
Page 3: User Instructions
1 User instructions GENERAL INSTRUCTIONS 1. Not for residential use. 2. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. 3. This fixture is in compliance with section 17 – Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation
2 Presentation RJNET Functions : 1. RJNET control board 5. PSU Lamp hour counter 2. Dimmer local control 6. PSU lamp switch 3. Followspot power connector 7. PSU mains LED 4. Data and accessories connectors 8. PSU mains breaker 9. PSU power connector 10. -
Page 5: Installation
3 Installation 3.1 Mechanics • No hardware installation is required. The network is already installed with the followspot. • For followspot installation: please refer to followspot manual. • Maximum ambient temperature: 40°C. 3.2 Electrical Followspots RJNET Dimmer* Dimmer local control CONTROL BOARD Dimmer local control... -
Page 6: Power Supply
For followspot electrical connection: please refer to followspot manual. 3.2.1 Power supply • RJNET includes a 24V – 60W PSU. • Eletrical connection is made in the lamp house of using the main power supply of the followspot. No external connection is required. •... -
Page 7: Accessories
XLR7- connector (RJBUS). • Warning: maximum load = 30W. • Adaptor XLR7- to XLR4- is required by using pins 1-2-3-5-7. • Front gel frame holder is available for standard scroller colour changer; please contact Robert Juliat for details. - 5 -... -
Page 8: Operation
4 Operation 4.1 Lamp 4.1.1 Lamp ignition Lamp can be ignited (switched on) by using : • local switch on power supply unit. • local value on RJNET control board (cf. 4.3.2)* • remote control by DMX protocol (cf. 4.4)* →... -
Page 9: Emergency Mode
4.2.3 4.2.3 Emergency mode By unplugging the DMX IN connector, the following message will be displayed : “Push select to reset DMX values” → By pushing select, DMX values will be deactivated until DMX comes back, so local control values (local control handle, RJNET, P1FCAN) will control the module from 0 to 100%. 4.3 RJNET control board The RJNET control board allows : •... -
Page 10: Menus And Parameters
4.3.2 Menus and parameters Select Access to followspot main parameters. F I X T U R E P A R A M E T E R S H M I F O L L O W S P O T D M X c h a n n e l DMX address of the first channel. - Page 11 Access to each DMX channel: M O D U L E S P A R A M E T E R S local values adjustment • H M I F O L L O W S P O T Individual DMX addressing •...
-
Page 12: Feedback Information
T E S T / V E R S I O N Test and reset of functions. H M I F O L L O W S P O T Information about system version. RJNET test S e l e c t f o r t e s t i n g Select... -
Page 13: Remote Control By Dmx Protocol
In MODULE PARAMETERS menu: Function D i m m e r 0 0 2 0 0 3 0 0 4 s t a g e Feedback Highest value Status 4.3.3 Highest command Highest command and value: Current value recognized by the dimmer shutter (highest value of the 5 sources - HTP mode) Symbol Command Local control (handle) -
Page 14: Service
5 Service 5.1 Preventive maintenance 5.1.1 Frequency General maintenance should be performed at least once a year, or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 5.1.2 General cleaning Remove dust from the unit (air vents, printed circuit cards, etc.). 5.1.3 General visual check •... -
Page 15: Psu Led
5.1.5 PSU LED 3 red LED are located on each electronic card (RJ NET control board and motor). LED on indicates PSU is OK. 5.1.6 Light sensor Remove dust from the light sensor conduct. 5.1.7 Shutter limit stop Remove dust from shutter limit stops. Analyse In there is still a problem after the Troubleshooting procedures (Cf. -
Page 16: Spare Parts
Spare parts Code Description 1159P20015 Control handle potentiometer with cable CE0636C278 DMX driver for Control board card (U6) and Motor card (U7) CE0682C250 CANBUS driver for Control board card (U5) and Motor card (U10) ME03M37001 375mA fuse for Control board card (F1) ME03002001 2A fuse for Motor card (F1) COT0002201...
