Robert Juliat ARAMIS 1013+ Technical Manual

Robert Juliat ARAMIS 1013+ Technical Manual

Hmi 2500w hot restrike followspots aramis+
Hide thumbs Also See for ARAMIS 1013+:

Advertisement

ARAMIS+

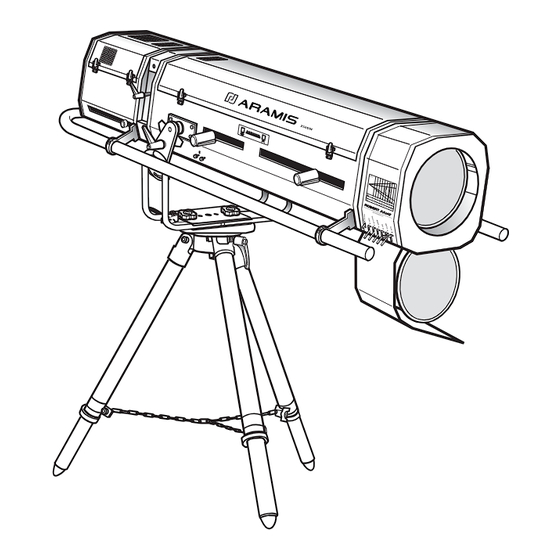

1013+, 1013+ B, 1013+ BS, 1013+ M & 1013+ BSM
V2c
VALIDATION: 02/03/11
DN30750100-D
Robert Juliat S.A.S. Route de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr
Robert Juliat U.S.A.
48 Capital Drive, Wallingford, CT 06492

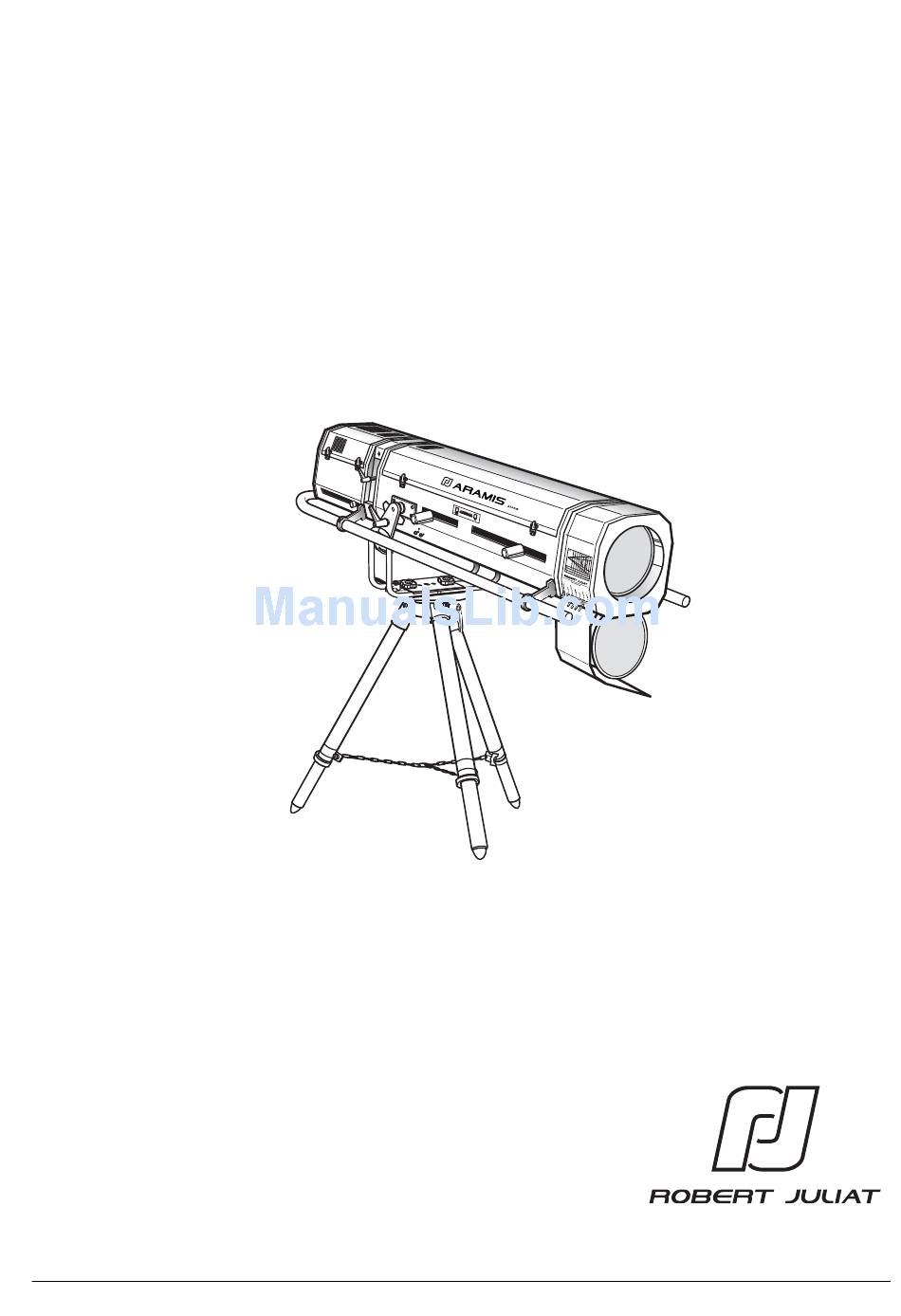

TECHNICAL FILE /
DOSSIER TECHNIQUE :
HMI 2500W HOT RESTRIKE FOLLOWSPOTS /
PROJECTEURS DE POURSUITE HMI 2500W
REAMORCAGE A CHAUD
-
phone : (203) 294 0481 - fax : (203) 294 0482 - info@robertjuliatamerica.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARAMIS 1013+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Robert Juliat ARAMIS 1013+

  • Page 1 VALIDATION: 02/03/11 DN30750100-D Robert Juliat S.A.S. Route de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr Robert Juliat U.S.A. 48 Capital Drive, Wallingford, CT 06492...
  • Page 2 NOTES...
  • Page 3 You have in your possession a ROBERT JULIAT HMI followspot. We would like to congratulate you on your choice. The performance of the followspot depends on the care you'll give to its maintenance. We advise you to read this manual and then keep it for reference.
  • Page 4: Table Of Contents

    CONTENTS Section: TECHNICAL DATA User's instructions ...................... A - 1 The identification plates ..................A - 3 Connection for 1013+ / BS ..................A - 5 Connection for 1013+ B ................... A - 7 Connection for 1013+ M / BSM ................A - 9 Putting the lamp into place ..................A - 11 Admissible Lamp .....................A - 13 Network use for 1013+ B ..................A - 15...
  • Page 5: User's Instructions

    21. If the fi xture has fans, make sure they are working correctly. If fans are not working, turn the fi xture off immediately and service as necessary. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 6: The Identification Plates

    - Power = Watt (W). - Intensity = Ampere (A) milliampere (mA). - Temperature = Degree Celsius (°C). - Voltage = Volt (V). robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 7 - Never open the lamp house's bonnet when the lighting unit is on. - Do not change the safety switches. - Never connect to a dimmable channel. - Use only when lamp in place. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 8 - Never open the lamp house's bonnet when the lighting unit is on. - Do not change the safety switches. - Never connect to a dimmable channel. - Use only when lamp in place. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 9 - Do not change the safety switches. - Never connect to a dimmable channel. D Analogue fader control (0/+10V). - Use only when lamp in place. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 10: Putting The Lamp Into Place

    - Tighten the 2 nuts 4 with a 6 sided bolt-driver N° 13 8 and make sure you stay in axe 12 . robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 11: Admissible Lamp

    • Preserve carefully the guarantee slip of the lamp, as it may be asked for in the event of a dispute. Thank you. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 12 Grouping the shutter DMX controls (same channels or groupings on the lighting board), allows synchronizing for a whole set of followspots. DMX LINK USE. Wiring when using a manual power supply. Wiring when using a DMX power supply. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 13: Data Link

    Female side earth only. Note: This is a universal cable and is suitable for a follow spot or a profile, 1200W. or 2500W. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 14 SPARK-GAP. - Disconnect from the mains. - Open the lamp house bonnet. - Check the distance of the electrodes that should be 1mm. (If you notice a larger gap, then please contact the ROBERT JULIAT's technical department). 1 mm service@robertjuliat.fr robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 15 Refer to section B - 1. in good condition. Change filters. No ventilation from the lamp house. Dirty filters. Refer to section C - 1. robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 16 B, BS, M & BSM B / BS 2500W HMI FOLLOWSPOT / POURSUITE HMI 2500W Section B - 5 LANTERNE / LAMP HOUSING robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: +33 (0)3.44.26.51.89 - fax: +33 (0)3.44.26.90.79 - www.robertjuliat.fr...
  • Page 17 PROJECTEUR DE POURSUITE HMI 2500W 1013 2500W HMI FOLLOWSPOT B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 1 SPARE PARTS LIST. CODE DESCRIPTION PIECES EXTERIEURES / OUTER PARTS. P D 1 0 1 3 0 0 0 5 Capot de lanterne complet / CHANGEUR 6 COULEURS / 6 COLOUR CHANGER...
  • Page 18: Way Colour Changer Unit

    PROJECTEUR DE POURSUITE HMI 2500W 1013 2500W HMI FOLLOWSPOT B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 2 SPARE PARTS LIST. CODE DESCRIPTION A - VERSION BOOMERANG / BOOMERANG VERSION. 1 0 1 3 P 3 0 2 0 0 Changeur 6 couleurs complet / Complete 6 way colour changer unit.
  • Page 19 PROJECTEUR DE POURSUITE HMI 2500W 1013+ / M 2500W HMI FOLLOWSPOT NOMENCLATURE PIECES DETACHEES / Section C - 3 SPARE PARTS LIST. CODE DESCRIPTION PIECES INTERIEURES ZOOM / LENS TUBE INNER PARTS. Lentille / Lens (Ø254). O P 2 5 4 1 0 0 0 1 Pince Lentille / Lens clip.
  • Page 20 PROJECTEUR DE POURSUITE HMI 2500W 1013+ B / 2500W HMI FOLLOWSPOT BS / BSM NOMENCLATURE PIECES DETACHEES / Section C - 4 SPARE PARTS LIST. CODE DESCRIPTION PIECES INTERIEURES ZOOM / LENS TUBE INNER PARTS. O P 2 5 4 1 0 0 0 1 Lentille / Lens (Ø254).
  • Page 21 PROJECTEURS POURSUITE HMI 2500W / 1013 2500W HMI FOLLOWSPOTS B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 5 SPARE PARTS LIST. CODE DESCRIPTION FPAIRIS018 Ensemble cassette iris montée / Complete black-out iris cassette. DJ30659250 Platine cassette iris / Iris main plate.
  • Page 22: Lamp Housing

    PROJECTEUR DE POURSUITE HMI 2500W 1013 2500W HMI FOLLOWSPOT B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 6 SPARE PARTS LIST. CODE DESCRIPTION 1 0 1 3 P 1 0 0 0 9 Porte-lentille complet avec lentille QUARTZ / LANTERNE / Complete lens holder with QUARTZ lens.
  • Page 23 PROJECTEURS POURSUITE HMI 2500W / 1013 2500W HMI FOLLOWSPOTS B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 7 SPARE PARTS LIST. CODE DESCRIPTION 1 0 1 3 P 1 0 0 0 9 Support asphérique 1013/1015 QUARTZ monté / DETAIL SUPPORT Lens holder 1013/1015, with QUARTZ lens.
  • Page 24 PROJECTEUR DE POURSUITE HMI 2500W 1013 2500W HMI FOLLOWSPOT B / BS / M / BSM NOMENCLATURE PIECES DETACHEES / Section C - 8 SPARE PARTS LIST. CODE DESCRIPTION POIGNEE DE BLOCAGE DU ZOOM / ZOOM HANDLE LOCK. Réglage pression / Pressure adjustment. Pour augmenter la pression desserrer la vis a .
