LED FOLLOWSPOT
V1
- FIRMWARE: V3.0
- RJ-LED2 FIRMWARE PLATFORM (Node Mode) full manual is
available for download at robertjuliat.com/LED/PDF_PAGE
VALIDATION : 14/04/22
DN41202000 (EN)
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr

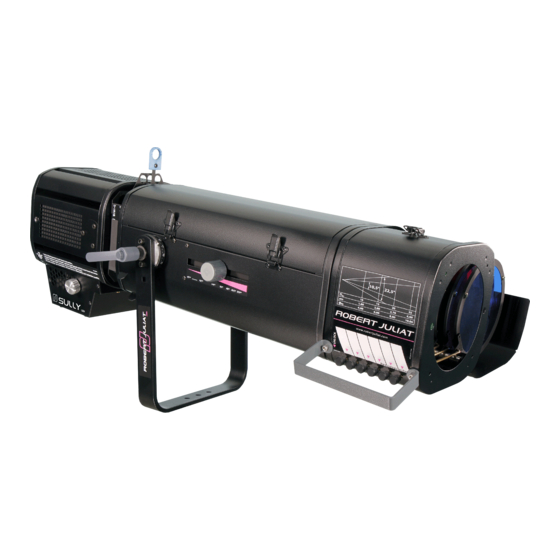

115 W FOLLOWSPOT
Model
10.5° – 22.5° Warm White
10.5° – 22.5° Cool White
www.robertjuliat.com
Standard
North American
1156WW
1156CWW
1156CW
1156CCW
Advertisement
Table of Contents
Related Manuals for Robert Juliat Sully 1156
Summary of Contents for Robert Juliat Sully 1156
- Page 1 VALIDATION : 14/04/22 DN41202000 (EN) Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr www.robertjuliat.com...
-
Page 2: Table Of Contents
6.4 Firmware update ........................................................30 6.5 Factory defaults ........................................................31 6.5.1 Modes ................................................................31 6.5.2 Control ................................................................31 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice. -
Page 3: User's Instructions
1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation
2 Presentation 2.1 Functions Description Identification plates 11. Lens tube access Data connector (IN and OUT) 12. Colour changer Power connector (IN and OUT) 13. Zoom adjustment RJ45 network connector 14. Gate: slots for gobo holder and/or iris Handle 15. Iris Safety cable attachment point 16. -
Page 5: Label On Lighting Unit
2.2.2 label on lighting unit Description 1. Model beam angles 2. Net weight (kg) without LED compartment 3. Serial number 4. Class 1 product label 5. Read manual first label 6. European conformity label 7. WEEE directive label 8. Operating positions 9. -
Page 6: Accessories
2.4 Accessories Reference Description VD120 120 x 120 mm frosted glass GT800 Tripod stand GT800 - SWL: 40 kg max. height 1550 mm GT1000 Tripod stand GT1000 - SWL: 40 kg max. height 1550 mm T1000 TV spigot with followspots swivel head Kit TELRAD Followspot sight with riser APH 68LED... -
Page 7: Set-Up
3 Set-up 3.1 Mechanics 3.1.1 Operating positions 3.1.2 Minimum distance between a flammable material and the lighting unit 0,8 m 2.6 ft 3.1.3 Instructions for use 5°C 40°C Minimum : Maximum : 40°F 104°F IP20 - Indoor use only 3.1.4 Lifting •... -
Page 8: Stand Set-Up
3.1.5 Stand set-up • Compatible stands : GT800 & GT1000 Please refer to the relevant user manual for further details. 3.2 Electrical information 3.2.1 LED source Never touch or scratch the LED surface. See 6.1.4 LED cleaning procedure if cleaning is necessary. 3.2.2 Power supply Power supply Voltage... -
Page 9: Data
Power cable Power cable Connector Mains plug Cable type Cable length Wiring Live: Brown Standard 3G1.5 CEE7/7 Neutral: Blue version H07RNF 9.8 ft ® Neutrik powerCON Ground: Yellow/Green TRUE1 TOP North 14AWG Live: Black NAC3FX-W-TOP 1.5 m American SJ TYPE Neutral: White 4.9 ft version... -
Page 10: Art-Net / Sacn
3.3.2 Art-Net / sACN Protocol Input connector Output connector Art-Net RJ45 sACN Daisy chain: Fixture Fixture Fixture Art-Net sACN Network switch* Lighting desk interface (*) A 1000 base-T switch that supports IGMP (Internet Group Management Protocol) is necessary if the unit is connected to a network switch to control multiple devices. -
Page 11: Accessories
3.4 Accessories Iris / Gobo holder Filter holder 3.4.1 Iris "Click": Correctly in place. 3.4.2 Gobo holder "Click": Correctly in place. Gobo For filter dimensions, see section 4.7 EN - 9 -... -
Page 12: Internal Filter Holder
3.4.3 Internal filter holder For filter dimensions, see section 4.8 3.4.4 Colour changer unit - push-pull Gel filter Paper fastener (Parisien) DImensions, see section 4.8 (3 pieces on each frame) EN - 10 -... -
Page 13: Double Slot Front Cassette For Front Accessories (Option)
3.4.5 Double slot front cassette for front accessories (option) Front filter holder / Safety grid For filter dimensions, see section 4.8 EN - 11 -... -
Page 14: Double-Condenser Set
3.4.6 Double-condenser set APH68 LED only possible with LED version (not with halogen). For full procedure, see page EN-29 EN - 12 -... -
Page 15: Operations
4 Operations 4.1 Light intensity 4.1.1 Range 100% 4.1.2 Control T Set through RDM protocol Locally via rotary knob Remotely with DMX512-A / or web interface Art-Net / sACN protocols. interface DMX512-A compatible device Rotary knob HTP mode (Highest Takes Precedence): Light output is the highest value of DMX512 command or local control 4.1.3 Parameters 4.1.3.1 Dimming resolution - DMX only... -
Page 16: Dimming Curve
4.1.3.2 Dimming curve T Set through RDM protocol or web interface 4.1.3.3 Master control In order to supervise the operator from the console, master control DMX channel can be used. This channel limits the maximum value of the dimmer shutter. By using this function, it is possible to obtain synchronised fades with several spots or to give intensity limits (minimum and maximum) to the operator . -
Page 17: Dimming Mode
4.1.3.5 Dimming mode T Set through RDM protocol or web interface Mode Result Without PWM Flicker-Free, perfect for filming PWM 17 kHz Good dimming quality (Default Value) PWM 3,2 kHz Very good dimming 4.2 Strobe 4.2.1 Range Strobe duration 255 = 20ms 0 = OFF 1 = 1ms Strobe speed... -
Page 18: Control
4.3.2 Control compatible device DMX512-A interface T Set through RDM protocol or web interface T Remotely with DMX512-A / Art-Net / sACN protocols. Mode 3 – 4 Mode Speed NONE SLOW 700 ms MEDIUM 470 ms FAST 350 ms CUSTOM 0 - 4000 ms 4.4 Beam size adjustment 4.4.1 Range... -
Page 19: Orientation
4.5 Orientation 4.5.1 Range Function Range 0 T 360° TILT TU = 0 T 38° TD = 0 T 56° 4.5.2 Control Lock Unlock EN - 17 -... -
Page 20: Iris
4.6 Iris 4.6.1 Range • Irising 100% Closed iris 4.6.2 Control 4.7 Gobo 4.7.1 Range Type Standard gobo - A size 100 mm 72 mm • Metal Dimensions Maximum • Glass image size Values are in millimeters (mm) Installation See 3.4.3 4.8 Colour •... - Page 21 Location 1. Internal filter holder 2. Front filter cassette (option) Type Frosted or dichroic glass Coloured gel filter (option) Dimensions Installation See 3.4.3 See 3.4.5 EN - 19 -...
-
Page 22: Controls And Parameters
5 Controls and parameters 5.1 Web interface 5.1.1 Control Ethernet connection The fixture must be connected to a compatible network or directly to a computer using an ethernet cable. 5.1.2 Default IP address By defaut : DHCP = OFF Address = 2.XXX.XXX.XXX Mask = 255.0.0.0 T If IP address unknown (due to a previous modification), a hard reset must be done (see 6.5 Factory defaults). -
Page 23: Cct Selection
After updating your device with firmware V3.0, we strongly recommend that you update the source type (CCT) either to CW (Cold White) or WW (Warm White) by following the procedure described in the section below: 5.1.5 CCT selection 5.1.5 CCT selection Until now, the CCT of the LED source was not taken into account. -
Page 24: Leds Feedback
5.2 LEDs Feedback 5.2.1 Trouble shooting • During unit initialisation (power up) – up to 5 seconds: Description DMX OUT DMX IN Network Unit OFF Unit error Unit has been reset successfully RDM protocol activated • After initialisation - Node mode "OFF": DMX OUT DMX IN Network... -
Page 25: Dmx512 - A Remote Control
5.3 DMX512 - A remote control 5.3.1 Protocol E1.11 – 2008, USITT DMX512-A 5.3.2 Configuration Set mode through web interface Set mode through RDM protocol compatible device 1 - Set DMX address 2 - Set personality mode (see 5.3.4. DMX chart) 5.3.3 Parameters 5.3.3.1 DMX Hold T Set through RDM protocol or web interface... -
Page 26: Dmx Chart
5.3.4 DMX chart Mode 1: Mode 2: Mode 3: Mode 4: Mode 5: Mode 6: DMX Channel Dimmer8B Dimmer16B Profile8B Profile16b Followspot8b Followspot16b Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer fine Strobe duration Dimmer fine Master Dimmer fine Strobe speed Strobe duration Strobe duration Master Response time... -
Page 27: Rdm Remote Control
5.4 RDM remote control 5.4.1 Protocol ANSI E1.20 – 2010 / ANSI E1.37 - 1 For more information about RDM protocol: http://www.rdmprotocol.org/ 5.4.2 Functions 115W LED PROFILE Function description Queued Message Network Management DISCOVERY_UNIQUE_BRANCH DISCOVERY_MUTE DISCOVERY_UNMUTE COMMUNICATION_STATUS Status Collection QUEUED_MESSAGE STATUS_MESSAGES STATUS_ID_DESCRIPTION CLEAR_STATUS_ID... - Page 28 115W LED PROFILE Function description Queued Message Control IDENTIFY_DEVICE RESET_DEVICE PERFORM_SELFTEST SELF_TEST_DESCRIPTION RDMnet Management LIST_INTERFACES INTERFACE_LABEL INTERFACE_HARDWARE_ADRESS_TYPE1 IPV4_DHCP_MODE IPV4_CURRENT_ADDRESS IPV4_STATIC_ADDRESS INTERFACE_RELEASE_DHCP INTERFACE_APPLY_CONFIGURATION IPV4_DEFAULT_ROUTE DNS_IPV4_NAME_SERVER DNS_HOSTNAME PID Manufacturer SELFTEST_RESULT CURRENT_IP_ADDRESS CURRENT_NETMASK CURRENT_DRIVER_STATUS CUSTOM_RESPONSE_TIME_DESCRIPTION CUSTOM_RESPONSE_TIME_VALUE DATA_MODE_DESCRIPTION DATA_MODE_VALUE STANDALONE_VALUE_DESCRIPTION STANDALONE_VALUE SACN_UNIVERSE_VALUE_DESCRIPTION SACN_UNIVERSE_VALUE ARTNET_UNIVERSE_VALUE_DESCRIPTION ARTNET_UNIVERSE_VALUE SERIAL_DESCRIPTION SERIAL...
-
Page 29: Art-Net Remote Control
5.5 Art-Net remote control 5.5.1 Protocol Artistic Licence Art-Net v3. For more information about Art-Net protocol: http://art-net.org.uk/ 5.5.2 Configuration Set mode through web interface (see 5.1 Web interface) 1 - If necessary, change IP settings 2 - Set ArtNet parameters : Net / SubNet / Universe 3 - Set DMX address 2 - Set personality mode (see 5.3.4. -
Page 30: Service
6 Service 6.1 Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol. -
Page 31: Analysis
How to remove the Sully LED compartment for cleaning: 1. We recommend you place your luminaire on a flat clean surface. Disconnect from the mains before servicing. 2. Unlock the quarter turn screw with a flat screwdriver. 3. Remove the two screws with a flat screwdriver. 4. -
Page 32: Electronic Thermal Management System
6.3 Electronic thermal management system In case of overheating, light intensity will be reduced by the system. Power reduction and temperature values are available by using a RDM protocol compatible device. 6.4 Firmware update After updating your device with firmware V3.0, we strongly recommend that you update the source type (CCT) either to CW (Cold White) or WW (Warm White) by following the procedure described in the section below: CCT selection CCT selection... -
Page 33: Factory Defaults
1. Firmware available on www.robertjuliat.com/followspots/SULLY_1156 2. Download and unzip the file There are 4 files: - Firmware (.upd2 format) - Firmware History - Update Procedure - User Manual from firmware V3.0 3. Switch on the unit 4. Connect Network from computer to the unit 5.
