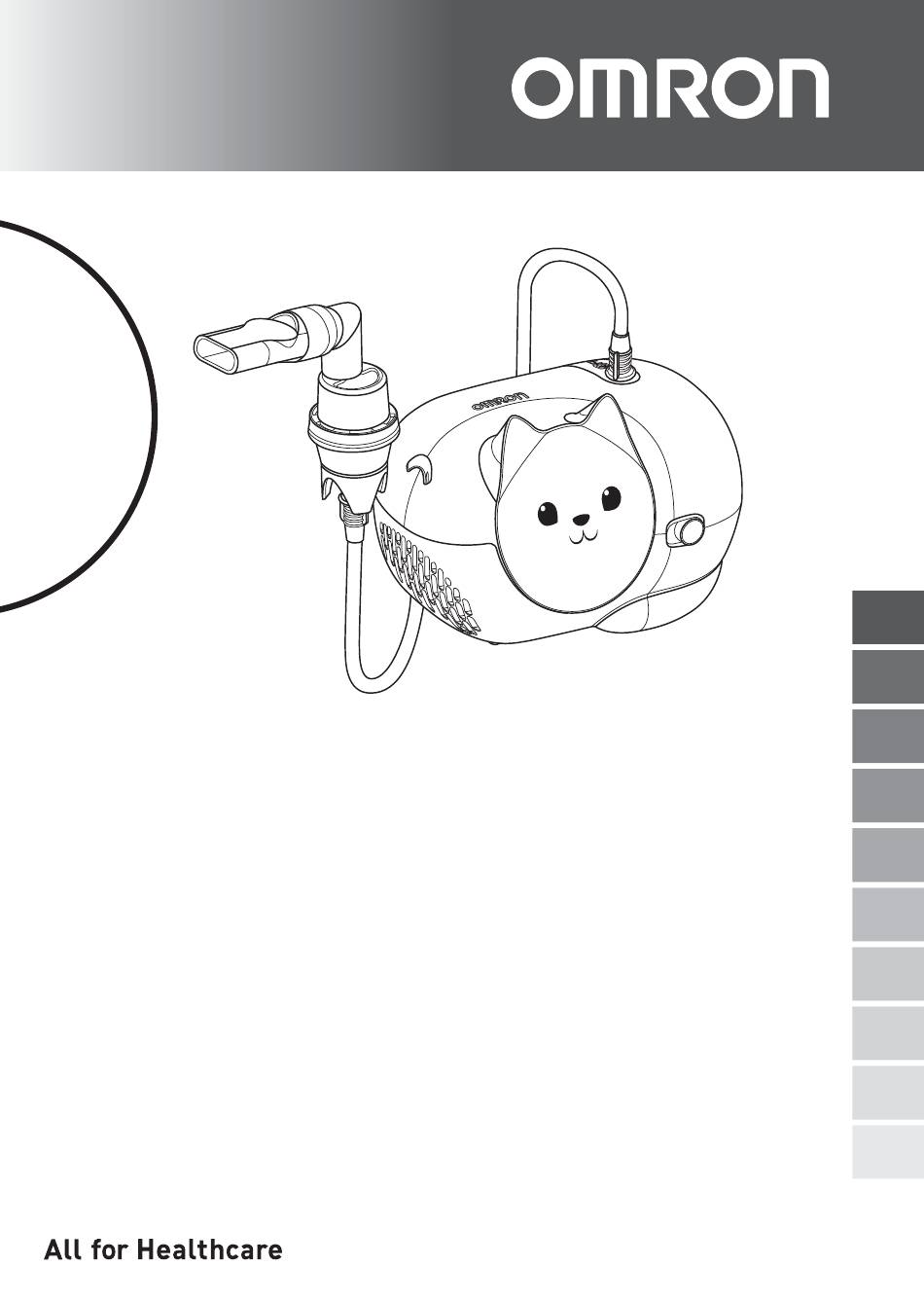

- Page 1 Compressor Nebulizer Nami Cat (NE-C303K-KDE) Nami Cat (NE-C303L-KDE) Nami Cat (NE-C303J-KDE) Instruction Manual IM-NE-C303-E-01-12/2019 3A4278 rev.00 Issue Date: 2020-01-30...
-
Page 2: Table Of Contents
Table of Contents Intended use ................3 Know your unit .................4 How the nebulizer kit works .............5 Important safety instructions ............5 How to use ................6 Cleaning and daily disinfecting ..........8 Technical data ................10 Troubleshooting ..............13 Warranty .................14 Optional Medical Accessories ..........15 Other Optional/Replacement Parts ........15... -
Page 3: Intended Use
• The user should also be capable of understanding the general operation of Nami Cat nebulizer and the content of this instruction manual. Intended Patients: Persons who suffer from respiratory disorders and require inhalation of medications. -
Page 4: Know Your Unit
Know your unit Compressor (Main unit) Rear View Air Tube Power Switch Power Cord Connector Air Filter Cover Including air filter Nebulizer Kit Holder Ventilation Slots Power Plug Ventilation Slots Nebulizer Kit Adapter Inhalation Top Mouthpiece Vaporiser Head Adult Mask (PVC) Medication Tank Child Mask (PVC) Air Tube Connector... -
Page 5: How The Nebulizer Kit Works
How the nebulizer kit works The medication that is pumped up through Baffle the medication channel is mixed with compressed air which is generated by a Aerosol Aerosol compressor pump. The compressed air mixed with medication Medication Medication is turned into fine particles and sprayed when in contact with the baffle. -
Page 6: How To Use
12. In view of their length, the power plug and air tube could constitute a strangulation hazard. 13. Be sure to use the compressor at a place where the power plug is easily accessible during treatment. 14. If you experience any allergic reactions or other difficulties during use, stop using the device immediately and consult your doctor. - Page 7 7. Attach the adapter, and the Mask or mouthpiece to the nebulizer kit tightly. 8. Attach the air tube. While twisting the air tube plug slightly, push it firmly into the air tube connector. Right angle 9. Hold the nebulizer kit as indicated on the right.
-
Page 8: Cleaning And Daily Disinfecting
Cleaning and daily disinfecting Wash hands thoroughly before cleaning and disinfecting the nebulizer parts. Always disinfect the device parts before first use, and if the device has not been used for a long time, and also after the last treatment session of a day. - Page 9 Boiling: The Nebulizer Kit, Mouthpiece and Adapter can also be disinfected by boiling between 15 to 20 minutes in plenty of water. After boiling, carefully remove the parts, shake off excess water and allow to air-dry in a clean environment. Note: Do not boil the Mask and the Air Tube.
-
Page 10: Technical Data
Technical data Product Category: Aerosoltherapy Equipment Product Description: Compressor Nebulizer Model (code): Nami Cat (NE-C303K-KDE/ NE-C303L-KDE/NE-C303J-KDE) Rating: 230V ~50Hz Power Consumption: 150VA Operating Mode: Continuous Use Operating Temperature/ +5°C to +40°C / 15% to 85%RH / Humidity/Air Pressure: 700 to 1060 hPa Storage and Transport -20°C to +60°C / 5% to 95%RH /... - Page 11 Aerosol Output Approx. 0.21 ml (2 ml, 1% NaF): Aerosol Output Rate Approx. 0.06 ml/min (2 ml, 1% NaF): MMAD = Mass Median Aerodynamic Diameter Results of Cascade impactor measurements for Particle size Cumulative % particle mass of sodium fluoride undersize 100.00 80.00 60.00...
- Page 12 Symbols description Need for the user to consult the Humidity limitation instructions for use Applied part – Type BF Degree of protection Atmospheric pressure against electric shock limitation (leakage current) Class ll Protection against Power ON electric shock Ingress protection IP XX degree provided by Power OFF...
-
Page 13: Troubleshooting
Do not attempt to repair the device. Do not open and/or tamper with the device. No parts of the device are user serviceable. Return the device to an authorized OMRON retail outlet or distributor. Please report to the manufacturer and the competent authority of the Member State in which you are established about any serious incident that has occurred in relation to this device. -
Page 14: Warranty
It is designed to give you the highest level of comfort, provided it is properly operated and maintained as described in the instruction manual. This product is guaranteed by OMRON for a period of 3 years after the date of purchase. The proper construction, workmanship and materials of this product is guaranteed by OMRON. -
Page 15: Optional Medical Accessories
This device manufactured by 3A HEALTH CARE S.r.l. conforms to EN60601-1-2:2015 Electro Magnetic Compatibility (EMC) standard. Further documentation in accordance with this EMC standard is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual or at www.omron-healthcare.com. DISPOSAL PROCEDURE (Dir. 2012/19/EU-WEEE) - Page 16 3A HEALTH CARE S.r.l. Via Marziale Cerutti, 90F/G 25017 Lonato del Garda (BS) Italy Distributor OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS www.omron-healthcare.com OMRON HEALTHCARE UK LTD. Opal Drive, Fox Milne, Milton Keynes, MK15 0DG, UK www.omron-healthcare.com...
