NE-C801S-ID_B_M01_111219.pdf

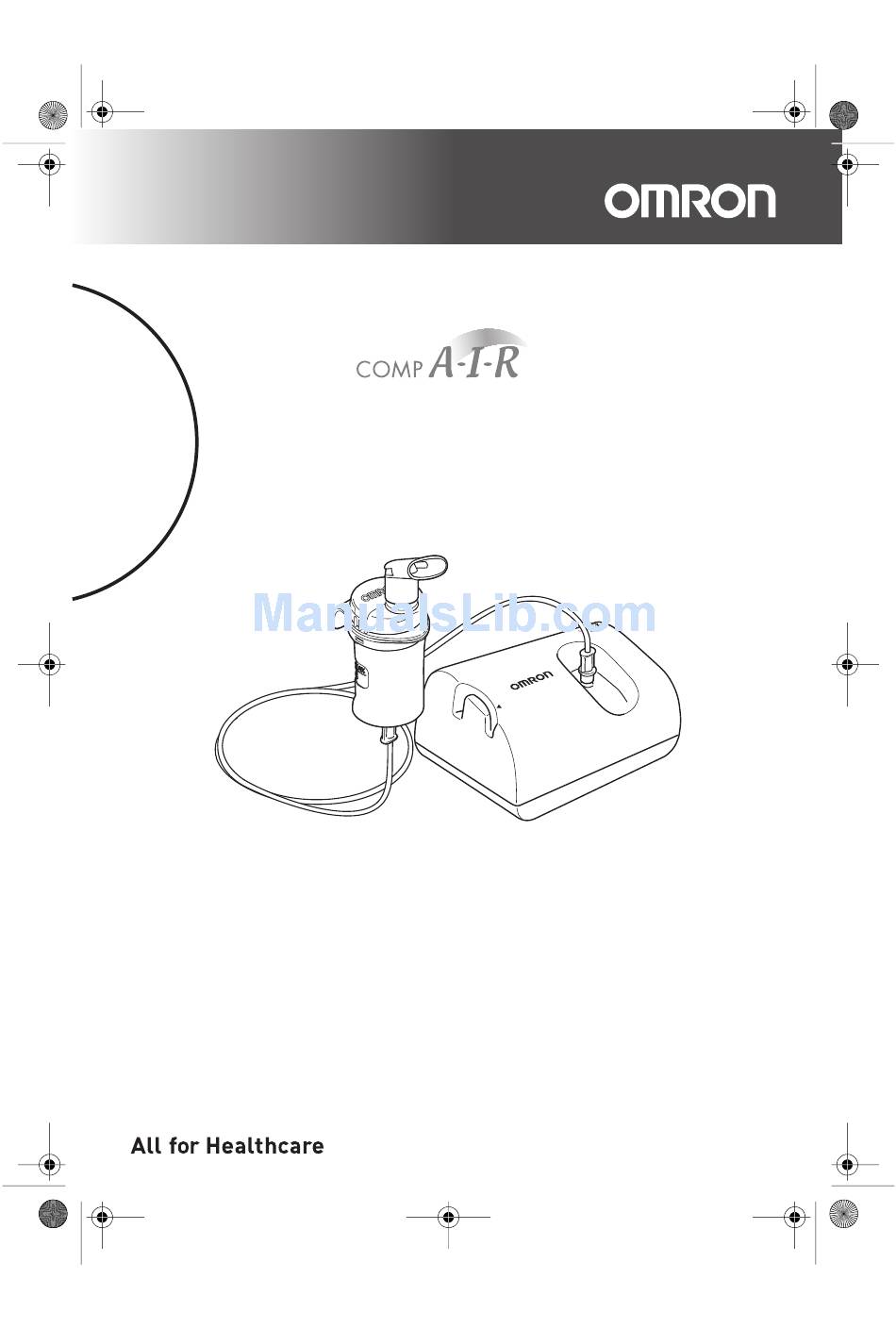

NE-C801S-ID_B_M.book Page 1 Friday, December 16, 2011 11:46 AM
TM
Compressor Nebulizer
NE-C801
Model
Instruction Manual
10/2011
5329892-8B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NE-C801 and is the answer not in the manual?

Questions and answers

Kelsey
May 28, 2025

Trying to find how old my nebulizer is. Model:NE-C801 (01)00073796458010 (21)20210809979UF SN 20210809979UF

0

Subscribe to Our Youtube Channel

Related Manuals for Omron NE-C801

Summary of Contents for Omron NE-C801

  • Page 1 NE-C801S-ID_B_M01_111219.pdf NE-C801S-ID_B_M.book Page 1 Friday, December 16, 2011 11:46 AM Compressor Nebulizer NE-C801 Model Instruction Manual 10/2011 5329892-8B...

  • Page 2: Table Of Contents

    NE-C801S-ID_B_M.book Page 2 Friday, December 16, 2011 11:46 AM Before using the device Contents Before using the device Introduction ....................3 Intended use ....................3 Important safety instructions............... 4 1. Know your unit ..................7 2. Guide to using the device ..............9 Operating instructions 3.

  • Page 3: Introduction

    NE-C801S-ID_B_M.book Page 3 Friday, December 16, 2011 11:46 AM Introduction Thank you for purchasing the OMRON COMP AIR. This product was developed in conjunction with respiratory therapists for the successful treatment of asthma, chronic bronchitis, allergies and other respiratory disorders. The compressor forces air to the nebulizer kit. When the air enters the nebulizer kit, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.

  • Page 4: Important Safety Instructions

    NE-C801S-ID_B_M.book Page 4 Friday, December 16, 2011 11:46 AM Important safety instructions Read all the information in the instruction manual and any other literature included in the box before using the device. When using an electrical product, especially when children are present, basic safety precautions should always be followed including the following: Warning: Indicates a potentially hazardous situation which, if not avoided, could result in...
  • Page 5 NE-C801S-ID_B_M.book Page 5 Friday, December 16, 2011 11:46 AM Important safety instructions • Use only original OMRON AC adapter. Use of unsupported AC adapter may damage the device. • Do not operate the device with a damaged power cord or plug.
  • Page 6 • Do not misuse the cord of the AC adapter. • Do not wind the cord of the AC adapter around the compressor or AC adapter. • Changes or modifications not approved by OMRON HEALTHCARE will void the user warranty.

  • Page 7: Know Your Unit

    NE-C801S-ID_B_M.book Page 7 Friday, December 16, 2011 11:46 AM 1. Know your unit Nebulizer Kit Compressor (Main Unit) Nebulizer Kit Holder Air Tube Plug Air Tube Connector Air Tube Plug Power Switch Rear View Air Tube (PVC, 100cm) Air Filter Cover Power *Air filter inside Connector...
  • Page 8 NE-C801S-ID_B_M.book Page 8 Friday, December 16, 2011 11:46 AM 1. Know your unit Accessories Storage Bag Instruction Manual × Spare Air Filters Compressor Nebulizer NE-C801 Model Instruction Manual 10/2011 5329892-8B AC adapter Optional Accessories Nosepiece...

  • Page 9: Guide To Using The Device

    NE-C801S-ID_B_M.book Page 9 Friday, December 16, 2011 11:46 AM Operating instructions 2. Guide to using the device Preparing the Nebulizer for Use - Section 3 (page 10-13) Warning: Clean and disinfect the nebulizer kit, mouthpiece and nosepiece or masks before using them for the first time after purchase, or if the device has not been used for a long period of time, or if more than one person uses the same device.

  • Page 10: Preparing The Nebulizer For Use

    NE-C801S-ID_B_M.book Page 10 Friday, December 16, 2011 11:46 AM 3. Preparing the nebulizer for use Warning: Clean and disinfect the nebulizer kit and the mask, mouthpiece or optional nosepiece before using them for the first time after purchase, or if the device has not been used for a long period of time, or if more than one person uses the same device.

  • Page 11: Adding Medication And Assembling The Parts

    NE-C801S-ID_B_M.book Page 11 Friday, December 16, 2011 11:46 AM 3. Preparing the nebulizer for use Adding medication and assembling the parts Remove the mouthpiece and cap from the nebulizer kit. Remove the inhalation top from the medication tank. Rotate the inhalation top anti-clockwise. Lift the inhalation top out of the medication tank.
  • Page 12 NE-C801S-ID_B_M.book Page 12 Friday, December 16, 2011 11:46 AM 3. Preparing the nebulizer for use Attach the desired inhalation attachment, as described below. Attaching the mouthpiece Attach the cap to the inhalation air inlet. Attach the mouthpiece to the inhalation top. Attaching the nosepiece (optional) Attach the cap to the inhalation air inlet.
  • Page 13 NE-C801S-ID_B_M.book Page 13 Friday, December 16, 2011 11:46 AM 3. Preparing the nebulizer for use Attach the air tube. Twist the air tube plug slightly and push it firmly into the air tube connector on the compressor. Twist the air tube plug slightly and push it firmly into the air tube connector on the medication tank.

  • Page 14: Taking Medication

    NE-C801S-ID_B_M.book Page 14 Friday, December 16, 2011 11:46 AM 4. Taking medication Hold the nebulizer kit as indicated on the right. Caution: Do not tilt the nebulizer kit at an Right angle angle of greater than 45° in all ° °...
  • Page 15 NE-C801S-ID_B_M.book Page 15 Friday, December 16, 2011 11:46 AM 4. Taking medication Inhale medication according to your doctor’s and/or health care adviser’s instructions. Prepare the inhalation attachment according to Section 3 (page 12). Using the mouthpiece Insert the mouthpiece into your mouth and inhale the medication breathing normally.

  • Page 16: Care And Maintenance

    NE-C801S-ID_B_M.book Page 16 Friday, December 16, 2011 11:46 AM Care and maintenance 4. Taking medication When treatment is complete, turn the power off. Check that there is no condensation or moisture in the air tube and unplug the device from the power outlet.

  • Page 17: Cleaning And Daily Disinfecting

    NE-C801S-ID_B_M.book Page 17 Friday, December 16, 2011 11:46 AM 5. Cleaning and daily disinfecting Cleaning Following the cleaning instructions after each use will prevent any remaining medication in the tank from drying, resulting in the device not nebulizing effectively and also for preventing infections. Warning: Thoroughly rinse the nebulizer kit and the mask, mouthpiece or optional nosepiece with clean hot tap water after each use, and disinfect the parts of...

  • Page 18: Disinfecting The Nebulizing Parts

    NE-C801S-ID_B_M.book Page 18 Friday, December 16, 2011 11:46 AM 5. Cleaning and daily disinfecting If the compressor is dirty, wipe it clean with a soft cloth moistened with water or mild detergent. Caution: The compressor is not waterproof. If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened with water or mild detergent.
  • Page 19 NE-C801S-ID_B_M.book Page 19 Friday, December 16, 2011 11:46 AM 5. Cleaning and daily disinfecting Handling the Vaporiser Head The vaporiser head is an important part that is used to vaporise medication. Be sure to observe the following precautions when handling it. Caution: •...
  • Page 20 NE-C801S-ID_B_M.book Page 20 Friday, December 16, 2011 11:46 AM 5. Cleaning and daily disinfecting Use the table below as a guideline to select a method for disinfecting. Parts Model Materials Mouthpiece C28-3P Nosepiece (optional) C28-7 Cap: PP Inhalation Top: PP Nebulizer Kit Set C801-NSET3 Vaporiser Head: PC...
  • Page 21 NE-C801S-ID_B_M.book Page 21 Friday, December 16, 2011 11:46 AM 5. Cleaning and daily disinfecting O: applicable ×: not applicable Sodium Quaternary Amphoteric Alcohol Chlorhexidine hypochlorite ammonium surfactant Boiling Disinfecting Milton* Osvan* Hibitane* Tego* ethanol (0.1%) (0.1%) (0.5%) (0.2%) × × ×...

  • Page 22: Maintenance And Storage

    NE-C801S-ID_B_M.book Page 22 Friday, December 16, 2011 11:46 AM 6. Maintenance and storage To keep your device in the best condition and protect the device from damage follow these directions: Caution: • Do not leave the device unattended with infants or persons who cannot express their consent.

  • Page 23: Changing The Air Filter

    Do not boil the air filter cover. Remove the air filter cover, wash it, and make sure it is dry and reattached correctly. • Please contact an authorized OMRON distributor for additional air filters, or if the parts supplied with the device are damaged or missing.

  • Page 24: Troubleshooting

    20 interval before using the minutes? device again. Note: If the suggested remedy does not solve the problem, do not try to repair the device - no parts of the unit are user serviceable. Please contact an authorized OMRON distributor.

  • Page 25: Technical Data

    Notes: • Subject to technical modification without prior notice. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co., Ltd., Japan. • The device may not work if the temperature and voltage conditions are different to those defined in the specifications.

  • Page 26: Technical Data

    NE-C801S-ID_B_M.book Page 26 Friday, December 16, 2011 11:46 AM 9. Technical data Technical data for the OMRON NE-C801 Compressor with the OMRON V.V.T. (Virtual Valve Technology) Nebulizer kit: Particle Size: **MMAD Approx. 3µm MMAD = Mass Median Aerodynamic Diameter Medication Tank...
  • Page 27 Recommendation is to keep a minimum distance of 7 m. Verify correct operation of the device in case the distance is shorter. Further documentation in accordance with EN60601-1-2:2007 is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual. Documentation is also available at www.omron-healthcare.com.
  • Page 28 NE-C801S-ID_B_M.book Page 28 Friday, December 16, 2011 11:46 AM 9. Technical data Correct Disposal of This Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed of, with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this product from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 29: Optional Parts And Accessories

    NE-C801S-ID_B_M.book Page 29 Friday, December 16, 2011 11:46 AM 10. Optional parts and accessories Omron V.V.T. Nebulizer Kit Air Tube (PVC, 100cm) Mouthpiece N-01 Set Model: C801-ATBP Model: C28-3P Model: C801-NSET3 Mouthpiece Vaporiser Head Nosepiece Model: C801-BF Model: C28-7 Nebulizer Kit No. : N-01...
  • Page 30 Notes...
  • Page 31 NE-C801S-ID_A_M.book Page 31 Thursday, October 14, 2010 5:03 PM H§ $ ào g a Zo ~ w b mBµ O a - C801 EZB© _m° S > b {ZX} e nw p ñVH$m 10/2011 5329892-8...
  • Page 32 NE-C801S-ID_A_M.book Page 32 Thursday, October 14, 2010 5:03 PM {df`-gy M r CnH$aU Cn`mo J H$aZo go ny d © ......................33 n[aM` Ano { jV Cn`mo J ....................33 gw a jm g§ ~ § Y r _hËdny U © {ZX} e .................

  • Page 33: Ano { Jv Cn`mo J

    NE-C801S-ID_A_M.book Page 33 Thursday, October 14, 2010 5:03 PM n[aM` OMRON COMP AIR IarXZo Ho $ {bE AmnH$m YÝ`dmX& Bg CËnmX H$m {dH$mg ídmg {M{H$ËgH$m| Ho $ gmW {_bH$a X_m, OrU© ídgZremo W , EbOu Am¡ a AÝ` ídmg g§ ~ § Y r Xmo f m| H$m g\$b CnMma H$aZo Ho $ {bE {H$`m J`m h¡...

  • Page 34: Gw A Jm G§ ~ § Y R _Hëdny U © {Zx} E

    NE-C801S-ID_A_M.book Page 34 Thursday, October 14, 2010 5:03 PM gw a jm g§ ~ § Y r _hËdny U © {ZX} e CnH$aU H$m Cn`mo J H$aZo go ny d © {S> ã ~o _| Xr JB© {ZX} e nw p ñVH$m Am¡ a AÝ` g^r H$mJμ O mV _| CnbãY g§ n y U © OmZH$mar H$mo n‹...
  • Page 35 • Ho $ db dmñV{dH$ Egr (OMRON AC) AS> m ° ß Q> a H$m Cn`mo J H$a| & CnH$aU Ho $ gmW Z bJZo dmbo Egr AS> m ° ß Q> a H$m Cn`mo J H$aZo go CnH$aU Zï> hmo gH$Vm h¡ &...
  • Page 36 • Amo _ am° Z ho ë WHo $ Aa (OMRON HEALTHCARE) Ûmam AZw _ mo { XV Z {H$E JE n[adV© Z m| `m g§ e mo Y Zm| H$mo H$aZo H$s Xem _| Cn`mo J H$Vm© dma§ Q > r g_má hmo OmEJr&...

  • Page 37: Anzr `Y { Zq> H$Mo Omz

    NE-C801S-ID_A_M.book Page 37 Thursday, October 14, 2010 5:03 PM AnZr `y { ZQ> H$mo OmZ| Zo ~ w b mBµ O a {H$Q> H§ $ ào g a (_w » ` `y { ZQ> ) Zo ~ w b mBµ O a {H$Q> hmo ë S> a E`a Q>...
  • Page 38 ñQ> m o a o O ~¡ J {ZX} e nw p ñVH$m × 5 A{V[aº$ E`a {µ \ $ëQ> a Compressor Nebulizer NE-C801 Model Instruction Manual 08/2010 5329892-8A Egr AS> m ° ß Q> a d¡ H $pënH$ gm_mZ...

  • Page 39: Cnh$Au H$M Cn`mo J H$Azo G§ ~ § Y R {Zx} { Eh$M

    NE-C801S-ID_A_M.book Page 39 Thursday, October 14, 2010 5:03 PM g§ M mbZ {ZX} e CnH$aU H$m Cn`mo J H$aZo g§ ~ § Y r {ZX} { eH$m Cn`mo J Ho $ {bE Zo ~ w b mBμ O a H$mo V¡ ` ma H$aZm - I§ S > (n¥...

  • Page 40: Cn`mo J H$Azo Ho $ {Be Zo ~ W B Mbμ O A H$Mo V¡ ` Ma H$Azm

    NE-C801S-ID_A_M.book Page 40 Thursday, October 14, 2010 5:03 PM Cn`mo J H$aZo Ho $ {bE Zo ~ w b mBμ O a H$mo V¡ ` ma H$aZm gmdYmZr: IarXZo Ho $ ~mX AWdm b§ ~ o g_` go CnH$aU H$m Cn`mo J Z {H$E OmZo H$s Xem _| , `m EH$ hr CnH$aU H$mo EH$ go A{YH$ ì`{º$`m| Ûmam Cn`mo J {H$E OmZo H$s Xem _| Zo ~ w b mBμ...

  • Page 41: Xdm S> M Bzm Am¡ A Nw O } Omo ‹ S > Z M

    NE-C801S-ID_A_M.book Page 41 Thursday, October 14, 2010 5:03 PM Cn`mo J H$aZo Ho $ {bE Zo ~ w b mBμ O a H$mo V¡ ` ma H$aZm Xdm S> m bZm Am¡ a nw O } Omo ‹ S > Z m 1.
  • Page 42 NE-C801S-ID_A_M.book Page 42 Thursday, October 14, 2010 5:03 PM Cn`mo J H$aZo Ho $ {bE Zo ~ w b mBµ O a H$mo V¡ ` ma H$aZm 6. BÝho b o e Z Q> m ° n H$mo Xm{hZr {Xem _| Ky _ mE§ Am¡ a Xdm Ho $ Q¢ > H $ Ho $ gmW V~ VH$ g§ a o { IV H$a| O~ VH$ pŠbH$ H$s Amdmµ...
  • Page 43 NE-C801S-ID_A_M.book Page 43 Thursday, October 14, 2010 5:03 PM Cn`mo J H$aZo Ho $ {bE Zo ~ w b mBμ O a H$mo V¡ ` ma H$aZm 7. E`a Q> ç y ~ H$mo Omo ‹ S | > & E`a Q>...

  • Page 44: Xdm Bo Z M

    NE-C801S-ID_A_M.book Page 44 Thursday, October 14, 2010 5:03 PM Xdm bo Z m 1. XmBª Amo a Ho $ {ZX} e mZw g ma Zo ~ w b mBµ O a {H$Q> H$mo nH$‹ S | > & 45° ghr H$mo U °...
  • Page 45 NE-C801S-ID_A_M.book Page 45 Thursday, October 14, 2010 5:03 PM Xdm bo Z m 3. AnZo S> m ° Š Q> a Am¡ a /`m ñdmñÏ` go d m gbmhH$ma Ho $ {ZX} e m| Ho $ AZw g ma Xdm H$mo ídmg Ho $ _mÜ`_ go b| & {ZåZ Ho $ AZw g ma BÝho b o e Z EQo >...

  • Page 46: Xo I ^Mb Am¡ A Aiaimd

    NE-C801S-ID_A_M.book Page 46 Thursday, October 14, 2010 5:03 PM Xo I ^mb Am¡ a aIaImd Xdm bo Z m 4. CnMma ny U © hmo OmZo na, {~Obr ~§ X H$a X| & Om§ M H$a| {H$ E`a Q> ç y ~ _| H$mo B © g§ K ZZ `m Z_r Z hmo Am¡ a CnH$aU H$mo {~Obr H$s AmCQ>...

  • Page 47: Gμ \ $Mb© H$Azm Am¡ A Amo O Mzm Amo J Muw Z Mez

    NE-C801S-ID_A_M.book Page 47 Thursday, October 14, 2010 5:03 PM gμ \ $mB© H$aZm Am¡ a amo O mZm amo J mUw Z meZ gμ \ $mB© àË`o H $ ~ma Cn`mo J H$aZo Ho $ ~mX gμ \ $mB© g§ ~ § Y r {ZX} e m| H$m nmbZ H$aZo go Xdm Ho $ Q¢ > H $ _| {H$gr ^r eo f Xdm H$mo O_Zo , {OgHo $ H$maU CnH$aU Ûmam Zo ~ w b mBμ...

  • Page 48: Zo ~ W B Mbμ O A Ho $ Nw O M] H$Mo Amo J Muw _W º $ H$Azm

    NE-C801S-ID_A_M.book Page 48 Thursday, October 14, 2010 5:03 PM gµ \ $mB© H$aZm Am¡ a amo O mZm amo J mUw Z meZ 7. `{X H§ $ ào g a J§ X m h¡ , Vmo Bgo nmZr `m hëHo $ {S> Q > O ] Q > Ho $ gmW _w b m`_ ^rJo hþ...
  • Page 49 NE-C801S-ID_A_M.book Page 49 Thursday, October 14, 2010 5:03 PM gμ \ $mB© H$aZm Am¡ a amo O mZm amo J mUw Z meZ do n mo a mBμ O a ho S > H$m aIaImd do n mo a mBμ O a ho S > EH$ _hËdny U © ^mJ h¡ {OgH$m Cn`mo J Xdm H$mo do n mo a mBO H$aZo Ho $ {bE {H$`m OmVm h¡ & BgH$s Xo I ao I H$aVo g_` {ZåZ{b{IV gmdYm{Z`m§...
  • Page 50 NE-C801S-ID_A_M.book Page 50 Thursday, October 14, 2010 5:03 PM gµ \ $mB© H$aZm Am¡ a amo O mZm amo J mUw Z meZ amo J mUw Z meZ nÕ{V Mw Z Zo Ho $ {bE ZrM Xr JB© Vm{bH$m H$m {Xem{ZX} e Ho $ ê$n _| Cn`mo J H$a| & ] O w n S °...
  • Page 51 NE-C801S-ID_A_M.book Page 51 Thursday, October 14, 2010 5:03 PM gμ \ $mB© H$aZm Am¡ a amo O mZm amo J mUw Z meZ : à`mo Á ` × : bmJy Zht gmo { S> ` _ ¹$m§ Q > r Zo a r E§...

  • Page 52: Aiaimd Am¡ A Ñq> M O A O O

    NE-C801S-ID_A_M.book Page 52 Thursday, October 14, 2010 5:03 PM aIaImd Am¡ a ñQ> m o a o O AnZo CnH$aU H$mo ~o h Va pñW{V _| ~ZmE aIZo Am¡ a CnH$aU H$mo Iam~ hmo Z o go ~MmZo Ho $ {bE {ZåZ {ZXo e m| H$m nmbZ H$a| : Mo V mdZr: •...

  • Page 53: E`a {Μ \ $Ëq> A ~Xbzm

    Zmo Q > : • Bg CnH$aU Ho $ {bE {S> μ O mBZ {H$E JE OMRON {μ \ $ëQ> a H$m hr Cn`mo J H$a| & {~Zm {μ \ $ëQ> a Ho $ g§ M m{bV Z H$a| & •...

  • Page 54: G_Ñ`m {Zdmau

    Zmo Q > : `{X gw P mE JE Cnm` go g_ñ`m H$m {ZdmaU Zht hmo V m h¡ , Vmo CnH$aU H$s _aå_V H$aZo H$m à`mg Z H$a| - `y { ZQ> Ho $ nw O ] _aå_V `mo ½ ` Zht h¢ & H¥ $ n`m A{YH¥ $ V OMRON {dVaH$ go g§ n H© $ H$a| &...

  • Page 55: Vh$Zrh$S So > Q > M

    {~Zm ny d © gy M Zm Ho $ VH$ZrH$s g§ e mo Y Z Ho $ AYrZ& • OMRON OMRON HEALTHCARE Co., Ltd., CËnmX H$m {Z_m© U OmnmZ H$s H§ $ nZr Ûmam H$‹ S > r Jw U dÎmm àUmbr Ho $ A§ V J© V {H$`m OmVm h¡ &...
