Owner's Manual and Instructions
Agricultural Animal Confinement Building Heaters
Congratulations!
You have purchased the finest agricultural building heater available.
Your new L.B. White heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products and
welcome any suggestions or comments you may have......call us, at
001-608-783-5691.
ATTENTION ALL USERS
This heater has been designed and developed as a direct gas-fired circulating heater
for the heating of agricultural animal confinement buildings, and is approved for
indoor or outdoor mounting. The heater has been evaulated by Novida Testing
Services and conforms to the relevant requirements of SANS 1539:2008. If you are
considering using this product for any application other than it's intended use, contact
your local agent or the L. B. White Co., Inc. in the U.S.A. at 001-608-783-5691.

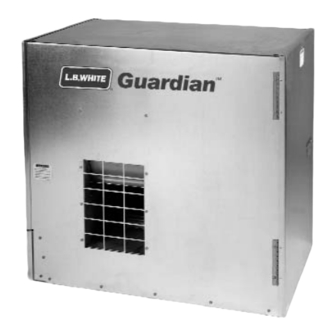

MODELS
OUTPUT
AW250
73.3 kW
FUEL
LPG
150-28063 REV.A
