Owner's Manual and Instructions
GUARDIAN

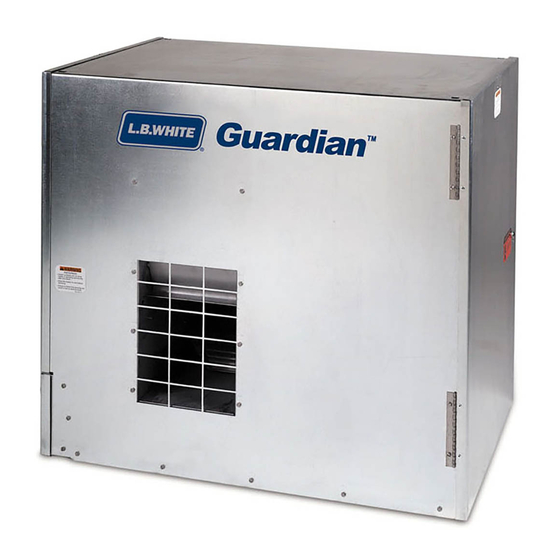

Agricultural Animal Confinement Building Heater
®
MODELS
OUTPUT (Btuh)
FUEL
Available in
either L.P. Gas
AB250
250,000
Vapor Withdrawal
or Natural Gas
Configurations.
Certification by:
* Specific models are certified by C.S.A. International.
Contact L.B. White co. for further information.
Congratulations!
You have purchased the finest agricultural building heater available.
Your new L.B. White heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products and
welcome any suggestions or comments you may have...call us, toll-free,
at 1-800-345-7200.
ATTENTION ALL USERS
This heater has been tested and evaluated by C.S.A. International in accordance
with ANSI/IAS U.S. LC2-1996 as well as the Canadian Gas Association Standard for
Gas Fired Brooders, CAN1-2.20-M85 and is listed and approved as a direct gas-
fired circulating heater for the heating of agricultural animal confinement buildings.
If you are considering using this product for any application other than its intended
use, then please contact your fuel gas supplier, or the L.B. White Co., Inc.
150-24206
