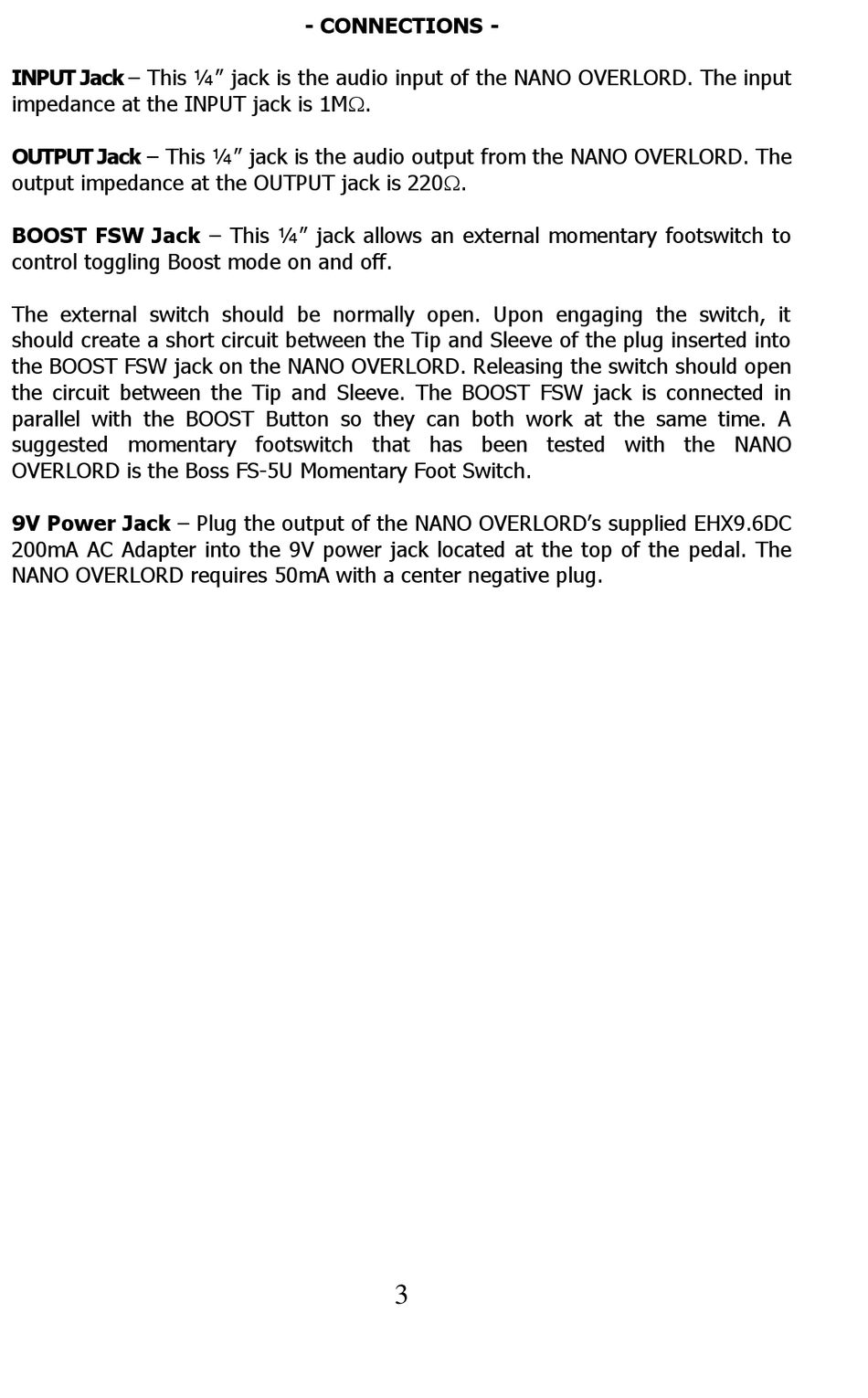

- CONNECTIONS -

INPUT Jack – This ¼" jack is the audio input of the NANO OVERLORD. The input
impedance at the INPUT jack is 1M.
OUTPUT Jack – This ¼" jack is the audio output from the NANO OVERLORD. The
output impedance at the OUTPUT jack is 220.
BOOST FSW Jack – This ¼" jack allows an external momentary footswitch to
control toggling Boost mode on and off.
The external switch should be normally open. Upon engaging the switch, it
should create a short circuit between the Tip and Sleeve of the plug inserted into
the BOOST FSW jack on the NANO OVERLORD. Releasing the switch should open
the circuit between the Tip and Sleeve. The BOOST FSW jack is connected in
parallel with the BOOST Button so they can both work at the same time. A
suggested momentary footswitch that has been tested with the NANO
OVERLORD is the Boss FS-5U Momentary Foot Switch.
9V Power Jack – Plug the output of the NANO OVERLORD's supplied EHX9.6DC
200mA AC Adapter into the 9V power jack located at the top of the pedal. The
NANO OVERLORD requires 50mA with a center negative plug.
