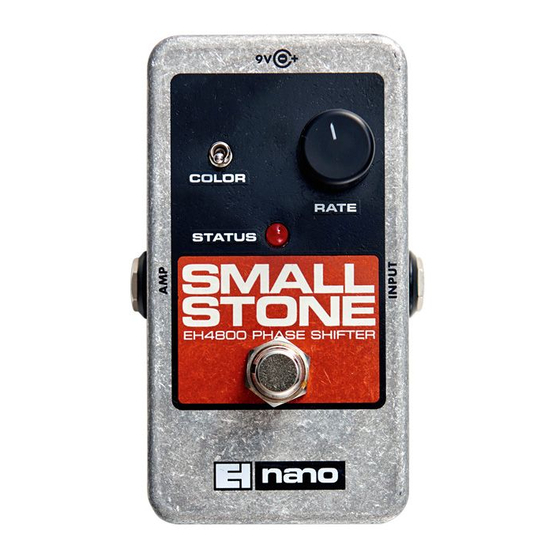

SMALL STONE
Phase Shifter
Congratulations on your purchase of the Electro-Harmonix Nano Stone! The
Nano Stone is identical to the Electro-Harmonix Small Stone, just smaller.
The Small Stone was first manufactured back in the early 70's making it one
of the first compact phase shifters on the market. To this day, the Small
Stone is still the pedal to use when musicians want a fat, warm analog phase
shifter.
- OPERATING INSTRUCTIONS -
Connect your instrument to the INPUT jack. Connect your amplifier to the
AMP jack. Please note that whenever a plug is inserted into the INPUT jack,
the Nano Stone is ON and it is draining current from the battery.
The STATUS LED will light up when the Nano Stone is in effect mode. When
in True Bypass mode, the LED will be off. Use the FOOTSWITCH to toggle
between effect and True Bypass mode.
The RATE control adjusts the speed of the phasing sweep, turn RATE
clockwise for a faster sweep.
The COLOR Switch changes the sound of the phase shift between a full and
robust phase shift in the DOWN position to a more pronounced instance
phase shift in the UP position. When in the UP position, notice how the Nano
Stone carves into the frequency spectrum hollowing out the sound.
Fundamentals and harmonics glide in and out for an extremely pronounced
shifting effect. Return the COLOR switch to the down position and notice the
fullness.
