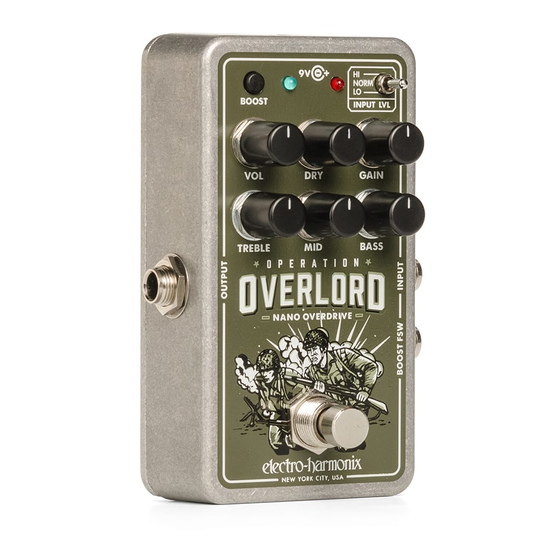

NANO OPERATION OVERLORD
Multi-Instrumental Overdrive
Congratulations on your purchase of the NANO OPERATION OVERLORD, a
compact full-featured overdrive and distortion pedal.
OVERLORD's broad range of options and controls you can easily dial in great
drive sounds for any instrument. Active 3-band EQ controls, switchable BOOST
mode, and a dry blend provide versatility for different tones. You can create mild
overdrive to thick distortion, crank the volume to use the pedal as a boost with
or without grit, or generate unconventional sounds like intensely filtered clipping,
all with a few straightforward controls.
WARNING: Your Nano Operation Overlord comes equipped with an Electro-Harmonix
9.6DC-200BI power supply. The Nano Overlord requires 50mA at 9VDC with a center
negative plug. Use of the wrong adapter or a plug with the wrong polarity may damage
your Nano Overlord and void the warranty. Do not exceed 10.5VDC on the power plug.
Power supplies rated for less than 50mA will cause the Nano Overlord to act unreliably.
Amp-like JFET overdrive with three gain stages
Switchable boost mode for saturated distortion tones
Active 3-band EQ for ultimate control
Dry blend knob for preserving the instrument's harmonic content, character,
and full frequency range
Three-position input level sets the gain range perfectly for any instrument
High-quality buffered bypass and soft switching
- MODES OF OPERATION: NORMAL VS. BOOST -
The NANO OVERLORD operates in two modes: NORMAL and BOOST. The
NORMAL mode uses three amp-like JFET gain stages for low to medium gain
sounds. The BOOST mode adds a classic pedal-style overdrive circuit before the
JFET stages to increase overall distortion. BOOST is engaged with the BOOST
pushbutton or an external momentary footswitch, and is active when the blue
LED is lit. In BOOST mode, a fixed amount of additional gain from the BOOST
circuit is fed into the main JFET circuit. The GAIN knob still controls the amount
of overdrive in BOOST mode, with more overall distortion on tap.
- FEATURES -
1
With the NANO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Electro-Harmonix NANO OPERATION OVERLORD
Summary of Contents for Electro-Harmonix NANO OPERATION OVERLORD

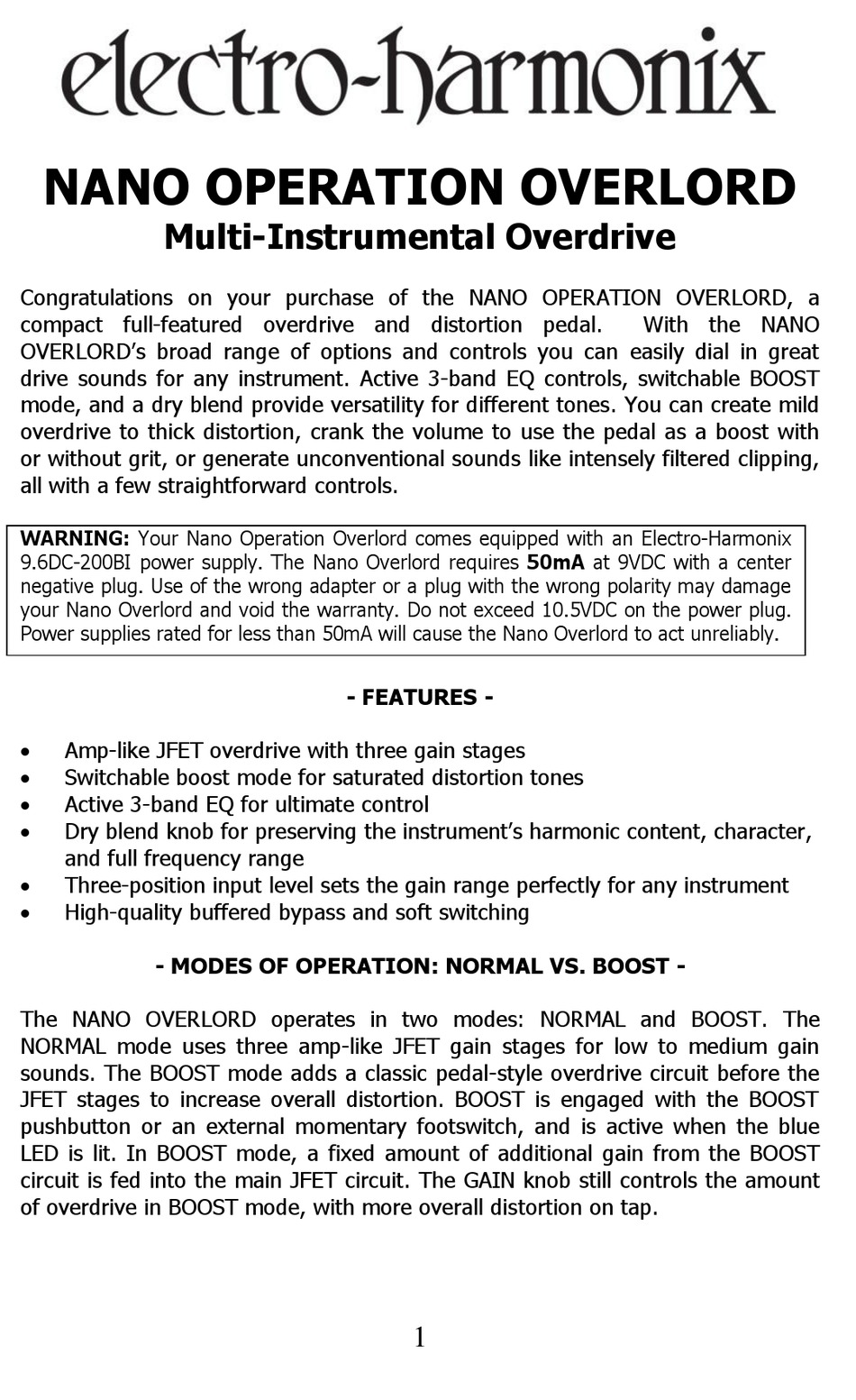

- Page 1 NANO OPERATION OVERLORD Multi-Instrumental Overdrive Congratulations on your purchase of the NANO OPERATION OVERLORD, a compact full-featured overdrive and distortion pedal. With the NANO OVERLORD’s broad range of options and controls you can easily dial in great drive sounds for any instrument. Active 3-band EQ controls, switchable BOOST mode, and a dry blend provide versatility for different tones.
- Page 2 - CONTROLS - GAIN Knob – The GAIN knob controls the amount of overdrive/distortion. As you turn GAIN clockwise, the amount of input gain increases. DRY Knob – The DRY knob mixes a clean unaltered signal with the distortion produced by the NANO OVERLORD. At the minimum position of the DRY knob, the output is 100% overdrive effect, and at the maximum position the output is 100% clean.
- Page 3 - CONNECTIONS - INPUT Jack – This ¼” jack is the audio input of the NANO OVERLORD. The input impedance at the INPUT jack is 1M. OUTPUT Jack – This ¼” jack is the audio output from the NANO OVERLORD. The output impedance at the OUTPUT jack is 220.
- Page 4 - WARRANTY INFORMATION - Please register online at http://www.ehx.com/product-registration or complete and return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to operate due to defects in materials or workmanship for a period of one year from date of purchase.
