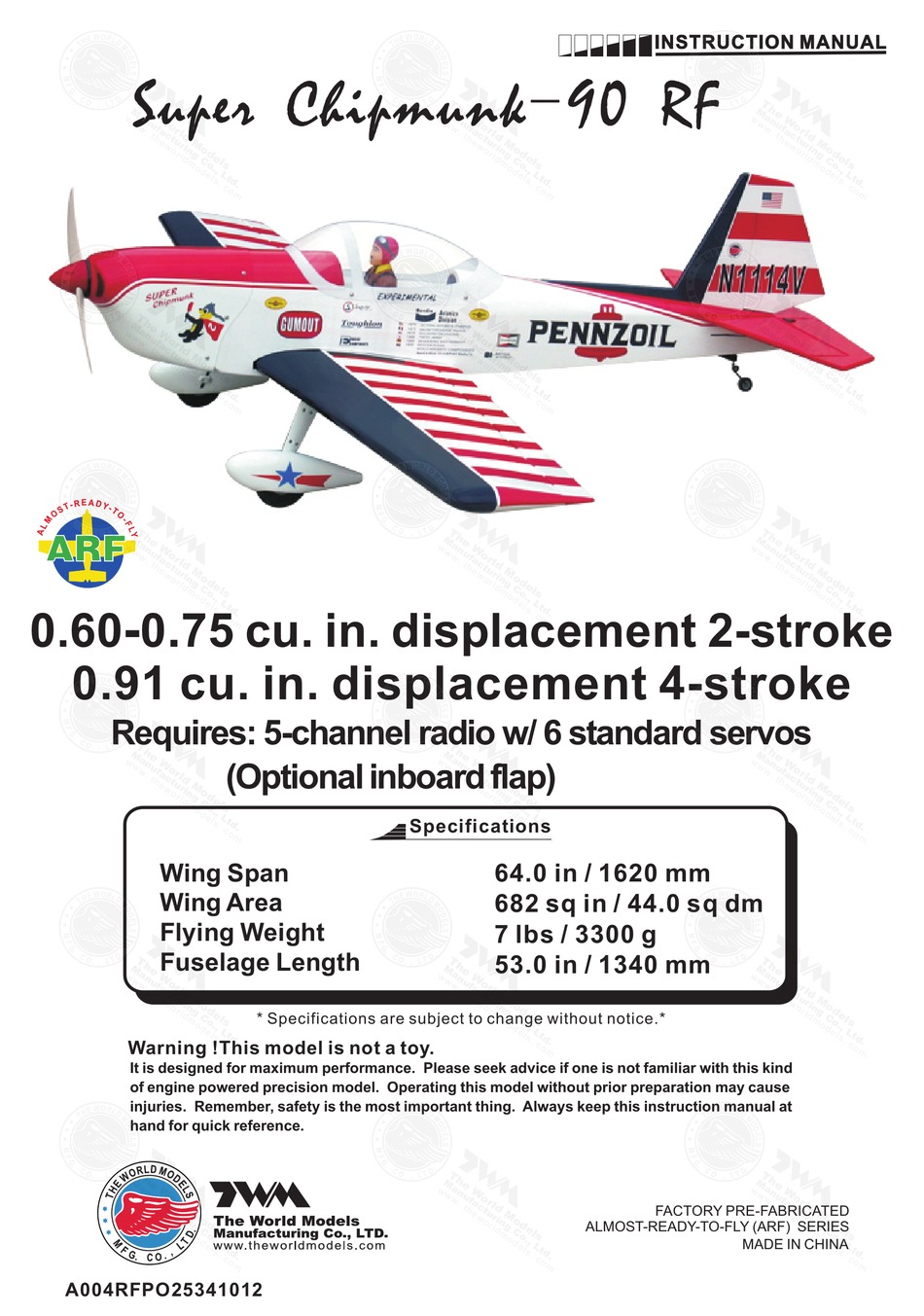

Super Chipmunk-90 RF
-
.
0.60
0
75 cu. in. displacement 2-stroke
0.91 cu. in. displacement 4-stroke
Requires: 5-channel radio w/ 6 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
A004RFPO25341012
(Optional inboard flap)
* Specifications are subject to change without notice.*
Specifications
64.0 in / 1620 mm
682 sq in / 44.0 sq dm
7 lbs / 3300 g
53.0 in / 1340 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super Chipmunk-90 RF and is the answer not in the manual?

Questions and answers

Related Manuals for TWM Super Chipmunk-90 RF

Summary of Contents for TWM Super Chipmunk-90 RF

  • Page 1 INSTRUCTION MANUAL Super Chipmunk-90 RF 0.60 75 cu. in. displacement 2-stroke 0.91 cu. in. displacement 4-stroke Requires: 5-channel radio w/ 6 standard servos (Optional inboard flap) Specifications Wing Span 64.0 in / 1620 mm Wing Area 682 sq in / 44.0 sq dm...

  • Page 2: Before You Begin

    Super Chipmunk-90 RF I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do.

  • Page 3: Parts List

    Parts List 1. MAIN WING -- 1 pair M4 NUT -- 8 pcs SPINNER Ø57mm PL2111057 -- 1 pc. 2. MAIN LANDING GEAR -- 1 pair THROTTLE PUSHWIRE Ø1.2x440mm -- 1 pc. MOUNTING PLATE 12x20mm -- 4 pcs PLASTIC TUBE d2xD3x250mm -- 1 set SCREW PA2.6x10mm -- 8 pcs SCREW PM2x8mm -- 8 pcs 14.

  • Page 4: Bottom View

    Aileron Aileron Servo Lead Pre-glued Bottom View 2mm Nut PM2x8mm Main Landing Gear PA2.6x10mm 2mm Washer PA2.6x10mm Screw Main Landing Gear Cover PM2x8mm Screw 2mm Washer 2mm Nut Bottom View Landing Gear PA2.6x10mm Screw 3mm Set Screw 4.1mm Collar 3mm Set Screw 4.1mm Collar PA2.6x10mm Wheel Ø76mm...

  • Page 5: Aileron Servo

    PWA2x8mm Aileron Servo Screw PWA2 x 8mm PB2x16mm Aileron Servo PB2x20mm PB2x20mm TWM PL8210010 CLEVIS WRENCH Screw PB2x16mm Fuel Tube Screw PB2x20mm Straper Tri-Horn Fuel Tube M3x9mm Ø1mm pilot holes for World Models tri-horn pre-drilled.Please look for pin-hole marks at under side of control surfaces.

  • Page 6: Stabilizer & Elevator

    Flap Servo 1.5mm Straper Flap Servo TWM PL8210010 CLEVIS WRENCH Fuel Tube Clevis Ring Stabilizer & Elevator Pre-glued (Stabilizer) (Main Wing) B=B' Te mpo ra ry i n sta l l th e mai n w i n g ,...
  • Page 7 Vertical Fin & Rudder Vertical Fin / Rudder PA3x12mm Screw Pre-glued Pre-glued 3mm Set Screw 2.1mm Collar 3mm Set Screw PA3x12mm 2.1mm Collar Fuel Tank Fuel Tank DOUBLE-SIDED TAPE 40x100mm CABLE TIE 1.5x5x400mm Engine Mount Engine Mount M4x25mm Socket Head Screw Engine Mount d4xD9mm Washer PL5111070...

  • Page 8: Elevator Pushrod

    PWA2.6x12mm Silicon Grommet d1.5 x D6.5 mm d1.5xD6.5mm Silicon Grommet Fuselage PWA2.6 x 12 mm Elevator Pushrod TWM PL8210010 CLEVIS WRENCH PB2x16mm Screw PB2x16mm Elevator Tri-horn Clevis Ø1mm pilot holes for World Models tri-horn Fuel Tube are pre-drilled. Please look for pin-hole marks at under side of control surfaces.

  • Page 9: Rudder Pushrod

    Fuel Tube PB2x16mm Screw Tri-Horn M3x14mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole PB2x16mm TWM PL8210010 marks at under side of control surfaces. CLEVIS WRENCH Servo Set 3x3mm Set Screw Linkage Connector Washer Washer 2m m Throttle Servo.
  • Page 10 PWA2.3 X 8mm Screw Canopy PWA2.3 X 8mm Screw d1.5 x D6.5mm Silicon Grommet PWA2.3 X 8mm Screw d1.5 x D6.5mm Silicon Grommet PC001085A Main Wing HM4x35mm d4xD15mm Washer HM4x35mm Screw d4xD15mm Washer Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A004RFPO25341012...

  • Page 11: Control Throws

    - a d j u s t e d a i r c r a f t . Super Chipmunk-90 RF i s s p e c i a l l y d e s i g n e d t o b e p o w e r e d b y 2 C 0 . 6 0 - 0 . 7 5 o r 4 C 0 . 9 1 e n g i n e , u s i n g a m o r e p o w e r f u l e n g i n e d o e s n o t m e a n b e t t e r p e r f o r m a n c e .
  • Page 12 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 13 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 14 180mm Extension Package Code No. Package Code No. Size Size Code No. Package Size Package Code No. Size Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small Package (EP)clevis. Code No. Size KP0041300 Package Code No. Size SV2031 1 set...
  • Page 15 A004RFPO25341012...
