SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, PROFINET
and CAN.
By Pressing the "Set Communication" button from the main window for SW67B73 (Fig.
2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "PROFINET Master" are:
In the fields "IP Address" the IP address for PROFINET side of the converter is
defined;
In the fields "SubNet
is defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field "Name of Station" the name of the PROFINET node is defined.
The means of the fields for "CAN" are:
In the field "Baudrate" the data rate used for CAN communication is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for PROFINET side of the converter
User Manual PROFINET Master / CAN
Document code: MN67B73_ENG Revision 1.000

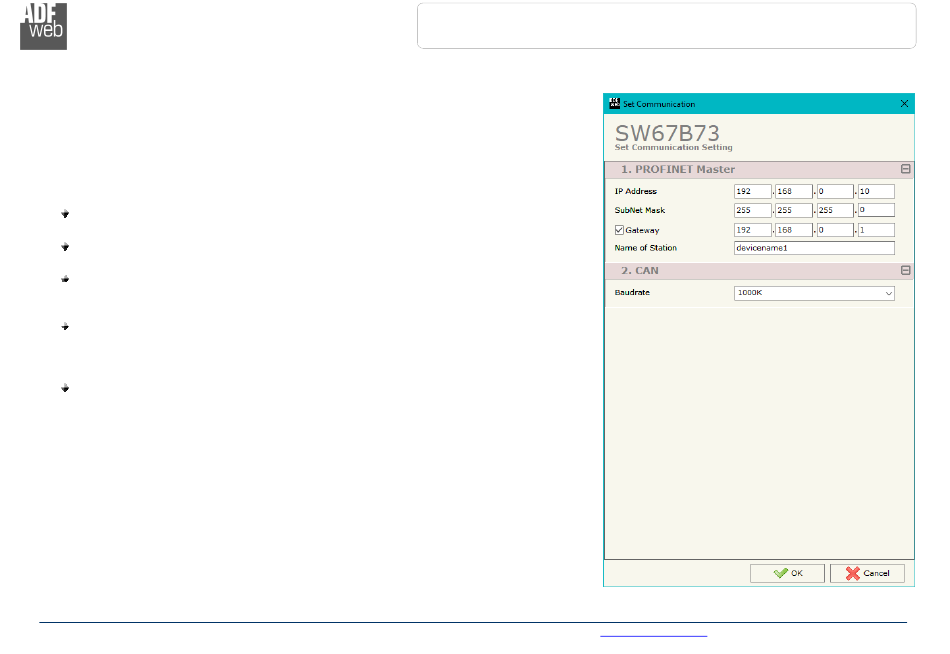

Figure 3: "Set Communication" window
