SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA and
KNX.
By Pressing the "Set Communication" button from the main window for SW67B18 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Client" are:
In the field "IP Address" the IP address for OPC UA side of the converter is defined;
In the field "SubNet Mask" the SubNet Mask for OPC UA side of the converter is
defined;
In the field "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field.
The means of the fields for "KNX" are:
In the field "Type" the type of KNX is defined (fixed to 'KNX TP');
In the field "ID Device" the ID of the KNX side of the converter is defined.
The means of the fields for "NTP (Network Time Protocol)" are:
In the field "Server URL" the URL or the IP Address of the NTP Server is defined;
In the field "Poll Time
defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
(seconds)" the polling time for the time synchronization is
User Manual OPC UA Client / KNX
Document code: MN67B18_ENG Revision 1.000

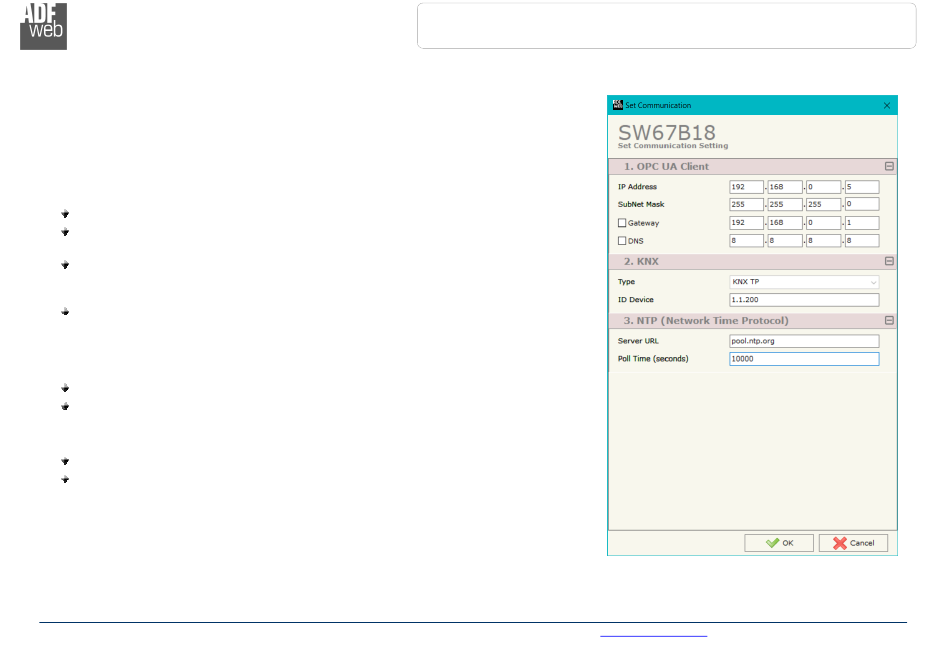

Figure 3: "Set Communication" window
