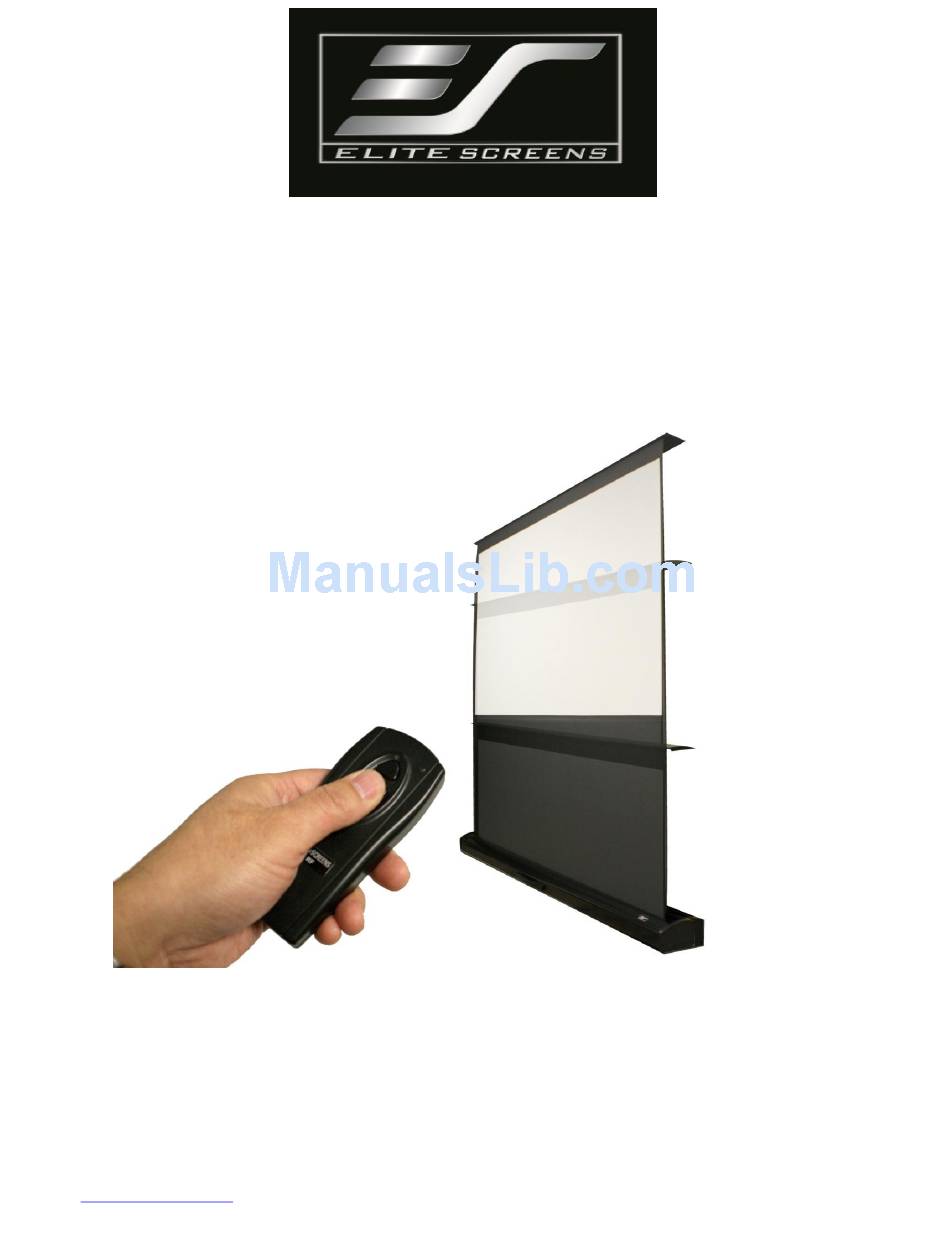

- Page 1 Kestrel Series Electric Floor Rising Projection Screen USER’S GUIDE Rev. 062310-JA www.elitescreens.com info@elitescreens.com...
- Page 2 Please retain this manual for future reference. b. To avoid any damages to the screen, do not use any accessories or parts not recommended by Elite Screens. c. Handle the device carefully during transportation. d. Do not set up screen on uneven surfaces.
- Page 3 NOTE: This equipment has been tested and found to comply with the limit s for a Class B digital device pursuant to Part 15 of the FCC Guidelines. The products are designed t o provide reasonable protection against harmful interference in a residential/commercial installation and end user application and may radiate radio frequency energy.
- Page 4 IR receiver window Controlling the Kestrel Series with the 5-12V trigger, Extended IR “eye” receiver or 3-way wall box switch: 1. 5-12V Trigger: Connect the 5-12 volt trigger cable to your projector’s trigger output via a separate cable that may or may not be provided by the projector manufacture. The trigger feature will not work without an output cable from the projector, but it can be tested using a 9-volt battery by simply connecting the Red (+) and Green (-) cable to the 9-volt battery 2.
- Page 5 Masking Heigh Length Case Height Border (KGS) Ratio (A2) (A3) Border Border t (B2) (A1) (B1) (B4) (A4) (B3) FE72V 72" (4:3) 1666.0 1634.0 1564.0 1463.0 1951.5 1097.3 2061.5 762.0 21.8 FE84V 84" (4:3) 1910.0 1878.0 1807.9 1706.9 2007.4 1280.2 2117.4...
- Page 6 Kestrel Tension Series Dimensions Table Unit: mm L/R Black Screen Screen Diagonal Case Screen View View Bottom panel Masking black Material to Overall N.W. Model Size/Aspect Length Width Width Height black Length Border drop Bottom Height (KGS) Ratio (A2) (A3) (B2) drop (B4) (A1)
- Page 7 : If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
