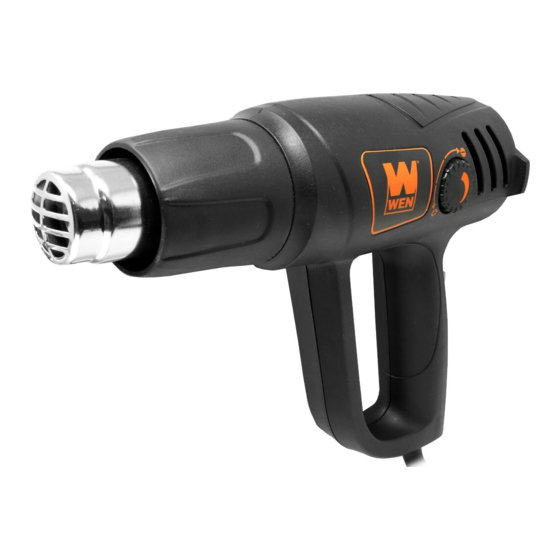

MODEL HG112V
DUAL TEMPERATURE
HEAT GUN
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Related Manuals for Wen HG112V
Summary of Contents for Wen HG112V
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Heat Gun Safety Warnings ................6 Electrical Information ..................7 BEFORE OPERATING Know Your Heat Gun ..................8 OPERATION & MAINTENANCE Operation ......................9 Maintenance ....................11 Troubleshooting Guide ..................12 Exploded View &... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Heat Gun. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this op- erator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Heat Gun Safety Warnings
HEAT GUN SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. HEAT GUN SAFETY 1. DO NOT TOUCH the end of the heat gun during or 9. NEVER BLOCK the inlet grill (slits on the side of directly after operation. -
Page 7: Electrical Information
ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. -
Page 8: Before Operating
TOOL PURPOSE Remove adhesives, mold plastics, or strip paint with your WEN Heat Gun. Refer to the following diagrams to be- come familiarized with all the parts and controls of your heat gun. The components will be referred to later in the manual for assembly and operation instructions. -
Page 9: Operation & Maintenance
OPERATION SPEED AND TEMPERATURE Your heat gun is equiped with a 2 speed power switch, as well as a temperature dial. Follow the directions below to adjust the speed and temperature of your heat gun. 1. Toggle the switch to the lower position (so you can see the "0" at the top) to turn the device OFF and plug the heat gun into an AC 120V 60 Hz receptacle. - Page 10 OPERATION REMOVING PAINT 1. Toggle the switch to the low setting and allow the heat gun to warm up. It will take approximately 90 seconds for the tool to reach its full heat potential. Always test on a non-critical portion or a scrap piece of similar material. 2.
-
Page 11: Maintenance
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements should only be performed by an authorized technician. For any questions, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. Problem Possible Cause Solution... -
Page 13: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST 4.2 4.3... - Page 14 EXPLODED VIEW & PARTS LIST Part No. Description Qty. HG112V-001 Housing HG112V-002 Left Housing HG112V-003 HG112V-004 Motor Assembly HG112V-004.1 Motor HG112V-004.2 Motor Support HG112V-004.3 Screw HG112V-004.4 HG112V-005 Screw HG112V-006 Fan Cover HG112V-007 Heating Element Assembly HG112V-007.1 Heat Cover HG112V-007.2 Mica Sheet HG112V-007.3...
-
Page 15: Warranty Statement
(2) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for professional or commercial use. - Page 16 THANKS FOR REMEMBERING V. 2019.11.06...
