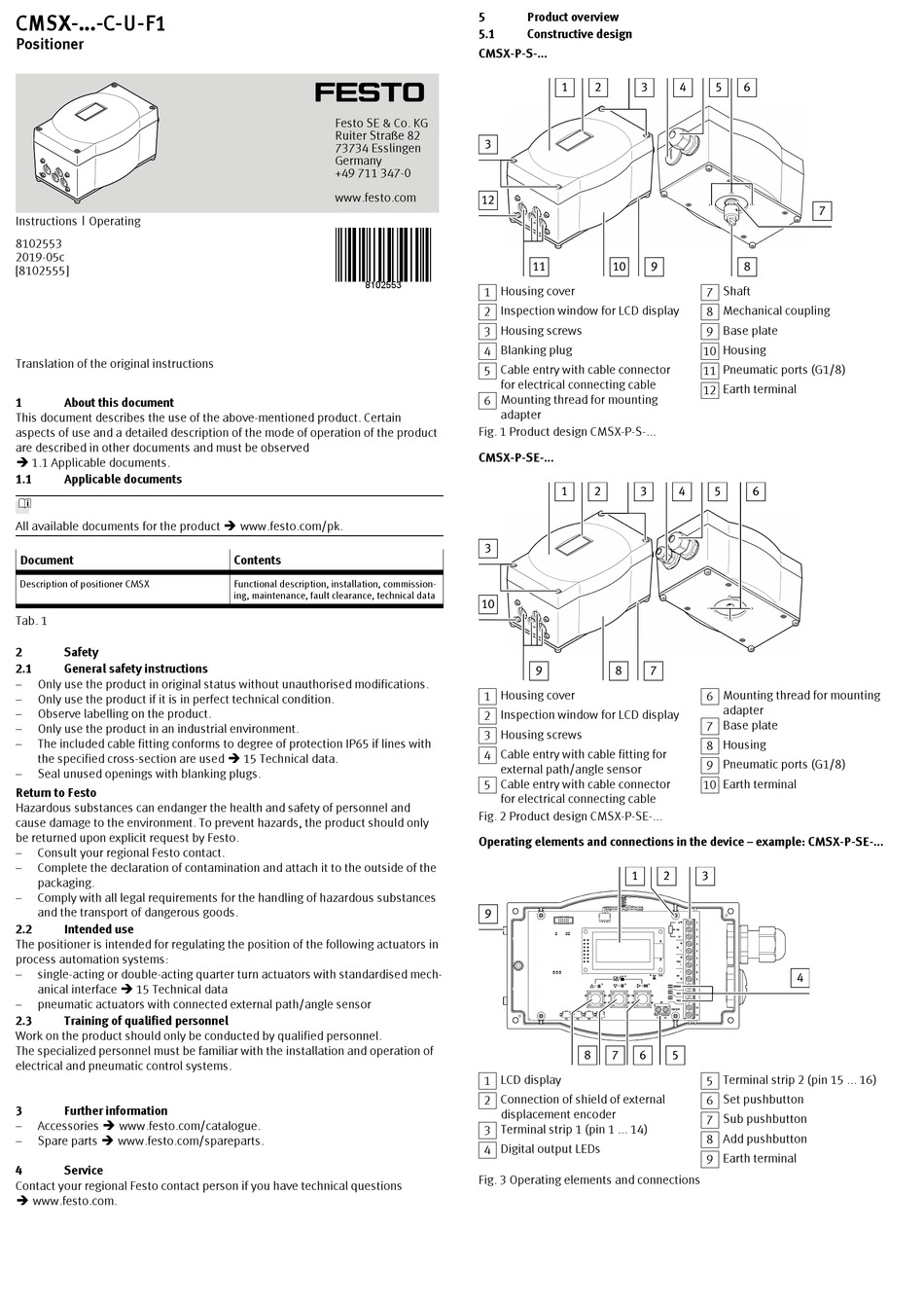

Festo CMSX C-U-F1 Series Translation Of The Original Instructions

CMSX-...-C-U-F1

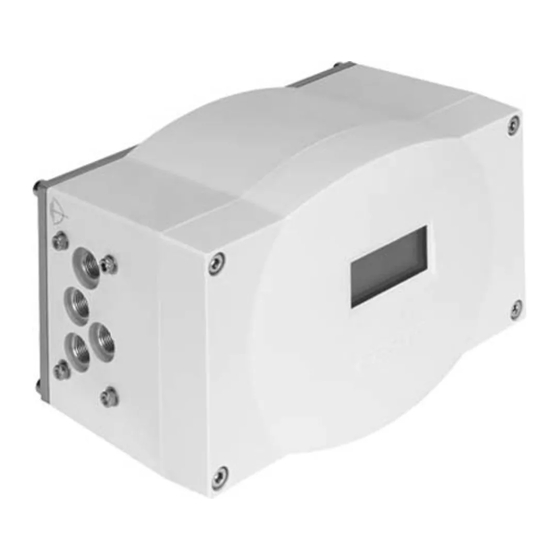

Positioner
Instructions | Operating
8102553
2019-05c
[8102555]
Translation of the original instructions
1 About this document
This document describes the use of the above-mentioned product. Certain
aspects of use and a detailed description of the mode of operation of the product
are described in other documents and must be observed
è 1.1 Applicable documents.
1.1 Applicable documents
All available documents for the product è www.festo.com/pk.
Document
Description of positioner CMSX
Tab. 1
2 Safety
2.1 General safety instructions
– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Observe labelling on the product.
– Only use the product in an industrial environment.
– The included cable fitting conforms to degree of protection IP65 if lines with
the specified cross-section are used è 15 Technical data.
– Seal unused openings with blanking plugs.
Return to Festo
Hazardous substances can endanger the health and safety of personnel and
cause damage to the environment. To prevent hazards, the product should only
be returned upon explicit request by Festo.
– Consult your regional Festo contact.
– Complete the declaration of contamination and attach it to the outside of the
packaging.
– Comply with all legal requirements for the handling of hazardous substances
and the transport of dangerous goods.
2.2 Intended use
The positioner is intended for regulating the position of the following actuators in
process automation systems:
– single-acting or double-acting quarter turn actuators with standardised mech-
anical interface è 15 Technical data
– pneumatic actuators with connected external path/angle sensor
2.3 Training of qualified personnel
Work on the product should only be conducted by qualified personnel.
The specialized personnel must be familiar with the installation and operation of
electrical and pneumatic control systems.
3 Further information
– Accessories è www.festo.com/catalogue.
– Spare parts è www.festo.com/spareparts.
4 Service
Contact your regional Festo contact person if you have technical questions
è www.festo.com.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8102553
Contents
Functional description, installation, commission-
ing, maintenance, fault clearance, technical data
5 Product overview
5.1 Constructive design
CMSX-P-S-...
1 Housing cover
2 Inspection window for LCD display
3 Housing screws
4 Blanking plug
5 Cable entry with cable connector
for electrical connecting cable
6 Mounting thread for mounting
adapter
Fig. 1 Product design CMSX-P-S-...
CMSX-P-SE-...
1 Housing cover
2 Inspection window for LCD display
3 Housing screws
4 Cable entry with cable fitting for
external path/angle sensor
5 Cable entry with cable connector
for electrical connecting cable
Fig. 2 Product design CMSX-P-SE-...
Operating elements and connections in the device – example: CMSX-P-SE-...
1 LCD display
2 Connection of shield of external
displacement encoder
3 Terminal strip 1 (pin 1 ... 14)
4 Digital output LEDs
Fig. 3 Operating elements and connections
7 Shaft
8 Mechanical coupling
9 Base plate
10 Housing
11 Pneumatic ports (G1/8)
12 Earth terminal
6 Mounting thread for mounting
adapter
7 Base plate
8 Housing
9 Pneumatic ports (G1/8)
10 Earth terminal
5 Terminal strip 2 (pin 15 ... 16)
6 Set pushbutton
7 Sub pushbutton
8 Add pushbutton
9 Earth terminal
