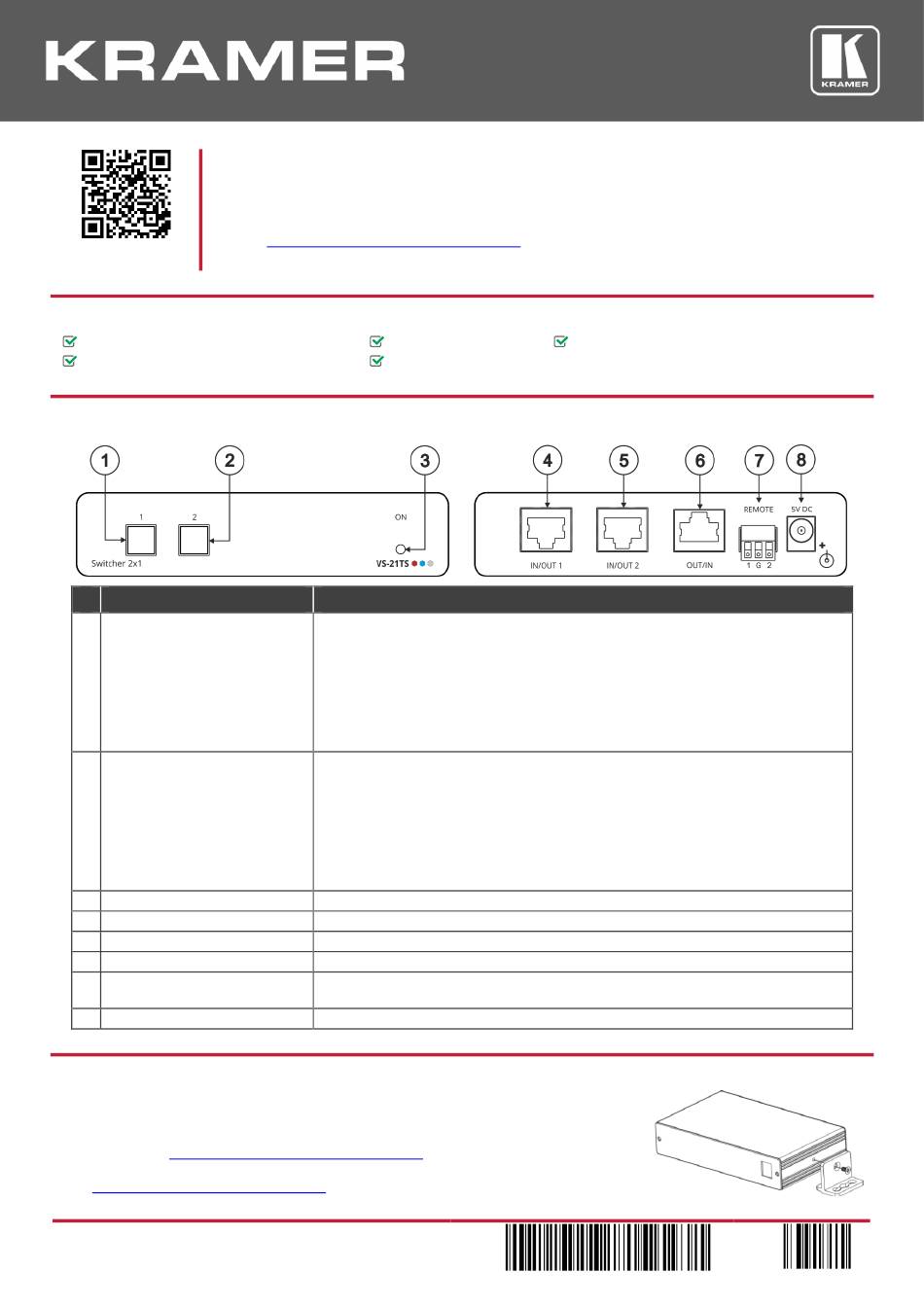

Kramer VS-21TS Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

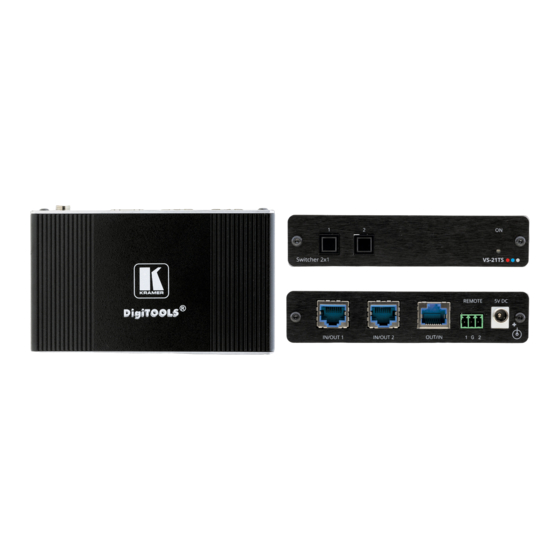

VS-21TS Switcher 2x1
1 Power adapter and cord
Step 2: Get to know your VS-21TS
# Feature
1 1 Button
2 2 Button
3 ON LED
4 IN/OUT 1 RJ-45 Connector
5 IN/OUT 2 RJ-45 Connector
6 OUT/IN RJ-45 Connector
7 REMOTE 3-pin Terminal Block
Connector
8 5V DC Power Connector
Step 3: Install VS-21TS
Install VS-21TS using one of the following methods:
Attach the rubber feet and place the unit on a flat surface.
Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more
information go to www.kramerav.com/downloads/VS-21TS.
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VS-21TS).
VS-21TS Quick Start (P/N: 2900-301059QS REV 1)
VS-21TS Quick Start Guide
This guide helps you install and use your VS-21TS for the first time.
Go to www.kramerav.com/downloads/VS-21TS
firmware upgrades are available.
4 Rubber feet
1 Quick start guide
Function
If a transmitter is connected to IN/OUT 1 and a receiver is connected to OUT/IN,
press to route the transmitter Ethernet/HDBT signals + PoE to the receiver.
If a receiver is connected to IN/OUT 1 and a transmitter is connected to OUT/IN,
press to route the OUT/IN Ethernet/HDBT signals + PoE to the IN/OUT 1 receiver
only.
When selected, this button is illuminated.
If a transmitter is connected to IN/OUT 2 and a receiver is connected to OUT/IN,
press to route the transmitter Ethernet/HDBT signals + PoE to the receiver.
If a receiver is connected to IN/OUT 2 and a transmitter is connected to OUT/IN,
press to route the OUT/IN Ethernet/HDBT signals + PoE to the IN/OUT 2 receiver
only.
When selected, this button is illuminated.
Lights green when the device is powered.
Connect to an Ethernet or HDBT transmitter / receiver.
Connect to an Ethernet or HDBT transmitter / receiver.
Connect to an Ethernet or HDBT receiver / transmitter.
Connect to remote contact-closure switches for remote control.
5V DC connector for powering the unit.
to download the latest user manual and check if
1 Bracket set
P/N: 2 9 0 0 - 3 0 1 0 5 9 QS
Rev: 1
