Summary of Contents for Kramer VA-10

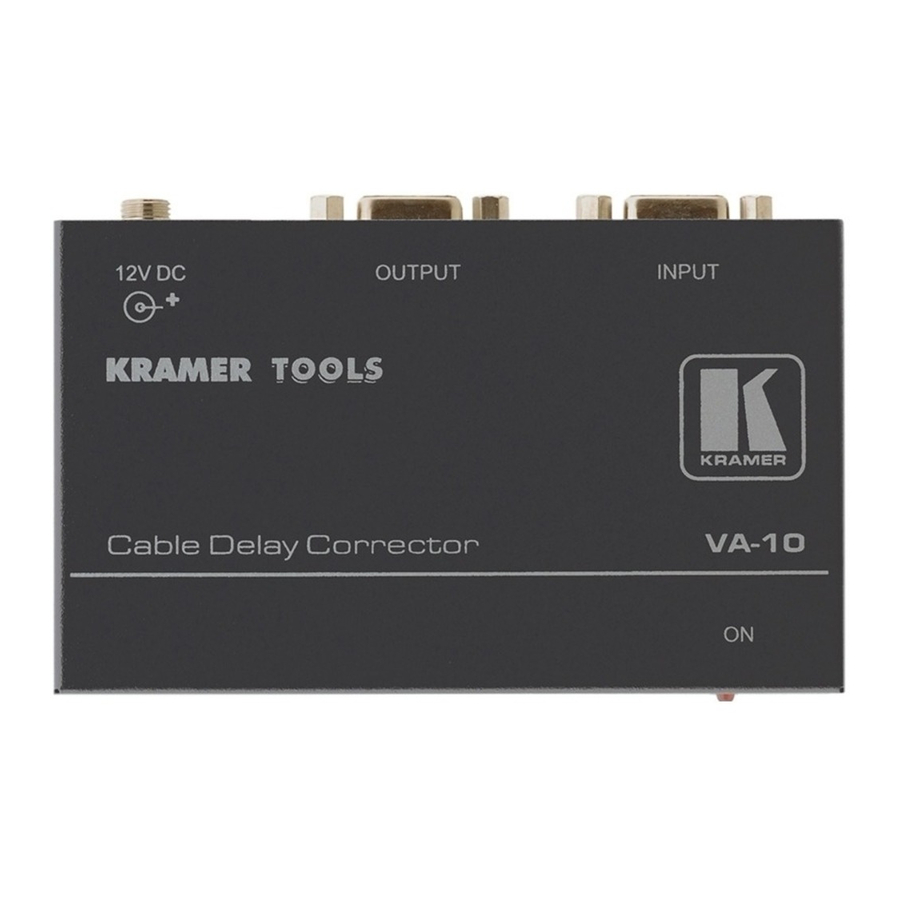

- Page 1 KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: VA-10 Cable Delay Corrector P/N: 2900-000052 Rev 2...
-
Page 2: Table Of Contents
Overview Defining the VA-10 Cable Delay Corrector Connecting the VA-10 Technical Specifications Figures Figure 1: VA-10 Cable Delay Corrector Figure 2: Connecting the VA-10 Cable Delay Corrector VA-10 – Contents... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VA-10 Cable Delay Corrector, which is ideal for the following typical applications: •... -
Page 4: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VA-10 away from moisture, excessive sunlight and dust VA-10 - Getting Started... -
Page 5: Overview
RGB, or twisted pair signals that causes misconvergence on the display. The VA-10 lets you adjust and thus match the delays in the three signals. The VA-10 features controls for adjusting the red, green and blue skew (delay) individually and independently. - Page 6 Insert a screwdriver into the small hole and carefully rotate it to adjust the delay GREEN Trimmer Adjusts the green delay (up to 62ns) Adjust as above RED Trimmer Adjusts the red delay (up to 62ns) Adjust as above ON LED Illuminates when receiving power VA-10 - Overview...
-
Page 7: Connecting The
2. Connect the 15-pin HD (F) OUTPUT connector on the VA-10, to the RGB acceptor (for example, a projector). 3. On each of the VA-10, TP-120 and PT-110, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity. -
Page 8: Figure 2: Connecting The Va-10 Cable Delay Corrector
Figure 2: Connecting the VA-10 Cable Delay Corrector VA-10 - Connecting the VA-10... -
Page 9: Technical Specifications
12 cm x 7.5 cm x 2.5 cm (4.7" x 2.95" 0.98", W, D, H) WEIGHT: 0.3 kg (0.67 lbs.) approx ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-T3 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VA-10 - Technical Specifications... - Page 10 VA-10 - Technical Specifications...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
