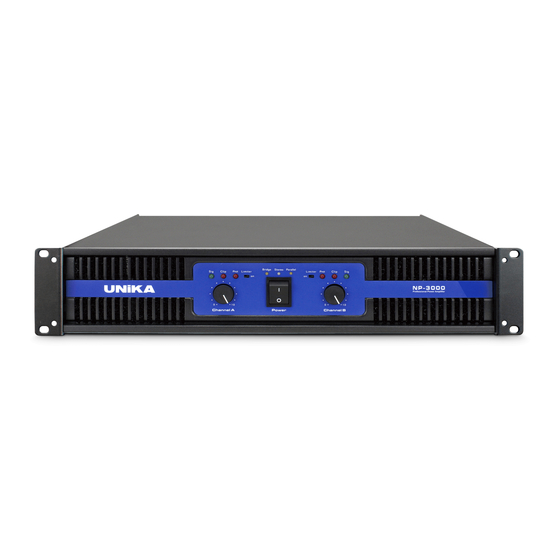

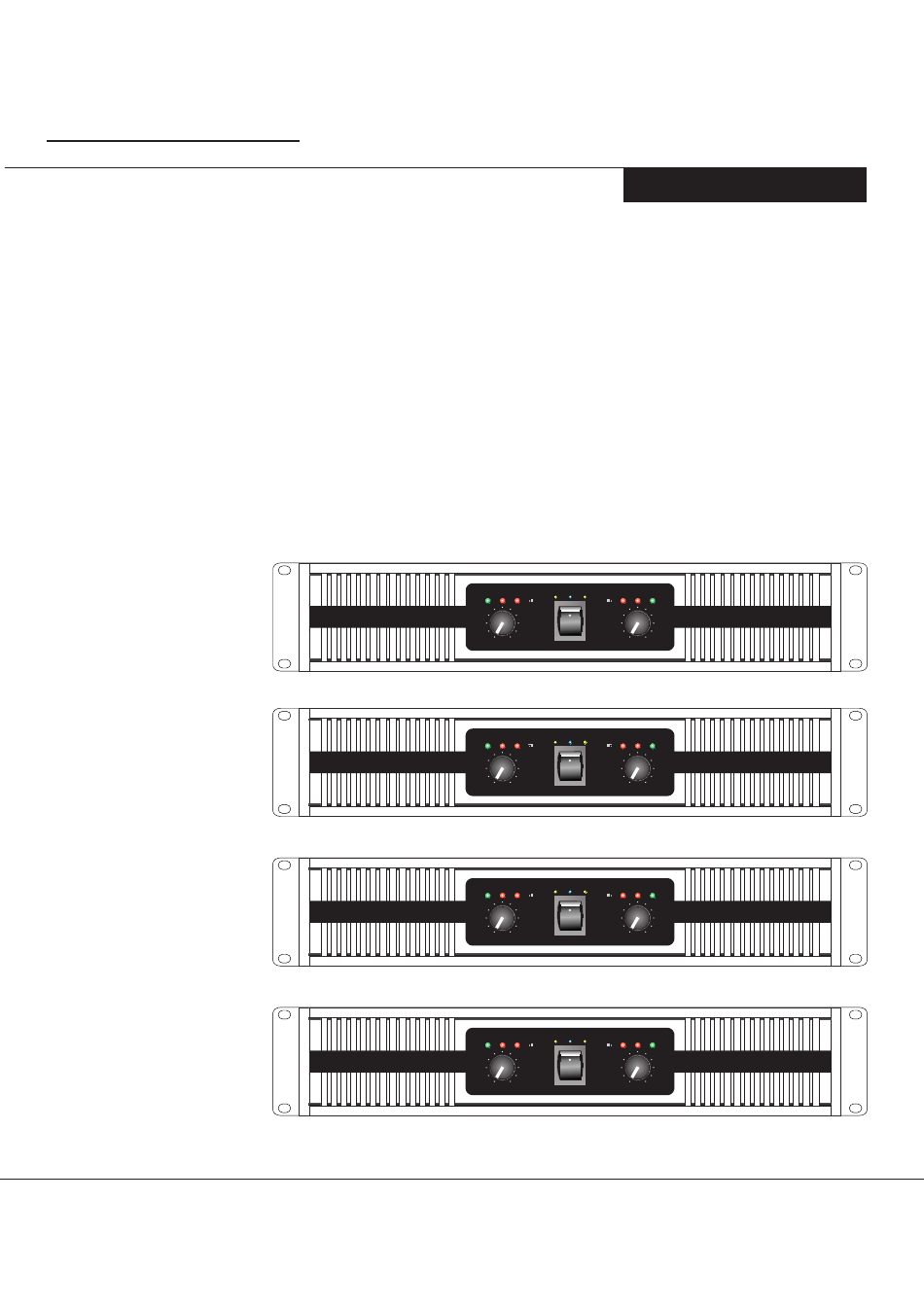

UNiK A Professional Power Amplif iers NP-SERIES PROFESSIONAL POWER AMPLIFIERS NP-3000 NP-4500 NP-6000 NP-8000 Bridge Stereo Parallel Clip Prot Limiter Limiter Prot Clip UNiK A N P - 3 0 0 0 Professional Power Amplifier Channel A Power Channel B Bridge Stereo Parallel...
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES Bridge Parallel Stereo Clip Prot Limiter Limiter Prot Clip UNiK A N P - 8 0 0 0 Professional Power Amplifier Channel A Power Channel B 1.POWER SWITCH 9.CLIP INDICATOR LED (CHANNEL A) 2.STEREO INDICATOR 10.CLIP INDICATOR LED (CHANNEL B) 3.BRIDGE INDICATOR LED 11.PROTECT INDICATOR LED (CHANNEL A)
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES Inputs Two input connectors, XLR jack and 6.3mm(1/4") TRS jack for both balance/unbalance. Shield Cold Cold Shield Cold THRU Plug the signal source outputs into first amplifier's input, patch from the amplifier's thru jacks to the next amplifier's input, and so on, raising- chaining as many amplifier's as there is no exccessive level loss.
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES Input filter WHAT IT IS The low-frequency (LF) Filter rolls signals below either 30Hz or 50Hz. This improves bass performance by limiting sub-audio cone motion, making more power available for the speaker's rated frequency range. The filter settings for each channel are controlled individual through the DIP switch settings shown.
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES Bridge mono mode WHAT IT IS Bridged mono combines the power of both amp channels channel into one speaker, resulting in twice the voltage swing, four times the peak power, and approximately three times the sustained power of a single channel.
UNiK A PROFESSIONAL POWER AMPLIFIERS NP-SERIES STEREO MODE This is the "normal" way of using the amplifier, in which each channel is fully independent. Separate signals connect at the inputs, ithe gain knobs control their respective channels, and separate speakers connect to each output.
