Stacking the Concert Series

5.2 STACkING A kh2 CLUSTER

These step-by-step instructions explain how to stack a cluster composed KH2 units. Please note that
you will need the K-HCBASE2 accessory to stack the cluster. The K-HCBASE2 is very similar to the
K-HCBASE but features holes with a different diameter to insert smaller pins.

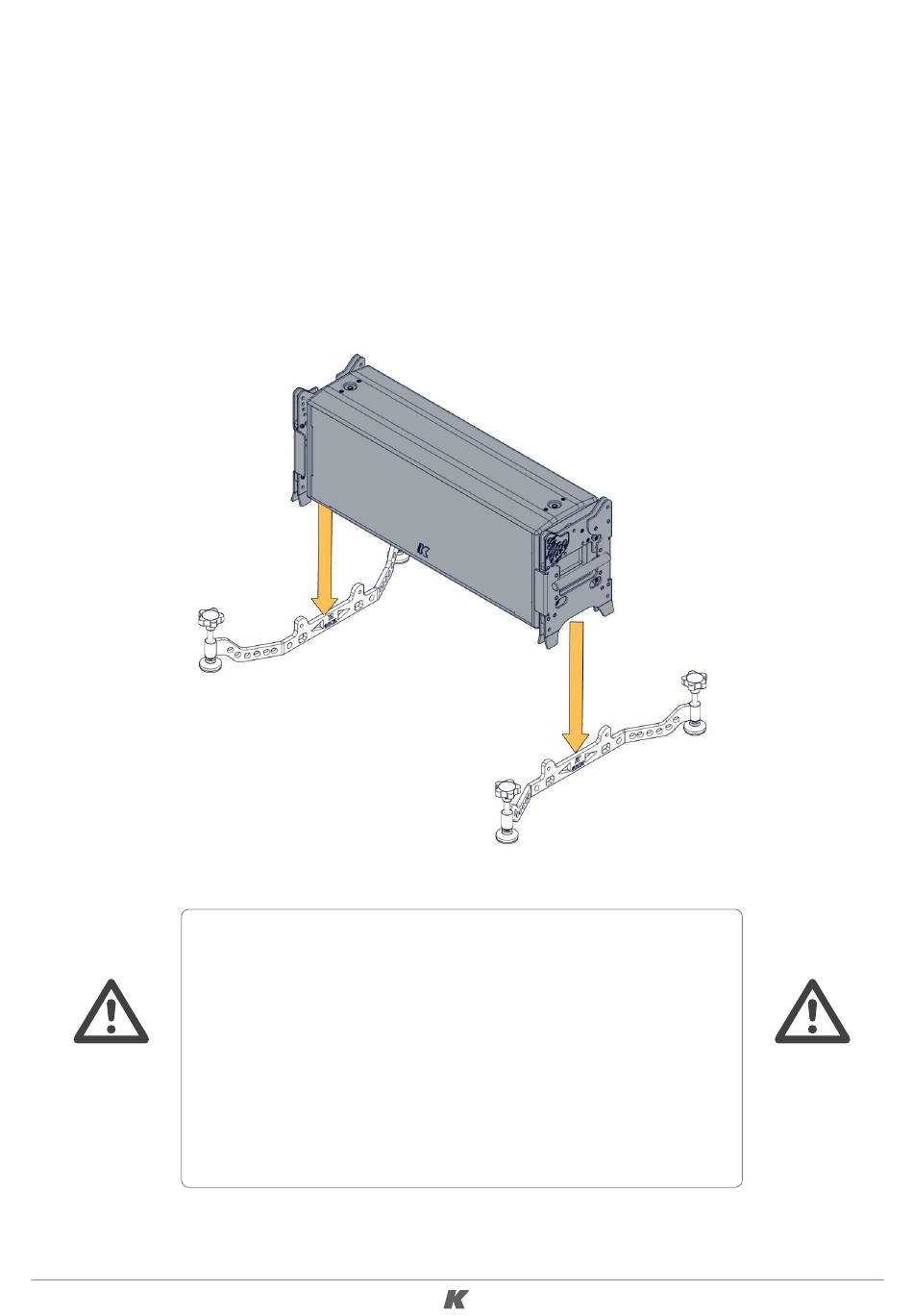

1. Position the base on a flat surface and position the first KH2 unit as shown in the picture below.
• Do not ground stack a cluster on uneven ground or platform.
• Do not gound stack more than 6 KH2.
• Always check the stability of the system. When stacking
If the system is ground stacked on a structure, platform or
stage always check that it can support the total weight of
the system.
more than four KH2, always secure the base to a stable
surface with chains, ropes or any other certified anchoring
systems.
