VORSICHT
Quetschgefährdung!
Beim Anschließen der Rundschalteinheiten
muss die Druckluftversorgung ausgeschaltet
und gegen Einschalten gesichert sein.
Die Rundschalteinheiten nach den fol-
ƒ
genden Schaltbildern (Standardschaltung
oder Not-Aus-Schaltung) anschließen.
Nach erfolgten Anschluss mittels Druck-
ƒ
luftzufuhr eine Funktionsüberprüfung
durchführen.

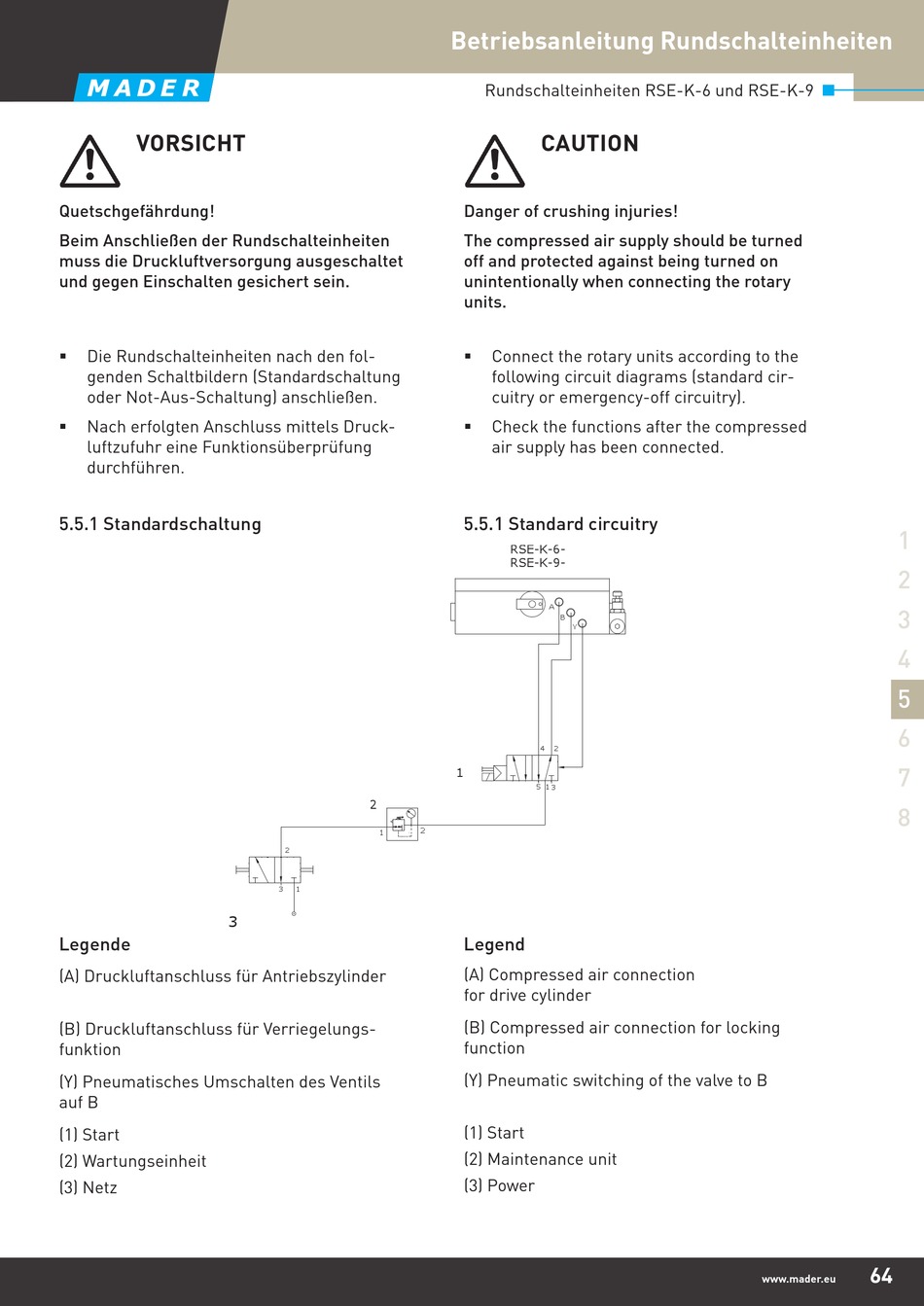

5.5.1 Standardschaltung
Legende
(A) Druckluftanschluss für Antriebszylinder
(B) Druckluftanschluss für Verriegelungs-
funktion
(Y) Pneumatisches Umschalten des Ventils
auf B
(1) Start
(2) Wartungseinheit
(3) Netz
Betriebsanleitung Rundschalteinheiten
Rundschalteinheiten RSE-K-6 und RSE-K-9
CAUTION
Danger of crushing injuries!
The compressed air supply should be turned
off and protected against being turned on
unintentionally when connecting the rotary
units.
Connect the rotary units according to the
ƒ
following circuit diagrams (standard cir-
cuitry or emergency-off circuitry).
Check the functions after the compressed
ƒ
air supply has been connected.
5.5.1 Standard circuitry
  
  
 
Legend
(A) Compressed air connection
for drive cylinder
(B) Compressed air connection for locking
function
(Y) Pneumatic switching of the valve to B
(1) Start
(2) Maintenance unit
(3) Power
1
1
2
2
3
3
4
4
5
5
5
6
7
8
