Ripmax mini Bossanova Instruction Manual page 4

Mini Bossanova - Instructions

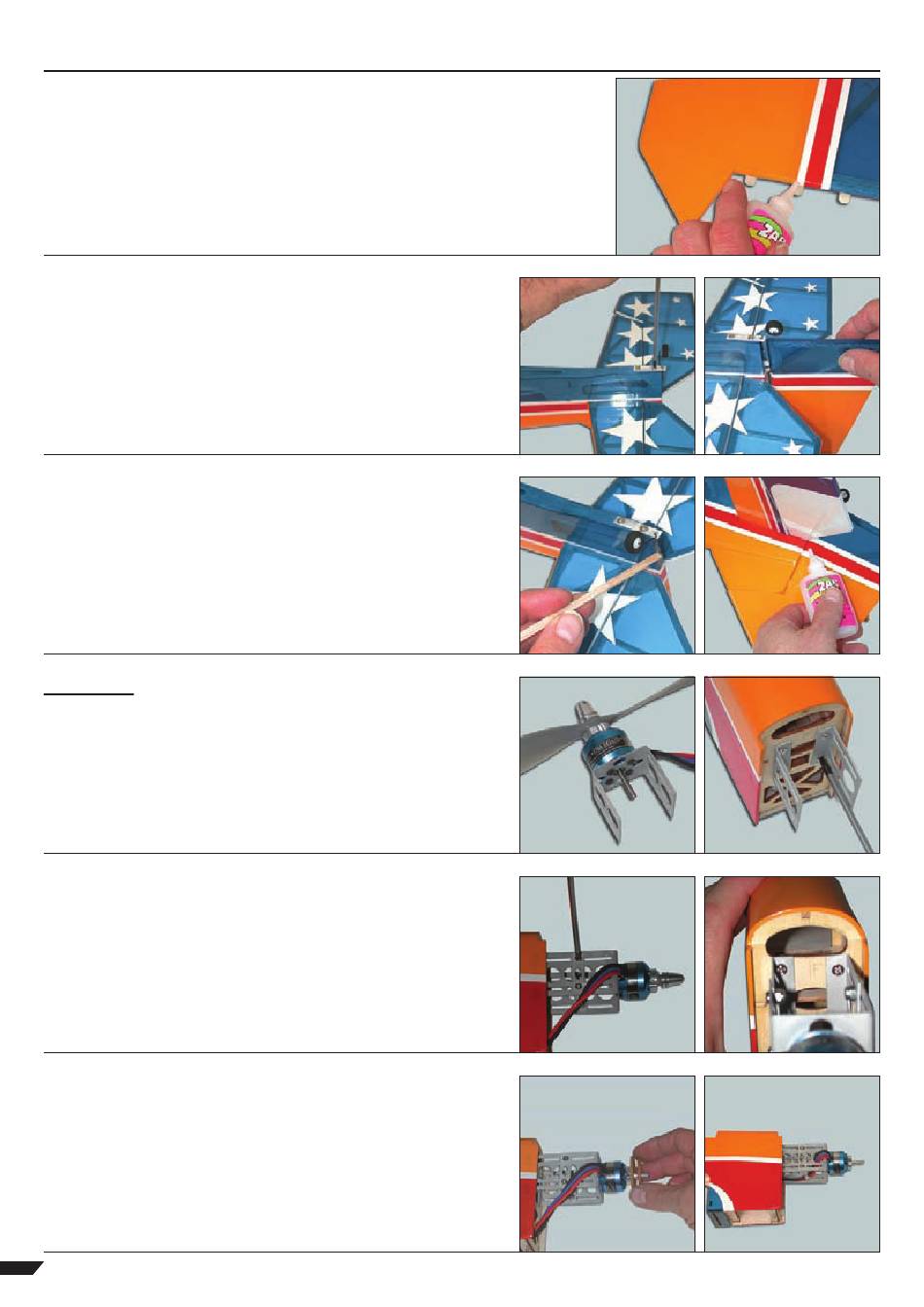

STEP 13
Locate the three rudder hinges and slide them half way into the rudder. Using thin
cyano, pour a couple of drops onto each hinge - above and below - ensuring the glue
soaks into the hinge and the surrounding wood.
STEP 14
Screw the pre-bent tailwheel assembly to the rear of the fuselage as
shown after pilot drilling holes for the mounting holes. Ensure that
the wire is aligned with the rear of the fuselage. Carefully drill a hole
in the bottom of the rudder to accept the bent end of the tailwheel
wire and test fit the rudder.
STEP 15
Apply a small quantity of epoxy onto the wire. Slide the rudder into
position, ensuring free movement left and right and a gap-free hinge
line. Now apply a couple of drops of thin cyano to each side of each
hinge taking care not to allow the adhesive to run through the gap
onto the other side of the model.
MOTOR
STEP 16
Locate the three part aluminium motor mount. Attach your choice of
brushless motor to the forward part of the mount as shown. Screw
the remaining two parts of the motor mount to the front bulkhead
as shown using the screws and captive nuts supplied.
STEP 17
Now screw the motor in position as shown using the screws and
nyloc nuts supplied with the mount. Note that the motor mount is
offset from the centre line as shown to give the correct amount of
right thrust.
STEP 18
Fit your choice of propeller adaptor on the motor and test fit the ply
spinner rings over the adaptor. Thread the motor wires through the
mount and front bulkhead as shown.
Page 3
