Digi ConnectPort X4 Quick Start Manual

Quick Start Guide

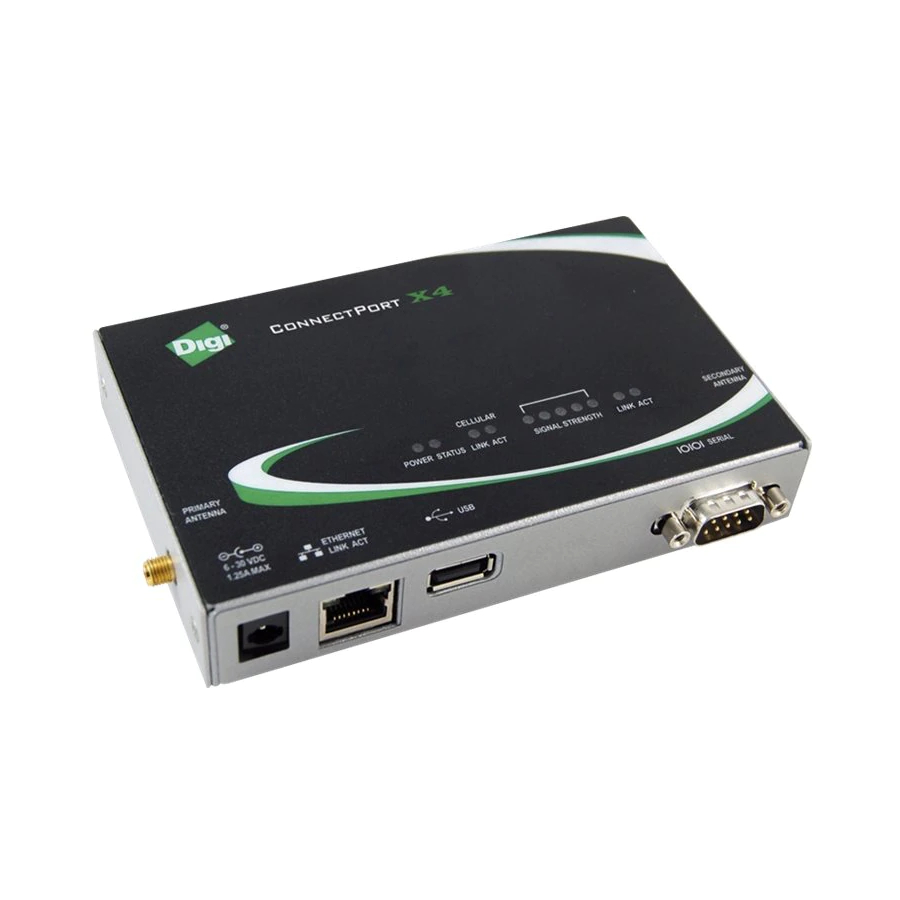

ConnectPort® X4 Ethernet
1

Verify your components

ConnectPort X4
Ethernet cable
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
Note A loose label sticker that includes the unique device password is included in the box. Retain this label sticker with your hardware records.
This default password will be needed if the device is factory reset and you want to access the web UI on the device or register the device with
Digi Remote Manager®. If the device was already registered with Remote Manager at the time of the factory reset, you do not need the unique
password to access the device in Remote Manager.
2

Connect the hardware

Connect the hardware accessories as shown.
1. Connect the XBee antenna.
2. Connect the Ethernet cable to the device. You can connect the other end to an Ethernet network.
3. Connect the power supply to the device. Rotate the connected power supply 90 degrees to lock it in place.
4. Connect the power supply to the power cord.
© 2020 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
product support at www.digi.com/support/ConnectPortX4. Or connect to the online
documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
Documentation Feedback: To provide feedback on this documentation, send your comments
to techcomm@digi.com.
XBee antenna
Power supply
Power cord
X4-xxx-xxx-A models only
