INSTALLATION

Screen Size

Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
Diagonal
30.4/12
60.8/24
91.2/36
121.5/48
151.9/60
182.3/72
213.1/84
243.1/96
273.5108
303.9/120

Connecting to Various Equipment

HDTV description
The projector is capable of displaying various High Definition TV display modes. Some
of these sources are:
• Digital-VHS (D-VHS) player
• Satellite Dish HDTV receiver
Most of these sources will provide an analog component video output, a standard VGA
output, or a YP
The projector is capable of accepting HDTV data through a YP
HDTV cable that came with your projector to display HDTV images.
The following standards are supported in the HDTV function:
• 480i
• 720p
Please refer to "Menu System" on page 14 for information on the HDTV OSD
selections.
10 Installation

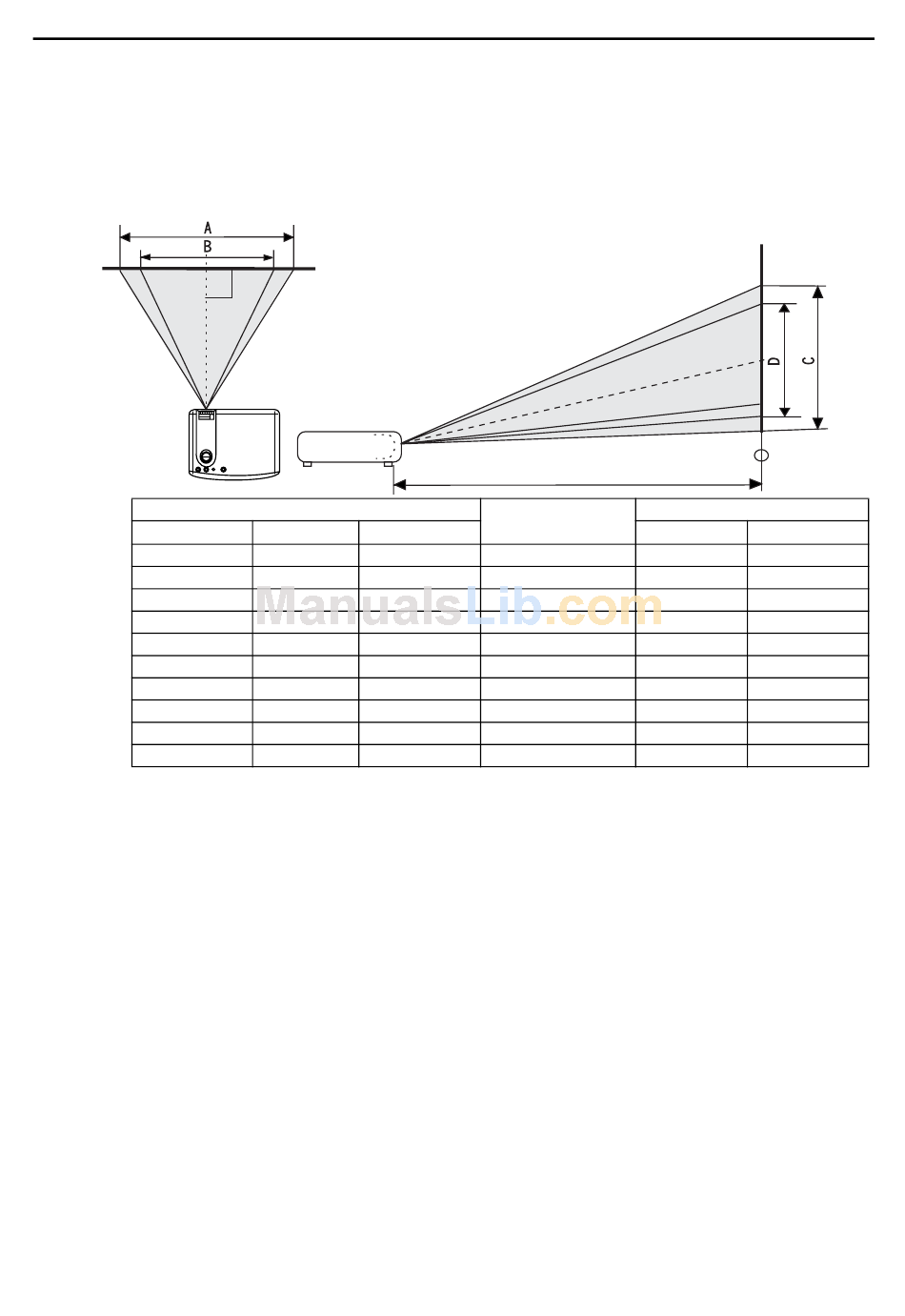

Screen Size (Max.) cm/in
